Removal Procedure

  1. Remove the left front seat. Refer to SEAT REPLACEMENT -- BUCKET .
  2. Remove the front seat cushion inner trim panel. Refer to SEAT CUSHION INNER TRIM PANEL REPLACEMENT -- FRONT .
  3. Remove the nut from the seat belt buckle anchor stud.
  4. Remove the electrical connector from the seat belt buckle.

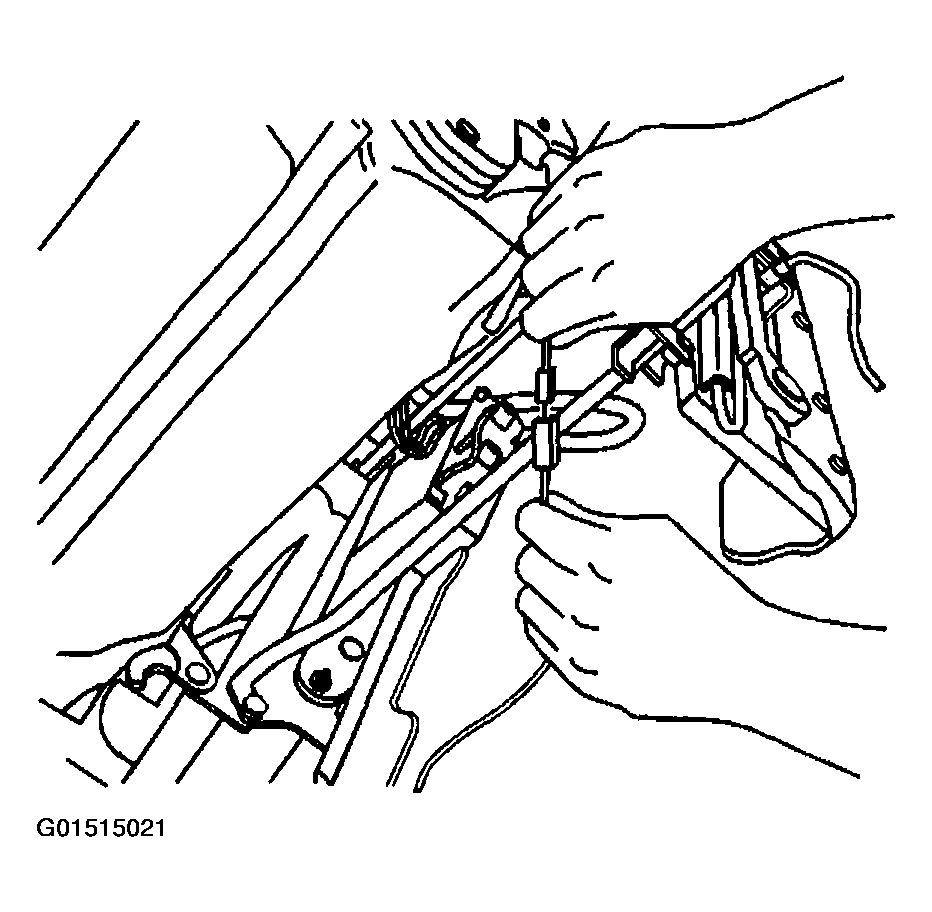

    Fig 1: Removing Procedure Of Seat Belt Buckle - Left Front (2 Of 3)
    G01515021Courtesy of GENERAL MOTORS CORP.
  5. Remove the seat belt buckle from the left front seat.

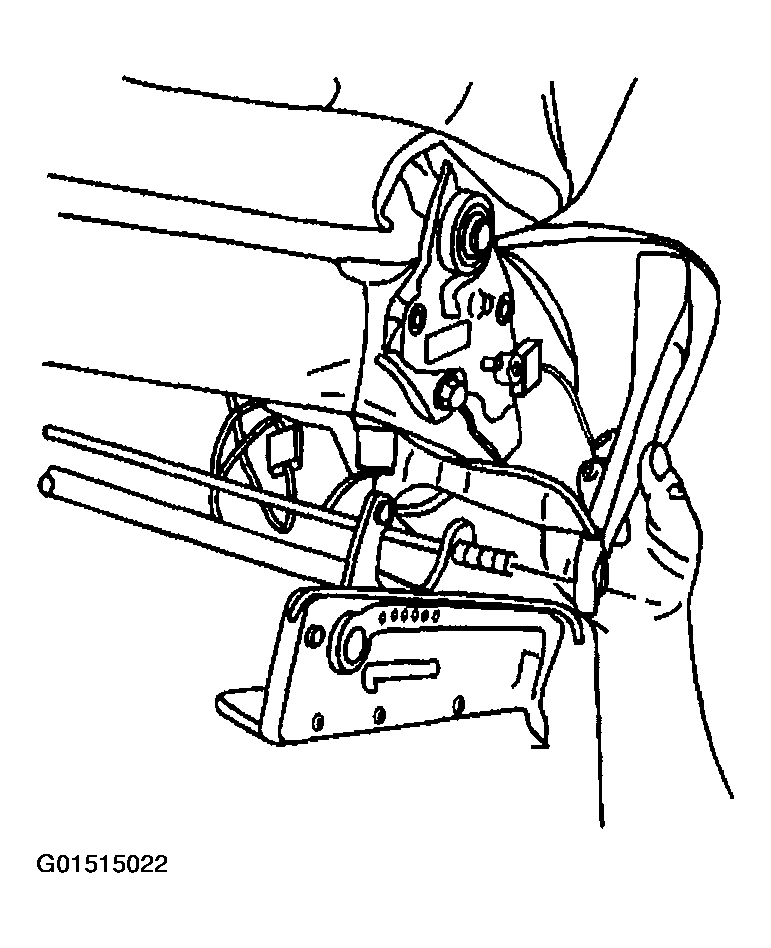

    Fig 2: Removing Procedure Of Seat Belt Buckle - Left Front (3 Of 3)
    G01515022Courtesy of GENERAL MOTORS CORP.
