Installation Procedure

  1. Insert the shift lever (1) into the shift lever housing.
  2. Install the shift lever retaining screw (3).

    Tighten  Tighten the screw to 6.67 N.m (1.5 lb ft).

  3. Position the shift lever boot (2).

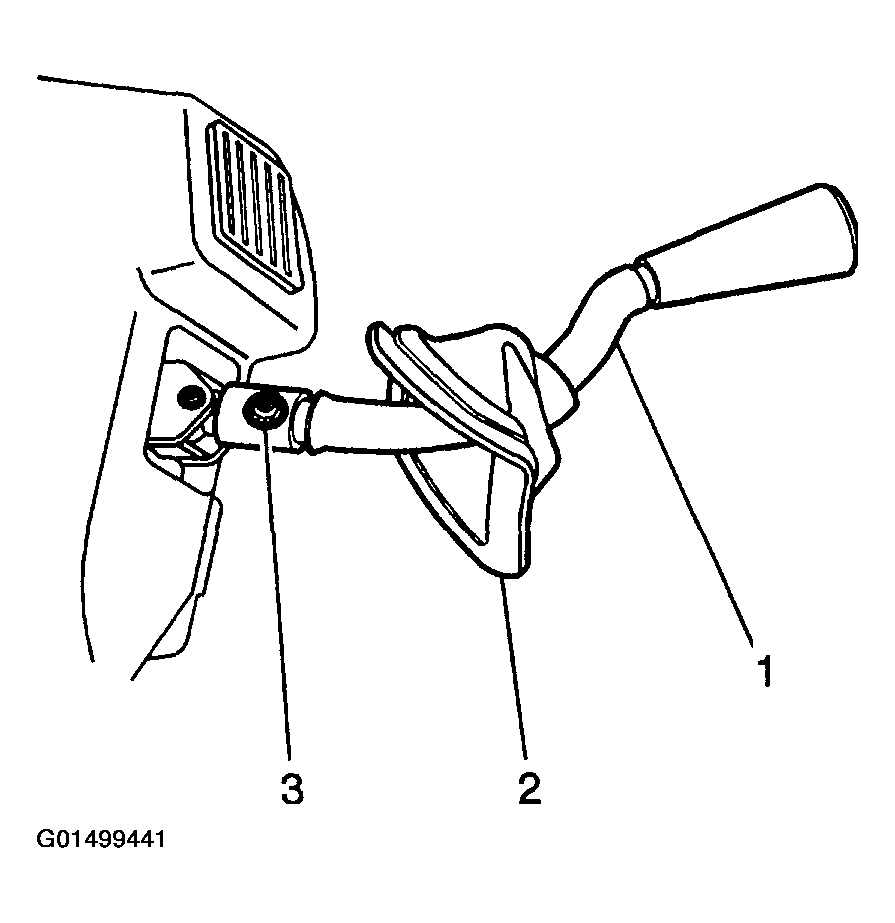

    Fig 1: Installing Shift Lever
    G01499441Courtesy of GENERAL MOTORS CORP.
