Installation Procedure

  1. Install the tilt lever.
  2. Install the retaining bolt to the tilt lever.

    Tighten  Tighten the bolt to 10 N.m (89 Ib. in).

  3. Install the tilt lever spring.
  4. Install the lower trim cover. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  5. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .

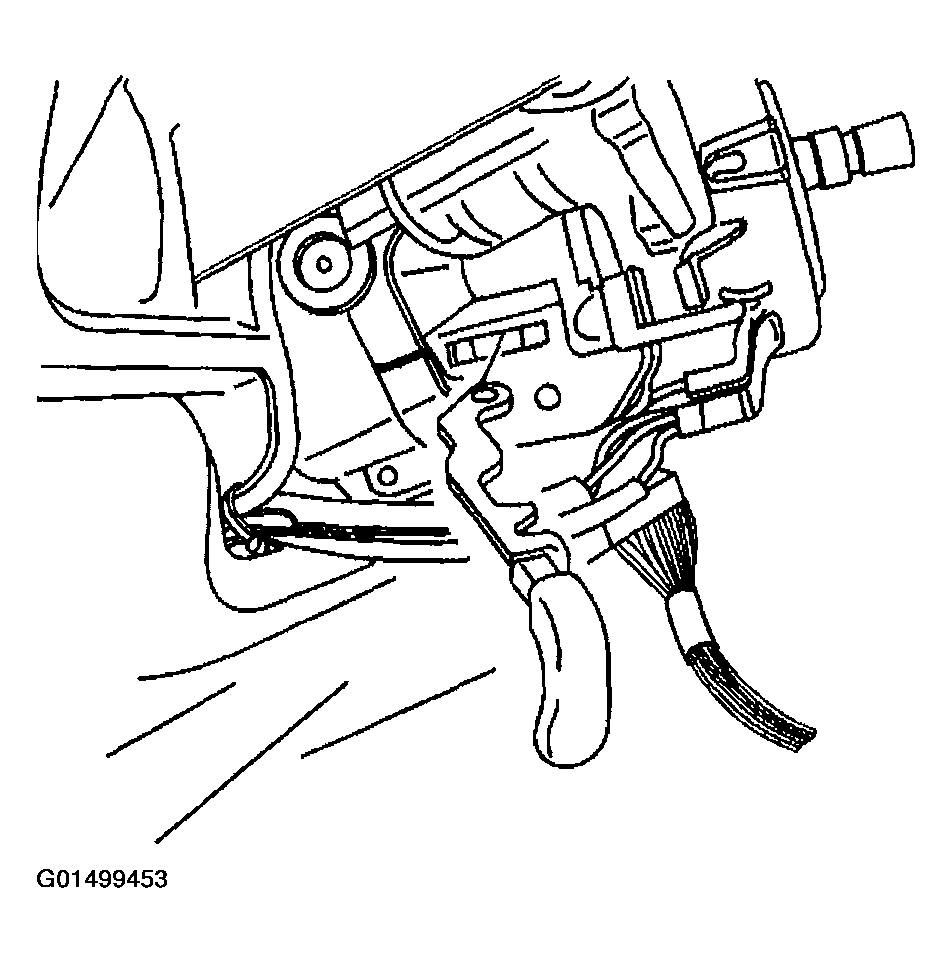

    Fig 1: Installing Tilt Lever
    G01499453Courtesy of GENERAL MOTORS CORP.
