Installation Procedure

  1. Install the wire harness to the steering column.
  2. Replace all the tie straps (2).
  3. Connect all the electrical connectors.
  4. Install the steering column. Refer to STEERING COLUMN REPLACEMENT  .

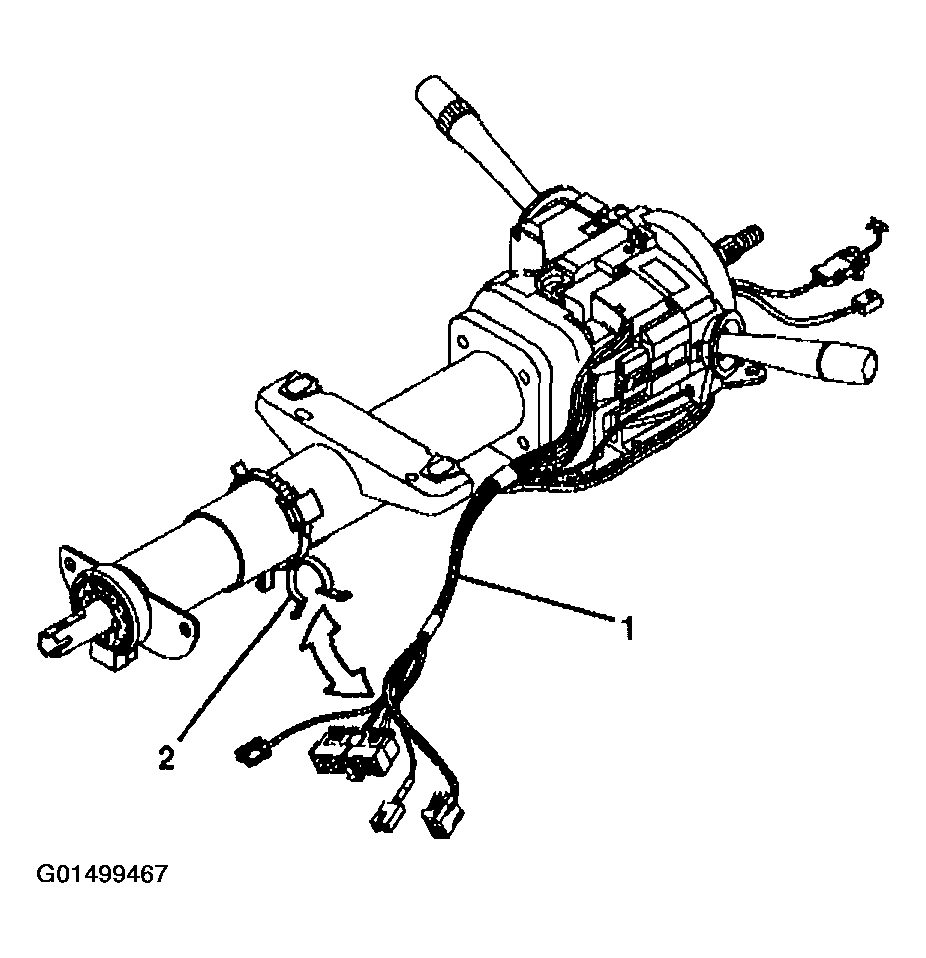

    Fig 1: Installing Wire Harness To Steering Column
    G01499467Courtesy of GENERAL MOTORS CORP.
