Removal Procedure

  1. Raise and support the vehicle.
  2. Remove the air compressor filter from the underbody rail. Refer to AUTOMATIC LEVEL CONTROL AIR COMPRESSOR AIR FILTER REPLACEMENT  .
  3. Remove the compressor bracket bolts.
  4. Remove the compressor bracket nuts.

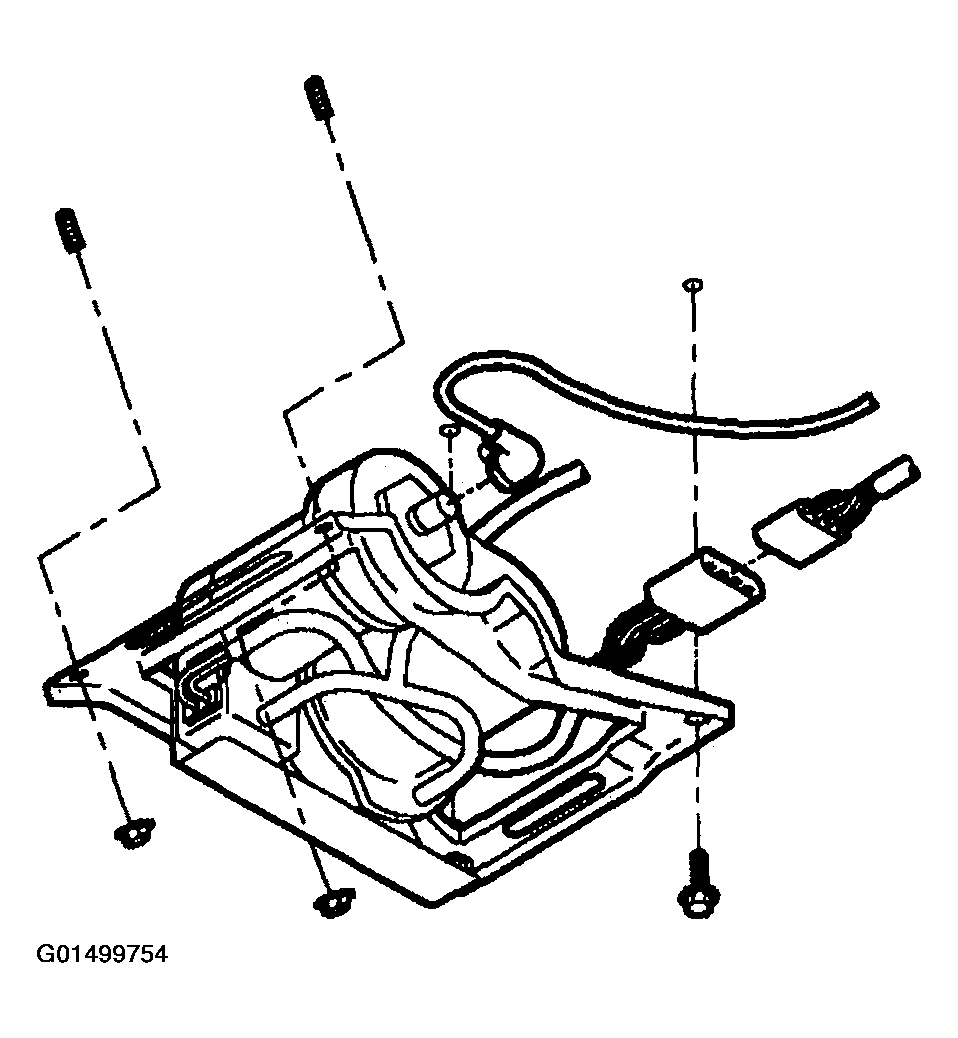

    Fig 1: Air Compressor Removing Procedure (1 Of 5)
    G01499754Courtesy of GENERAL MOTORS CORP.
  5. Remove the air tubes (1) from the inflator solenoid.

    Refer to INFLATOR SOLENOID REPLACEMENT  .

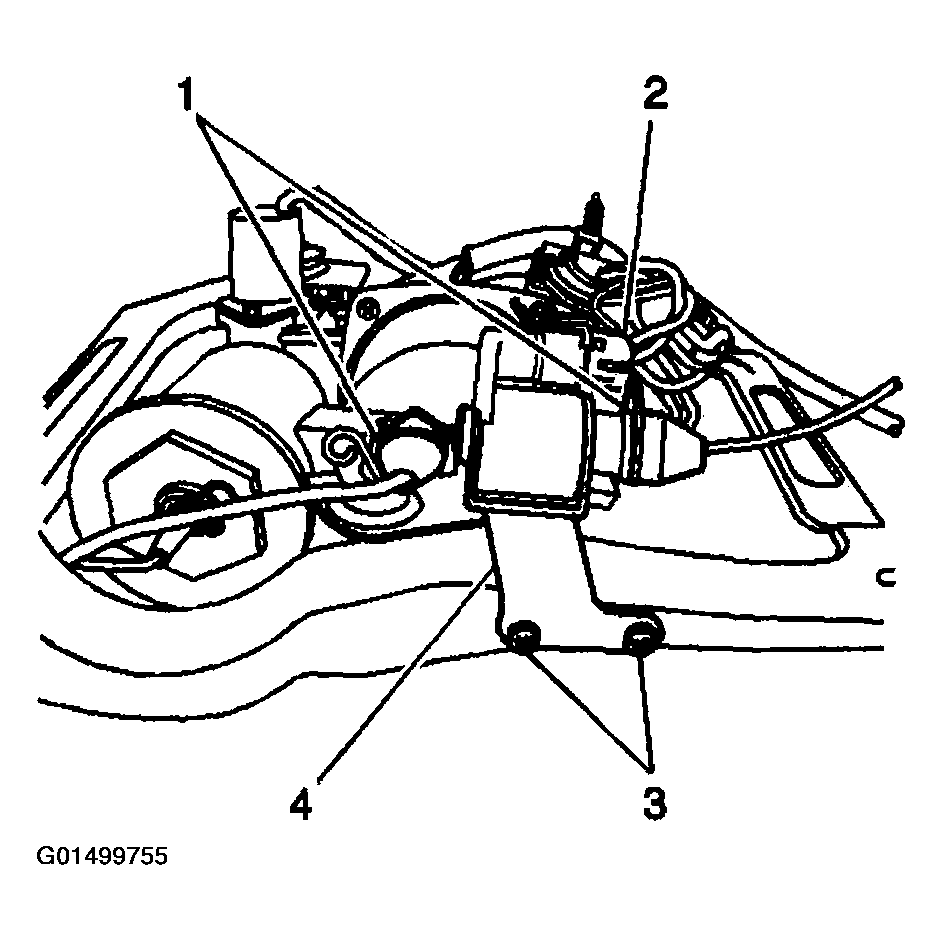

    Fig 2: Air Compressor Removing Procedure (2 Of 5)
    G01499755Courtesy of GENERAL MOTORS CORP.
  6. Disconnect the air compressor electrical connector.
  7. Remove the air compressor assembly from the vehicle.
  8. Remove the compressor wires from the connector.
  9. Remove the air dryer. Refer to AUTOMATIC LEVEL CONTROL AIR DRYER REPLACEMENT  .
    Fig 3: Air Compressor Removing Procedure (3 Of 5)
    G01499756Courtesy of GENERAL MOTORS CORP.
  10. Remove the air compressor bolts (1).
  11. Remove the air compressor from the air compressor assembly bracket.

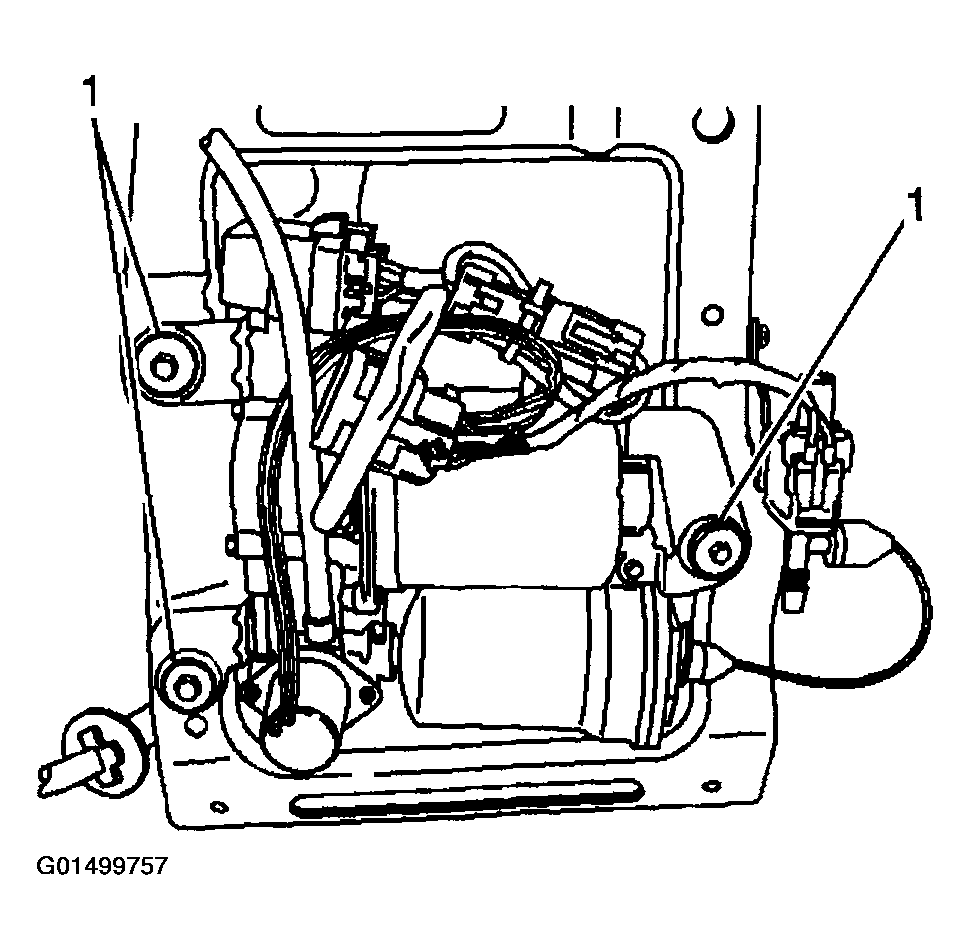

    Fig 4: Air Compressor Removing Procedure (4 Of 5)
    G01499757Courtesy of GENERAL MOTORS CORP.
  12. Remove the bolts (1) and bracket from the compressor motor.

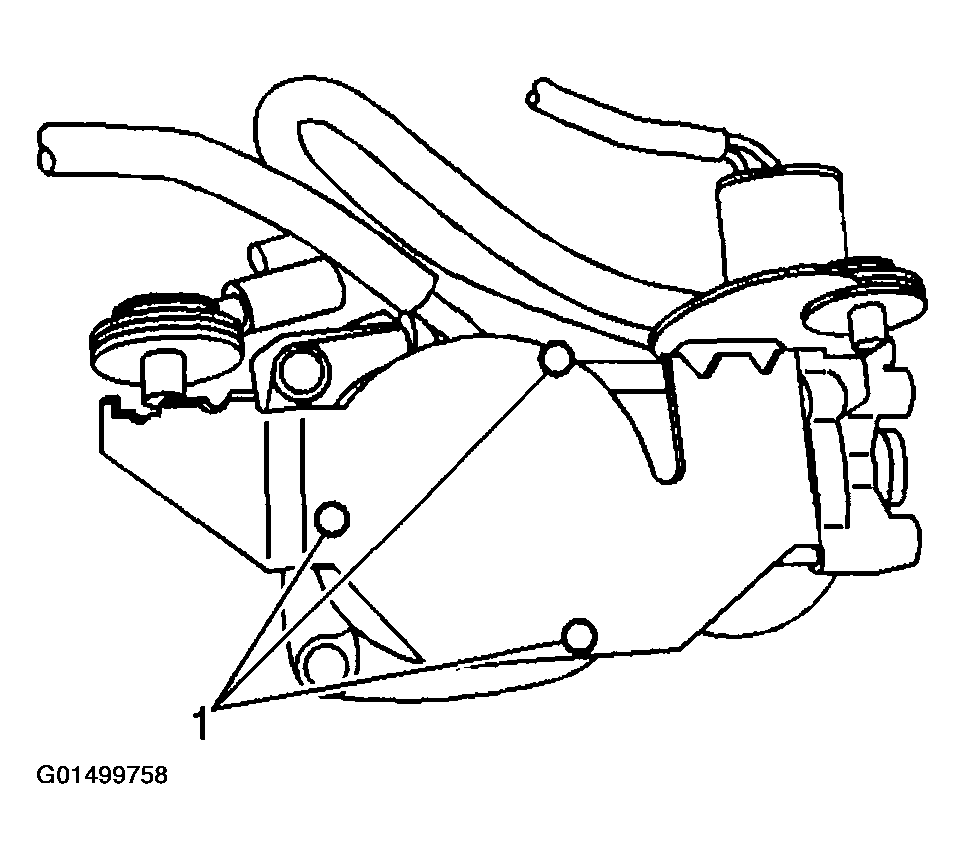

    Fig 5: Air Compressor Removing Procedure (5 Of 5)
    G01499758Courtesy of GENERAL MOTORS CORP.
