Disassembled Views

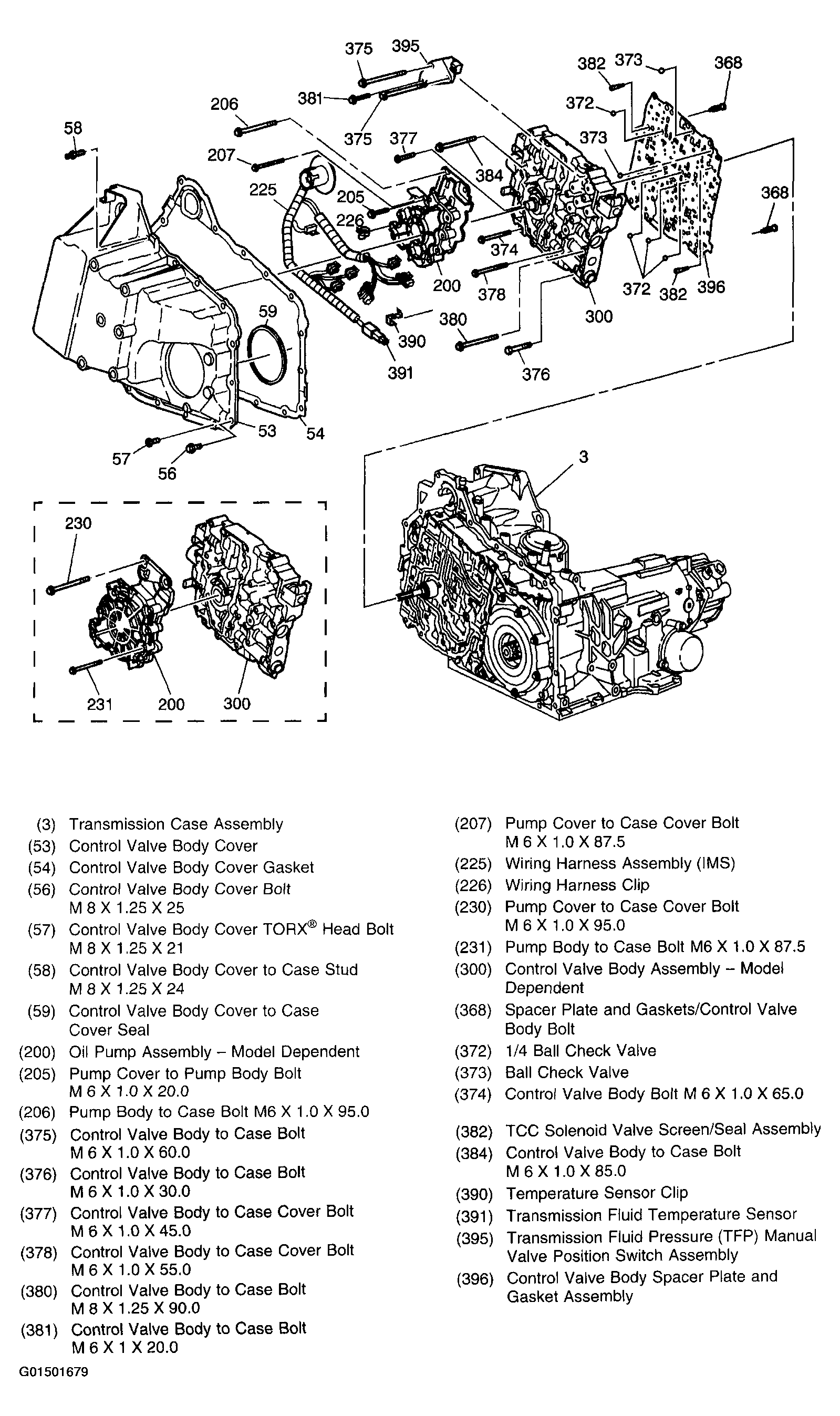

Fig 1: Disassembled View Of Case And Associated Parts (1 Of 4)
G01501679Courtesy of GENERAL MOTORS CORP.

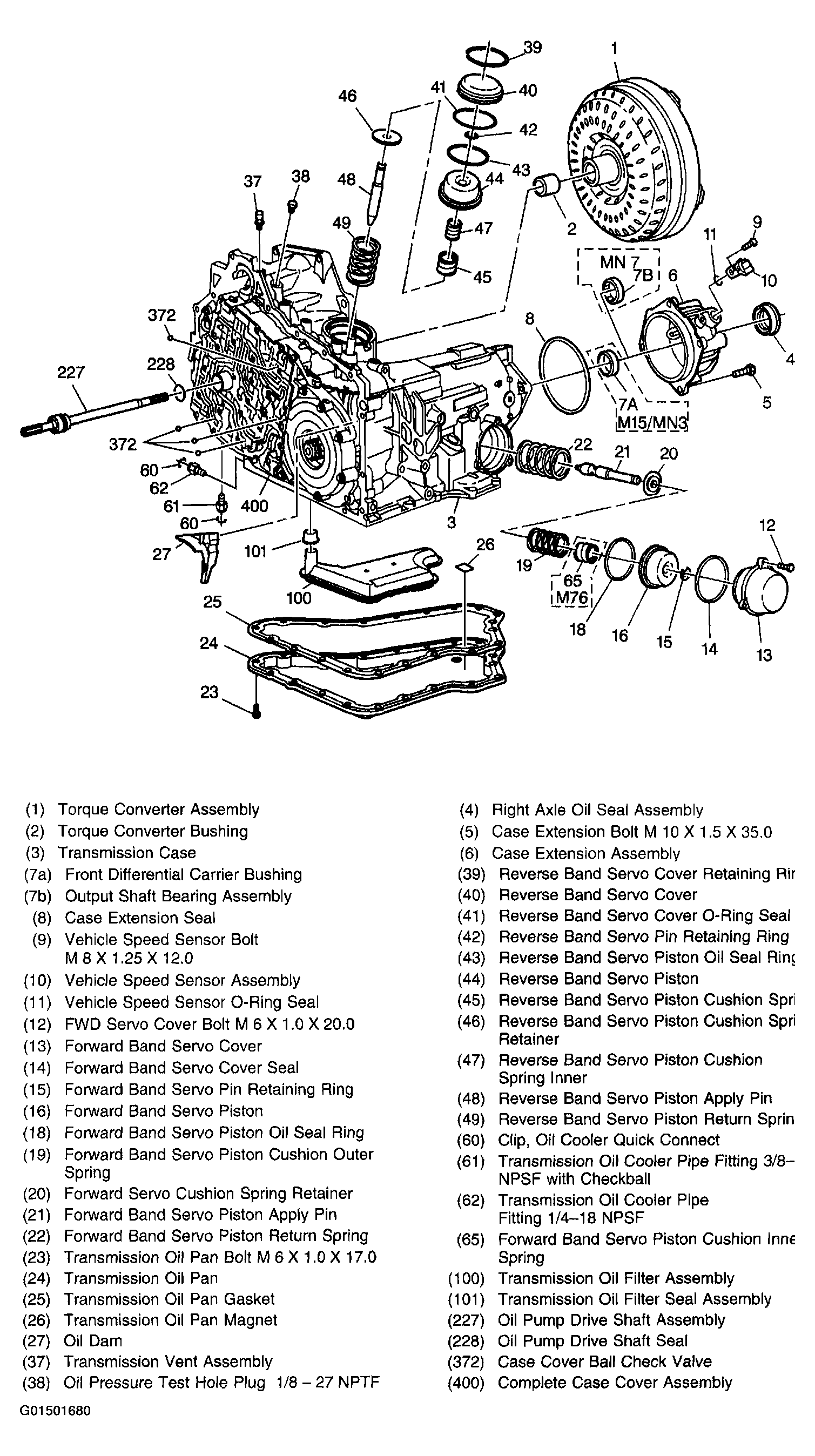

Fig 2: Disassembled View Of Case And Associated Parts (2 Of 4)
G01501680Courtesy of GENERAL MOTORS CORP.

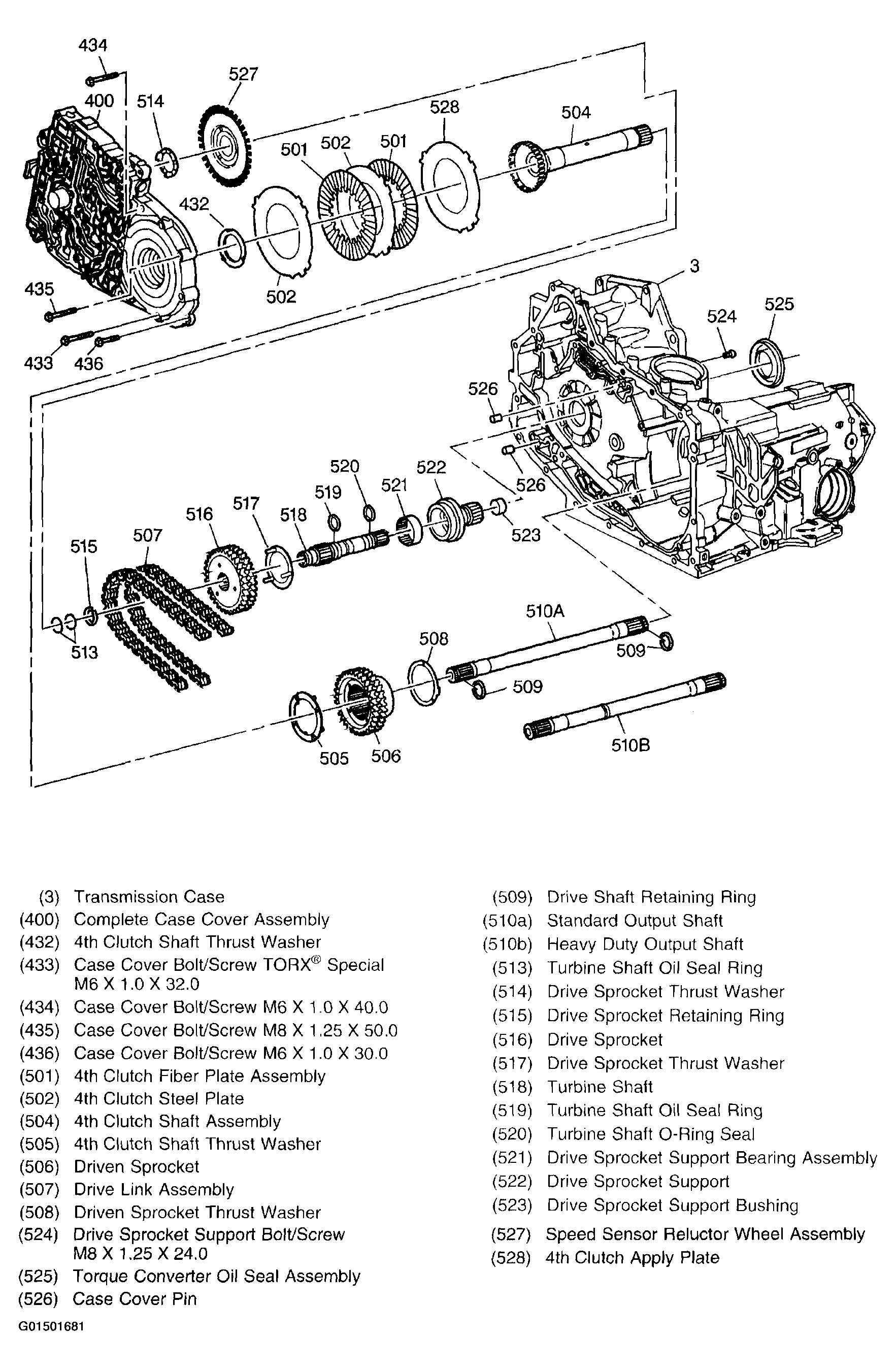

Fig 3: Disassembled View Of Case And Associated Parts (3 Of 4)
G01501681Courtesy of GENERAL MOTORS CORP.

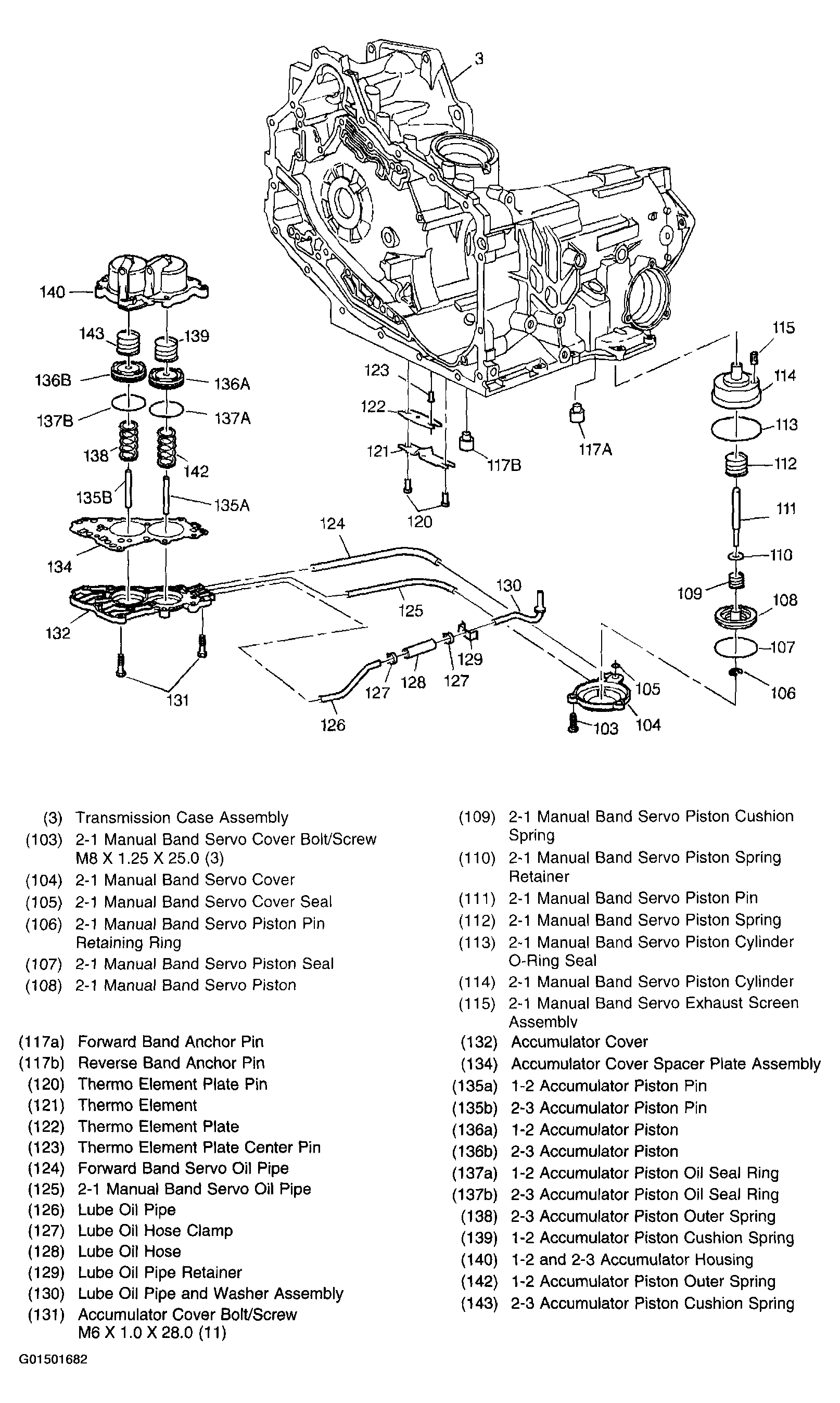

Fig 4: Disassembled View Of Case And Associated Parts (4 Of 4)
G01501682Courtesy of GENERAL MOTORS CORP.

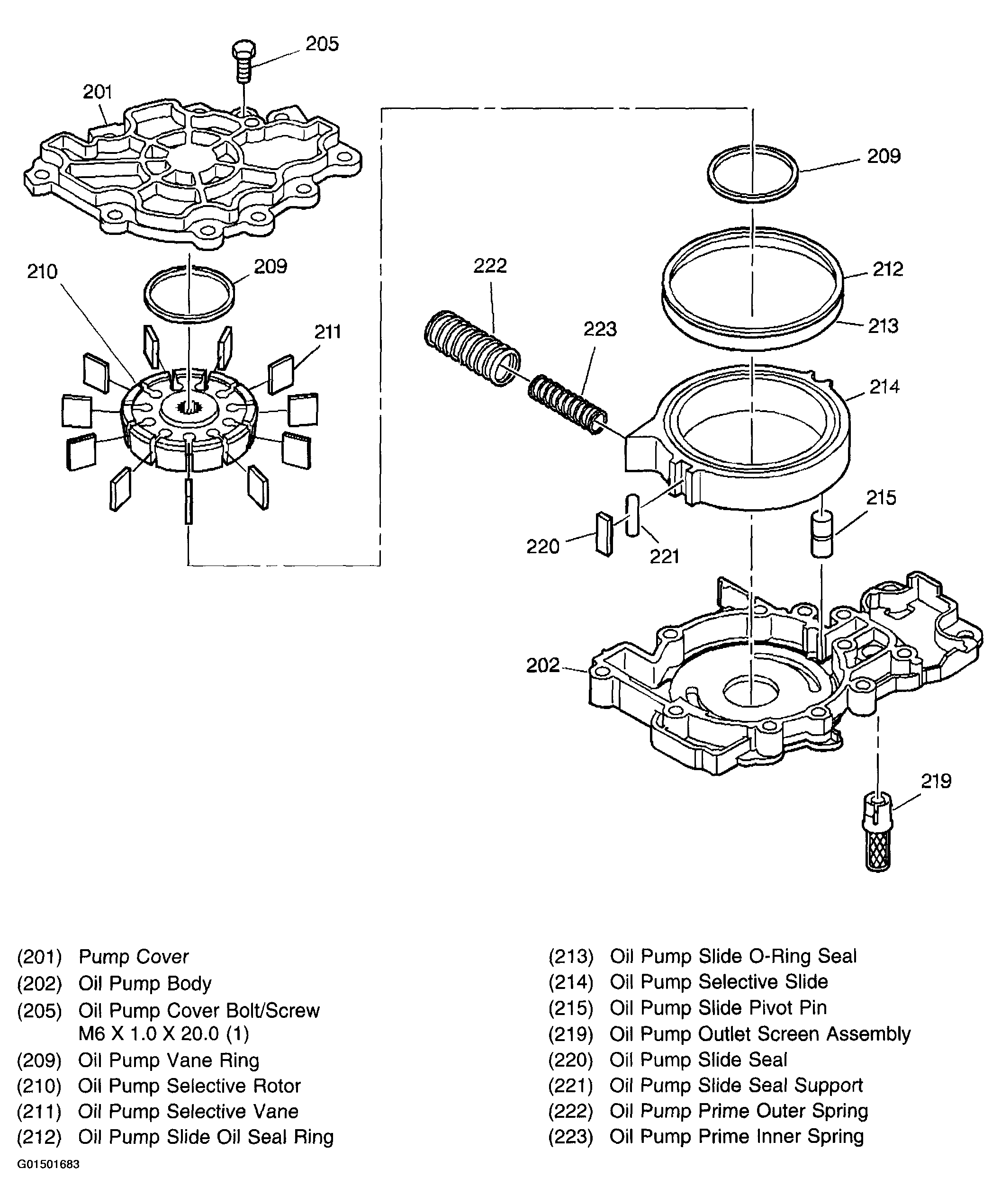

Fig 5: Disassembled View Of Oil Pump Assembly - 2 Piece Pump
G01501683Courtesy of GENERAL MOTORS CORP.

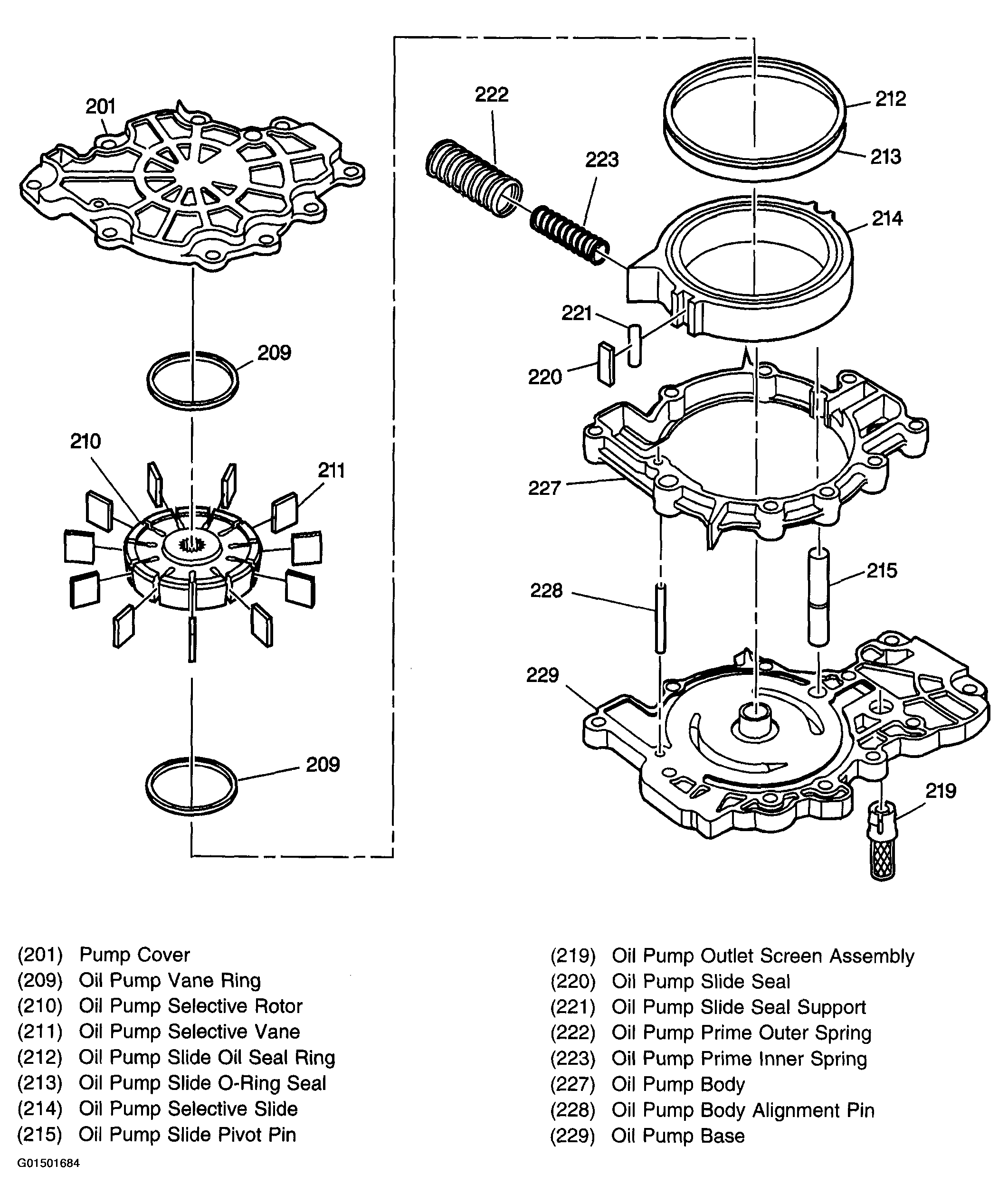

Fig 6: Disassembled View Of Oil Pump Assembly - 3 Piece Pump
G01501684Courtesy of GENERAL MOTORS CORP.

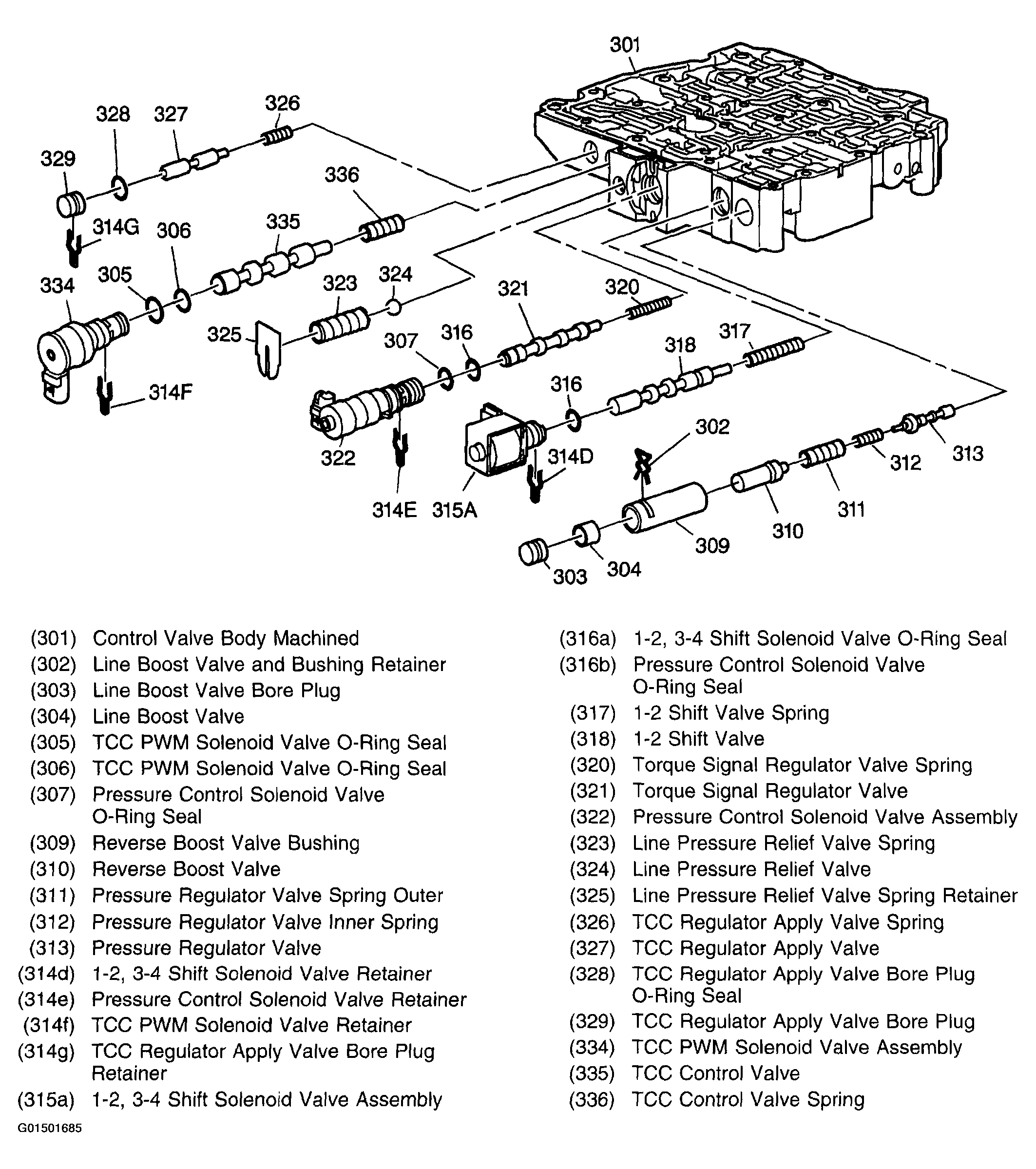

Fig 7: Exploded View Of Control Valve Body Assembly (1 of 2)
G01501685Courtesy of GENERAL MOTORS CORP.

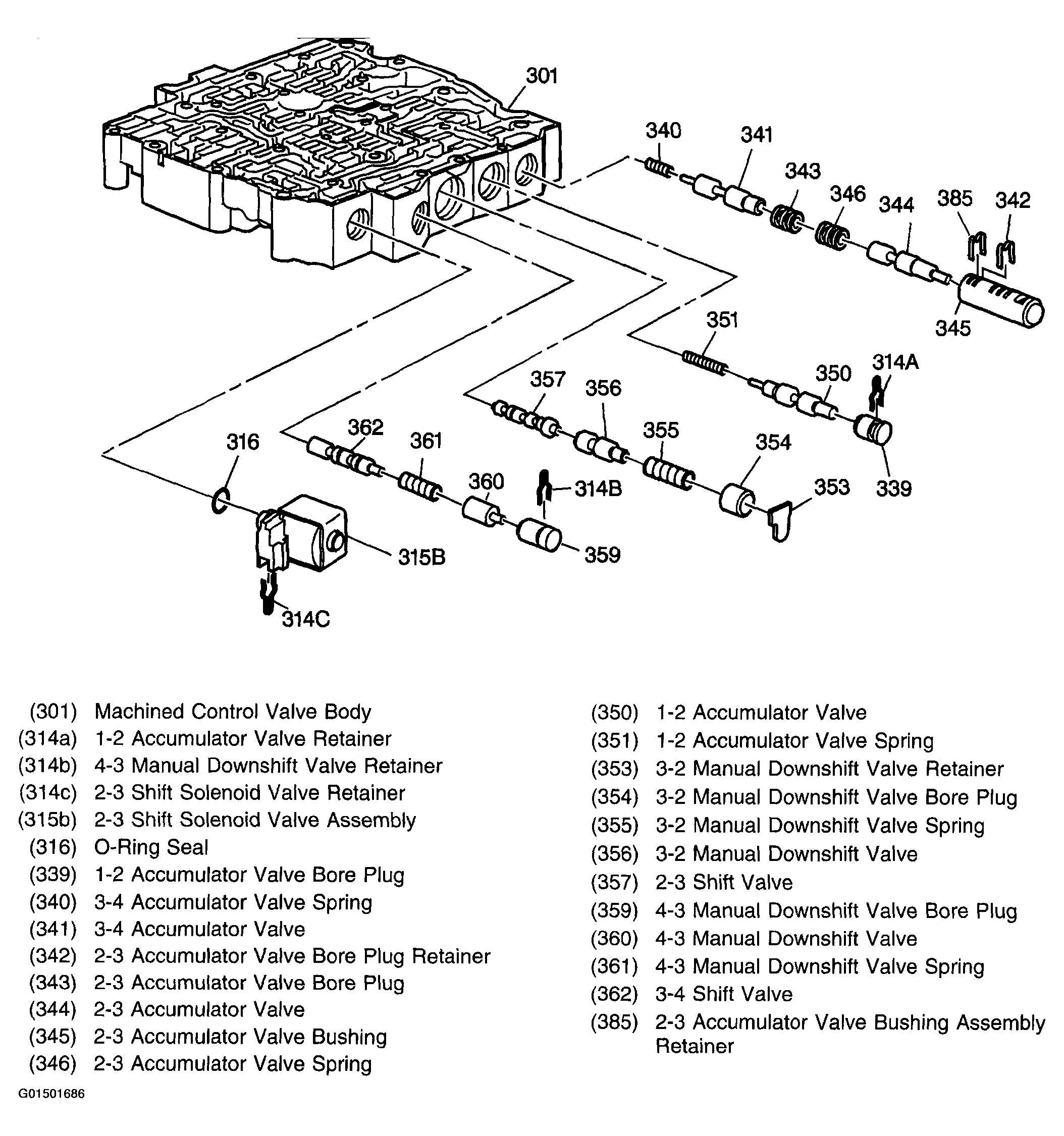

Fig 8: Exploded View Of Control Valve Body Assembly (2 of 2)
G01501686Courtesy of GENERAL MOTORS CORP.

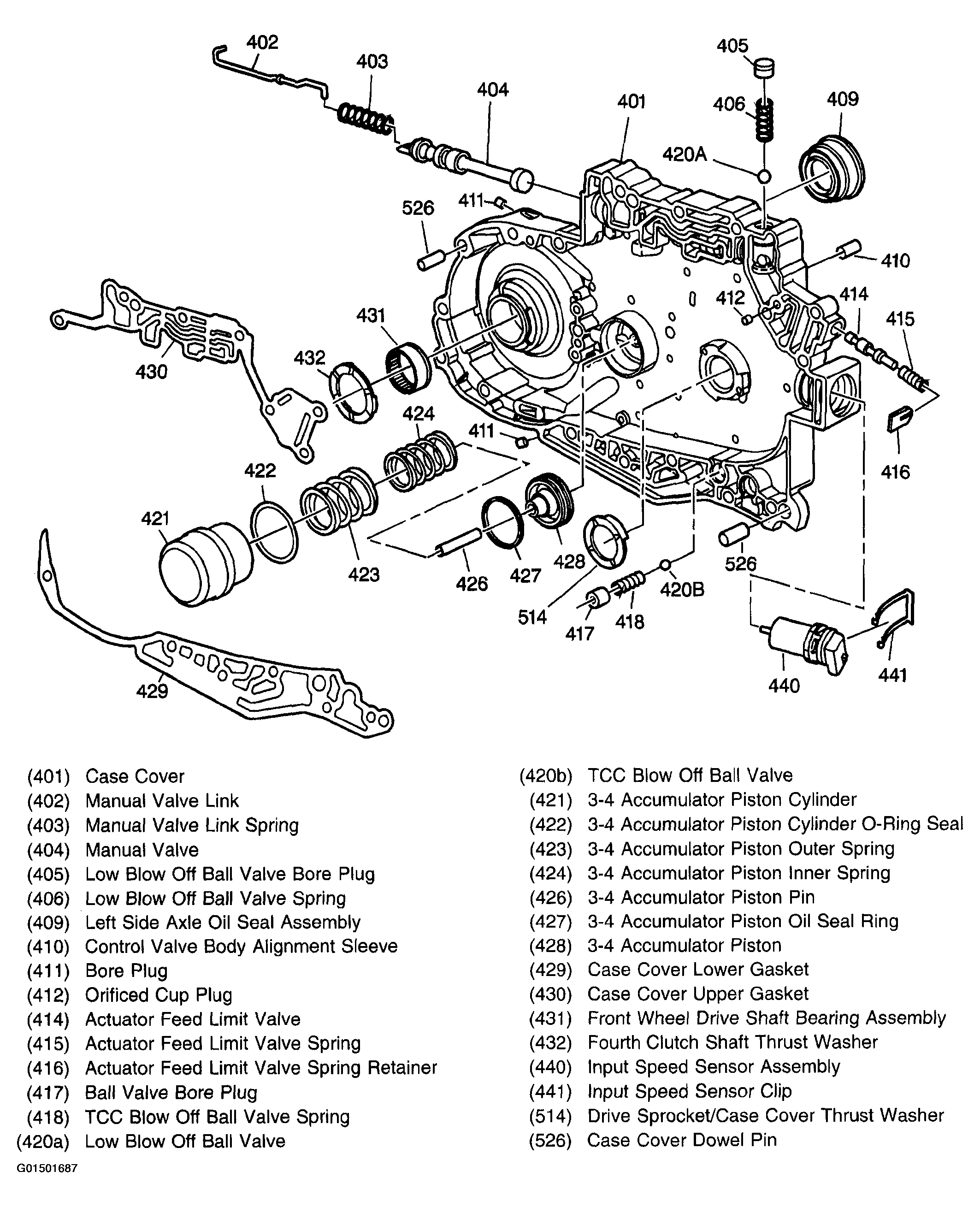

Fig 9: Exploded View Of Case Cover Assembly
G01501687Courtesy of GENERAL MOTORS CORP.

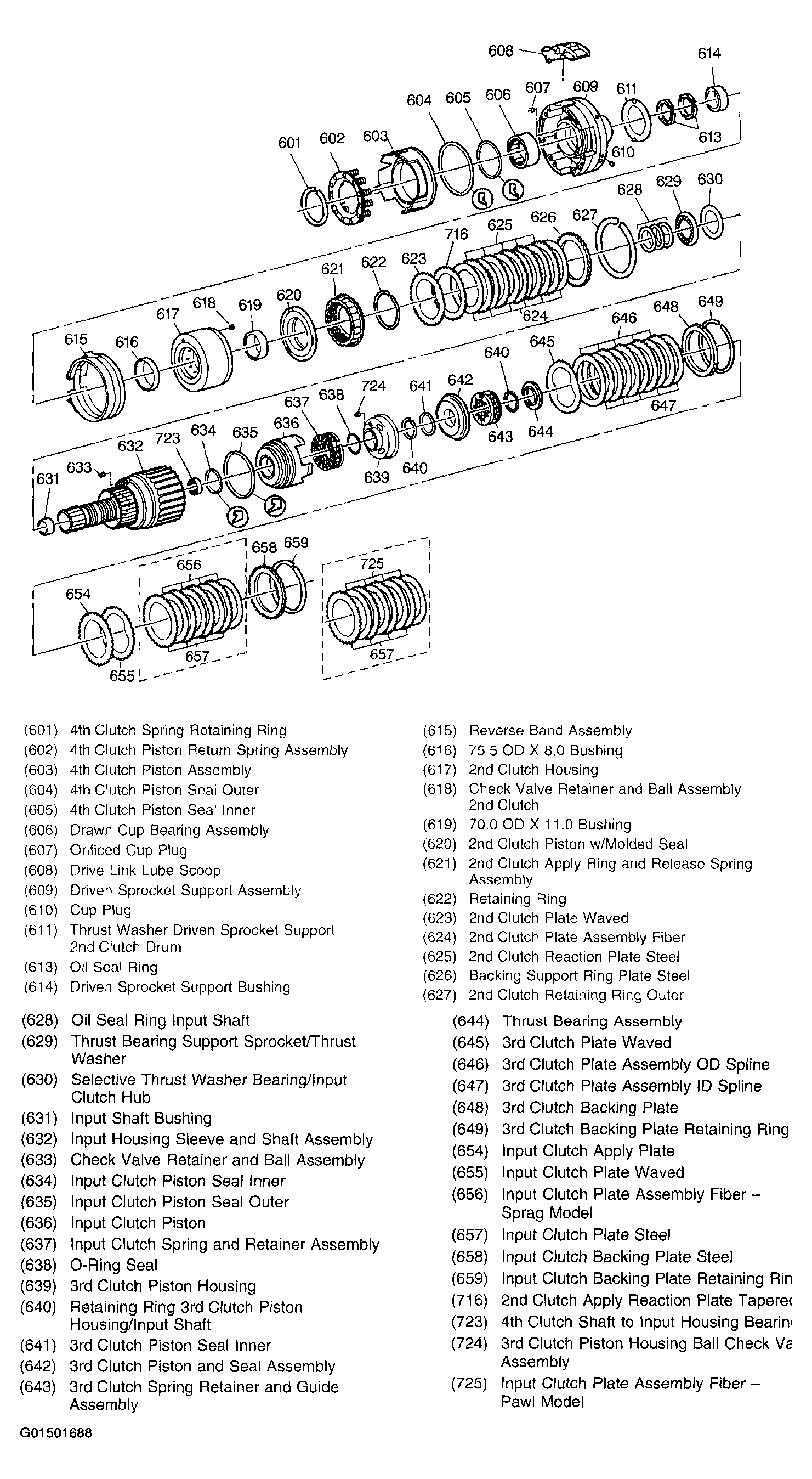

Fig 10: Exploded View Of Internal Components (1 Of 2)
G01501688Courtesy of GENERAL MOTORS CORP.

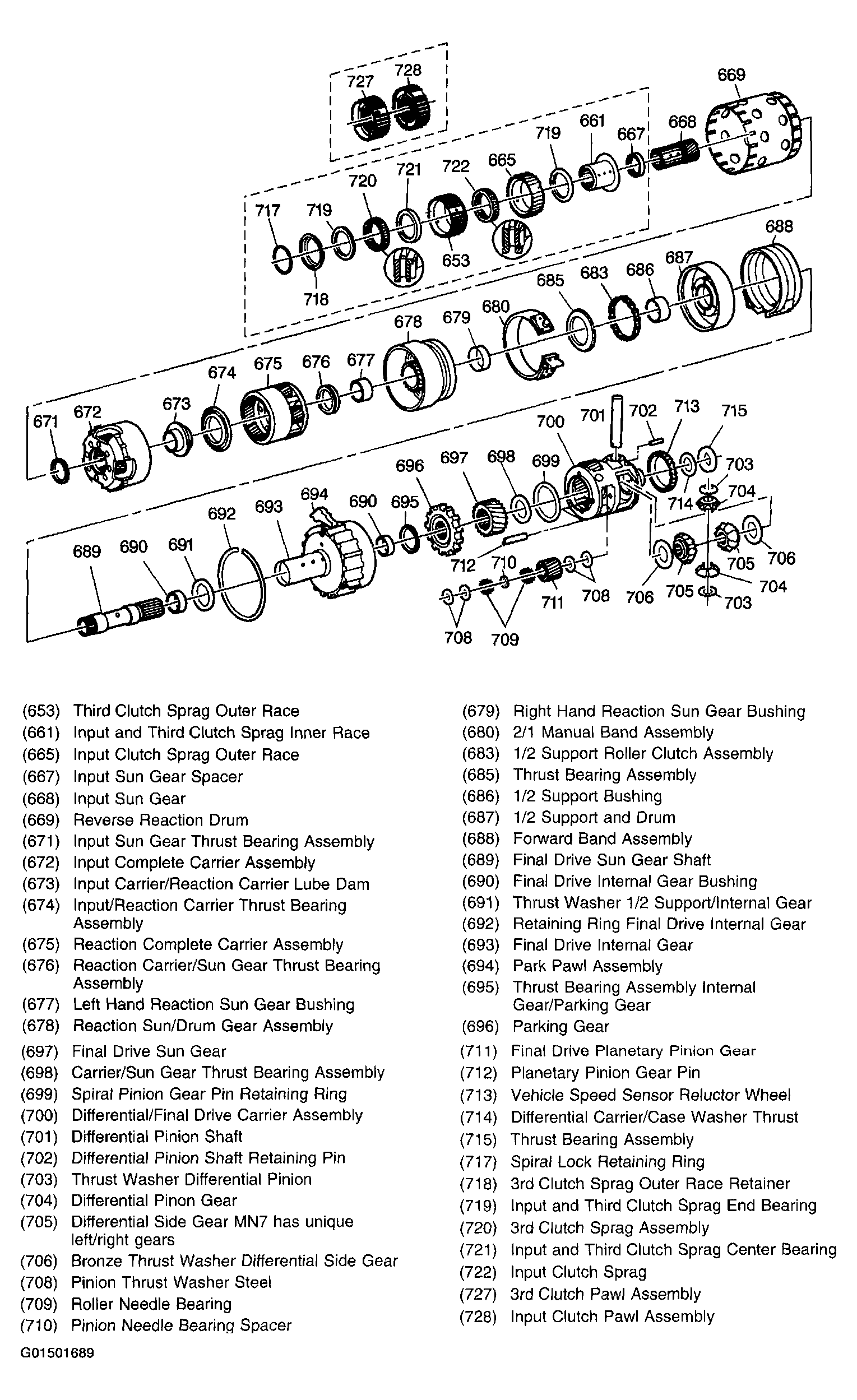

Fig 11: Exploded View Of Internal Components (2 Of 2)
G01501689Courtesy of GENERAL MOTORS CORP.

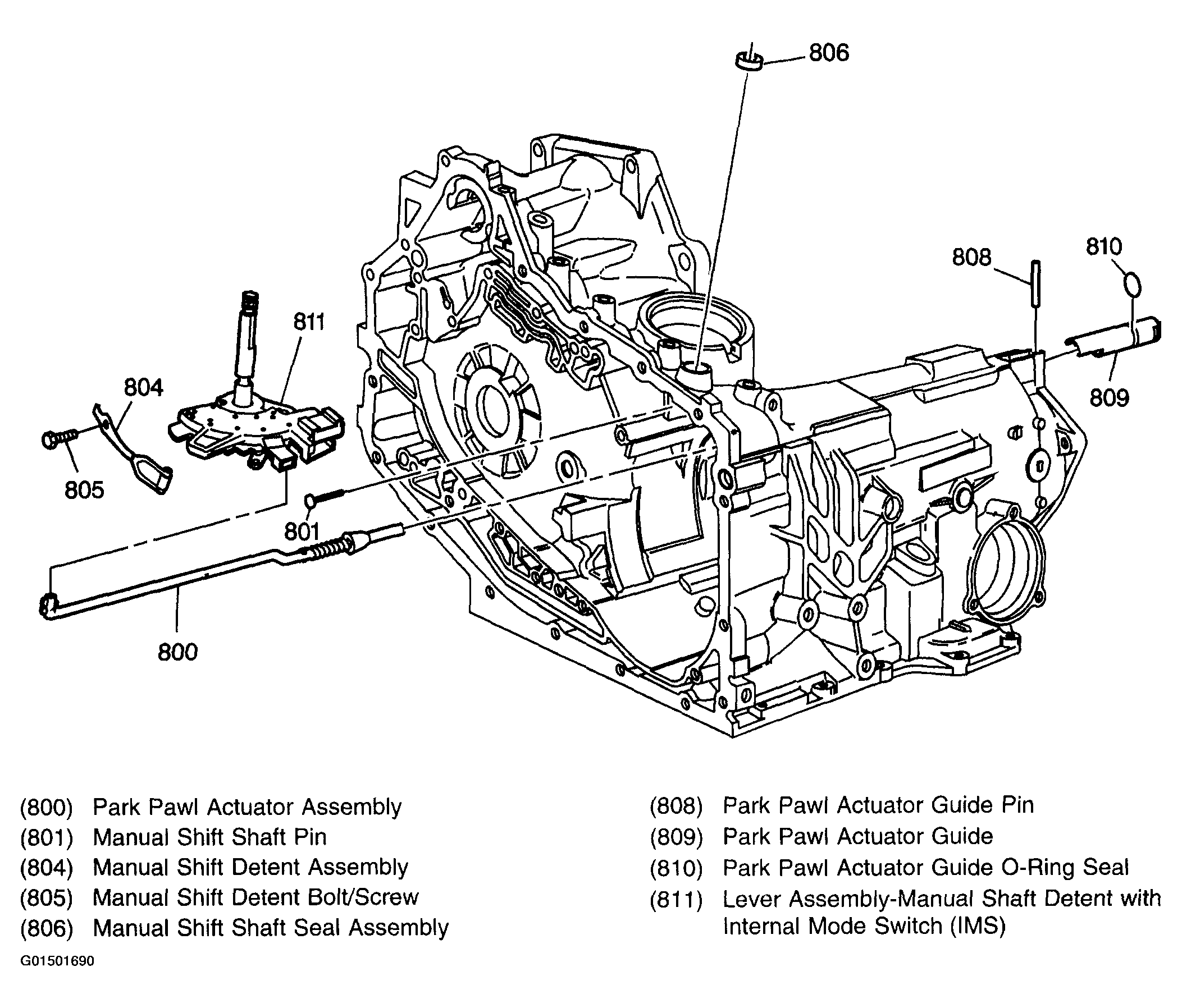

Fig 12: Exploded View Of Manual Shaft And Parking System Assembly
G01501690Courtesy of GENERAL MOTORS CORP.

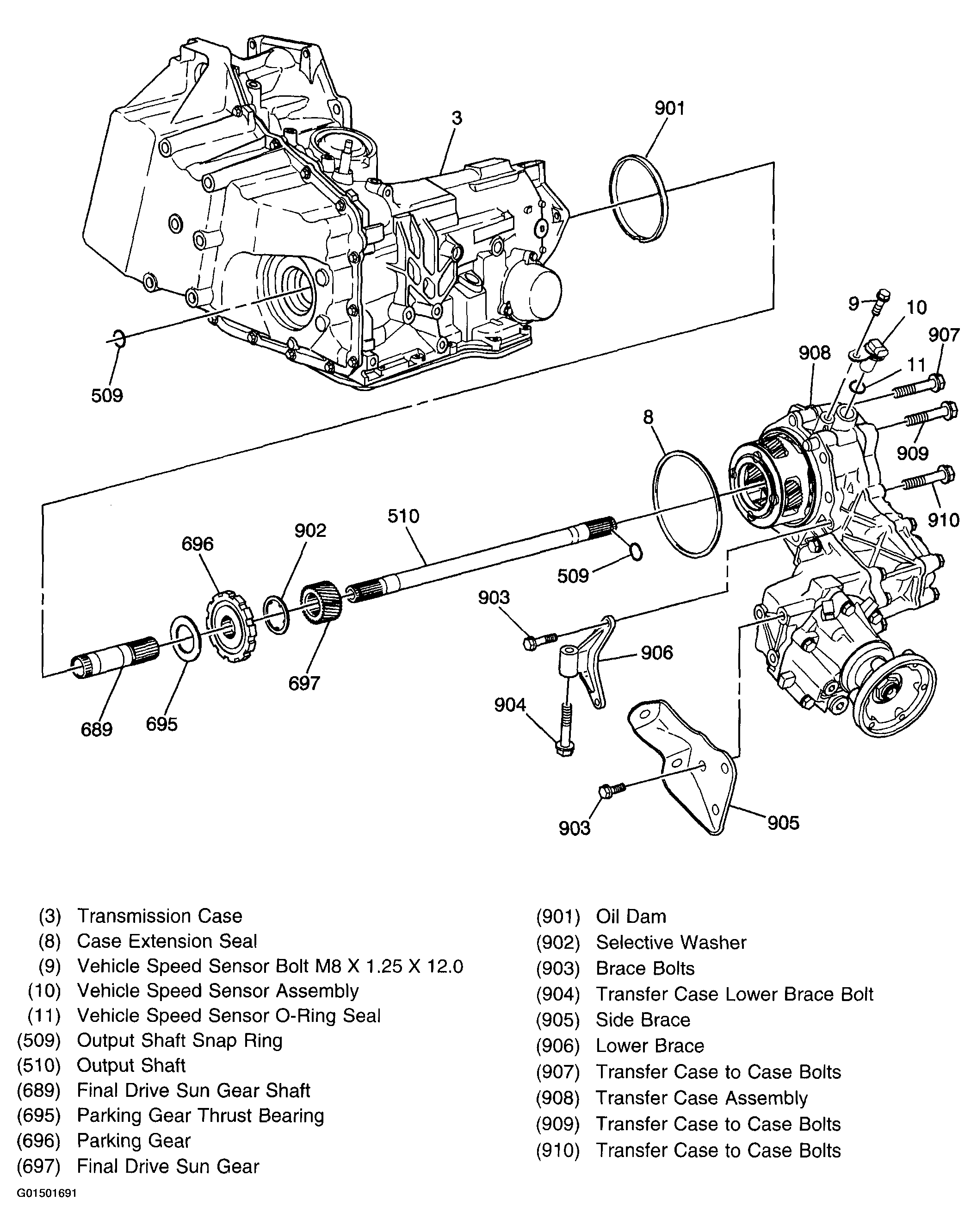

Fig 13: Exploded View Of Transmission To Transfer Case Components
G01501691Courtesy of GENERAL MOTORS CORP.
