Installation Procedure

  1. Connect the wiring harness (224).

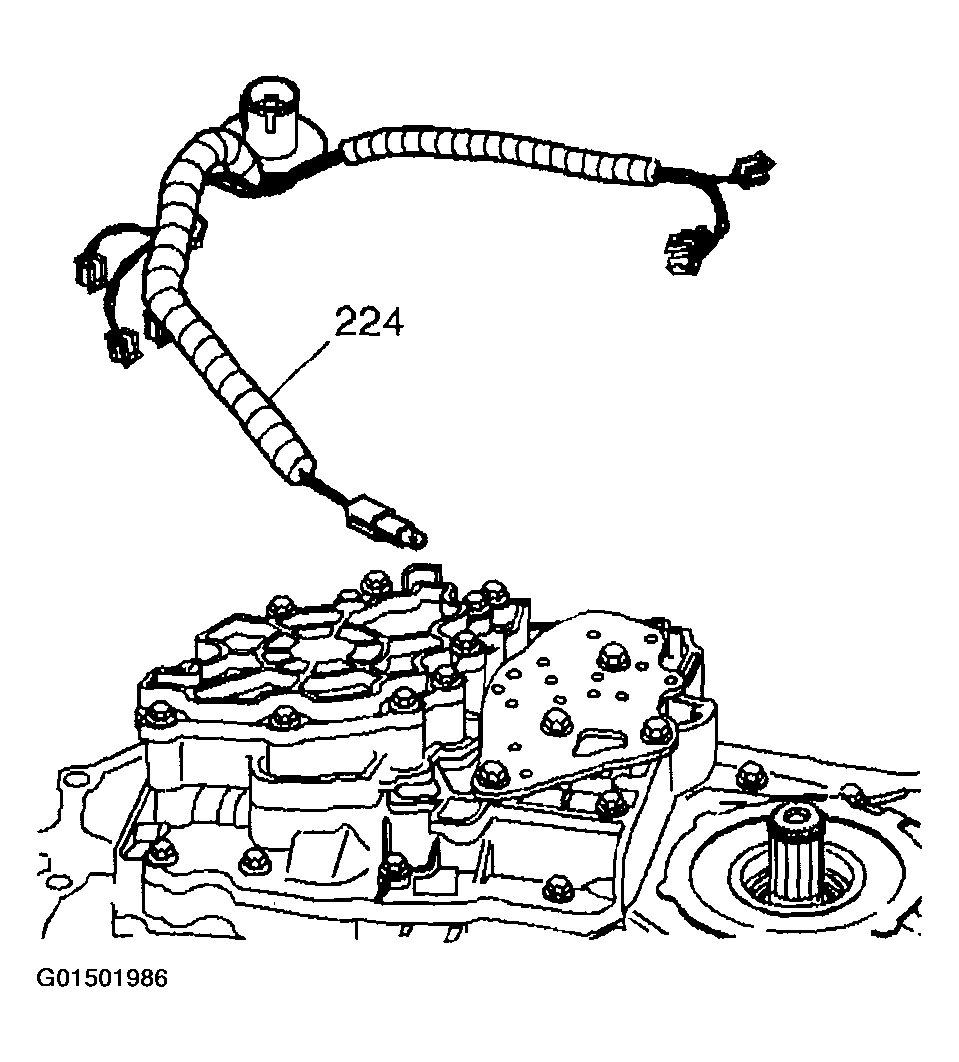

    Fig 1: Installing Fluid Temperature Sensor (1 Of 2)
    G01501986Courtesy of GENERAL MOTORS CORP.
  2. Install the wiring harness to the solenoid valve(s) (315A, 315B, 322, 334 and/or 440), TFP manual valve position switch (395) and/or the temperature sensor (391).
  3. Install the case side cover. Refer to CASE SIDE COVER REPLACEMENT  .
    NOTE: Do NOT overfill the transaxle. The overfilling of the transaxle causes foaming, loss of fluid, shift complaints, and possible damage to the transaxle
  4. Fill the transaxle to the proper level. Refer to FLUID CAPACITY SPECIFICATIONS  .
  5. Inspect the transaxle fluid level. Refer to TRANSMISSION FLUID CHECKING PROCEDURE  .
  6. Inspect for fluid leaks.

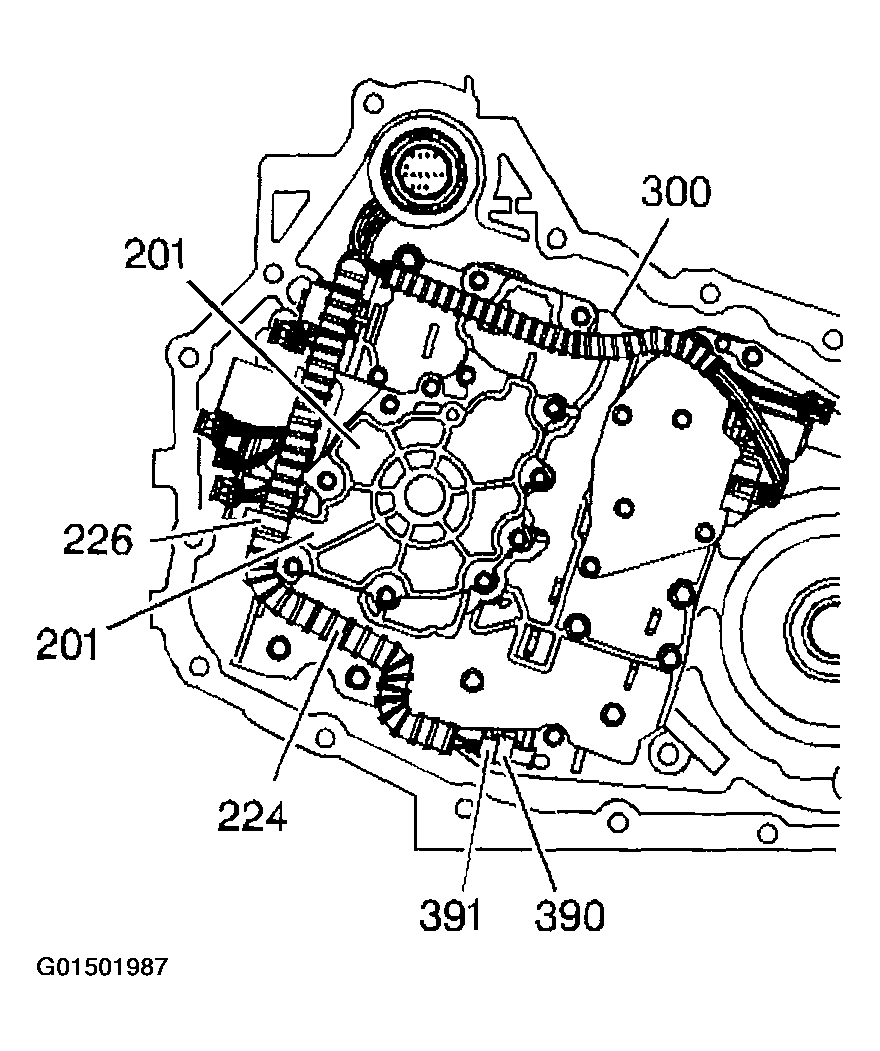

    Fig 2: Installing Fluid Temperature Sensor (2 Of 2)
    G01501987Courtesy of GENERAL MOTORS CORP.
