Automatic Transaxle Diagnosis, Service & Repair - 4T65-E
>>
Specifications
>>
Component Resistance
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Resistance

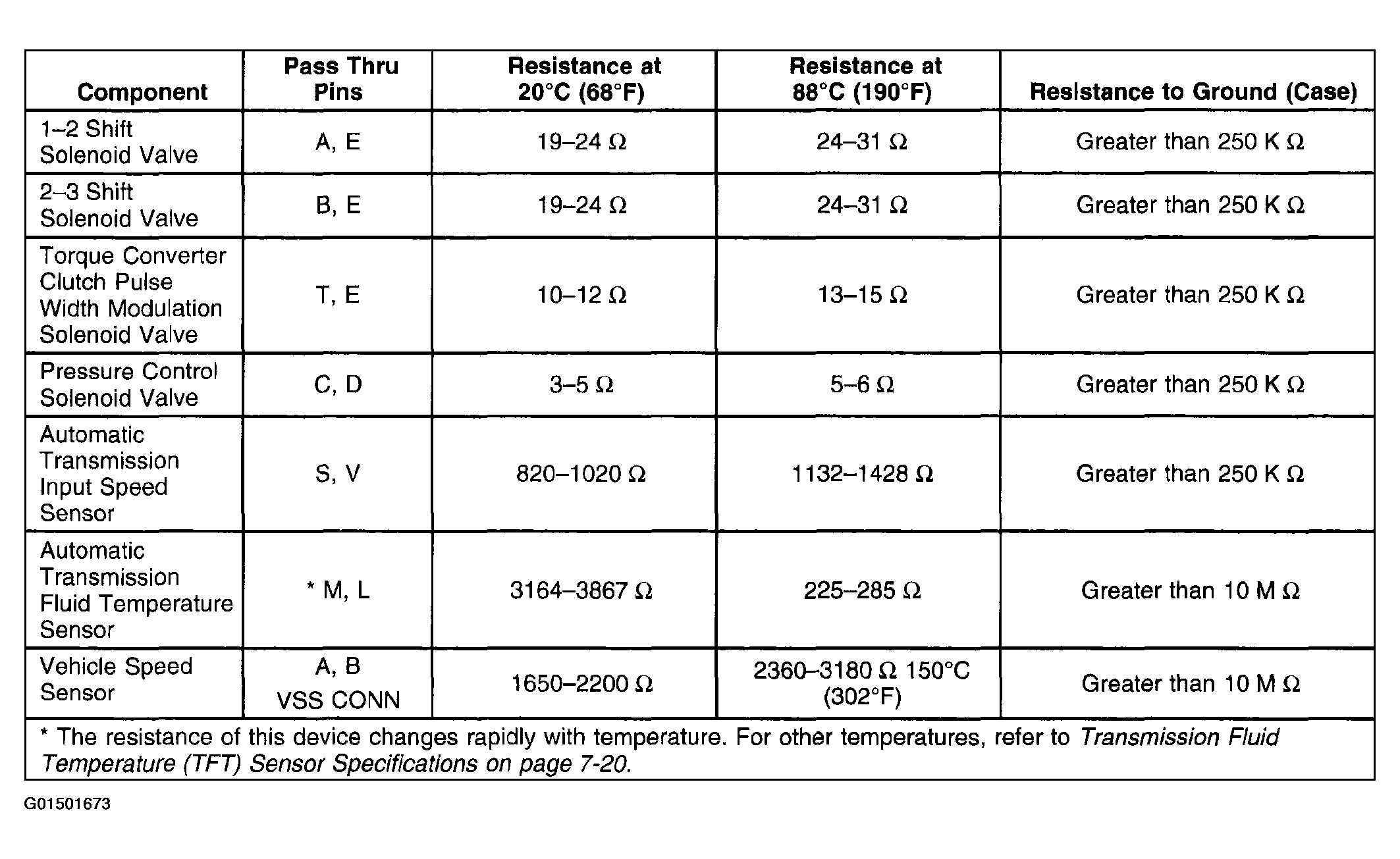

Fig 1: Component Resistance Table
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
