Transmission Internal Mode Switch Logic

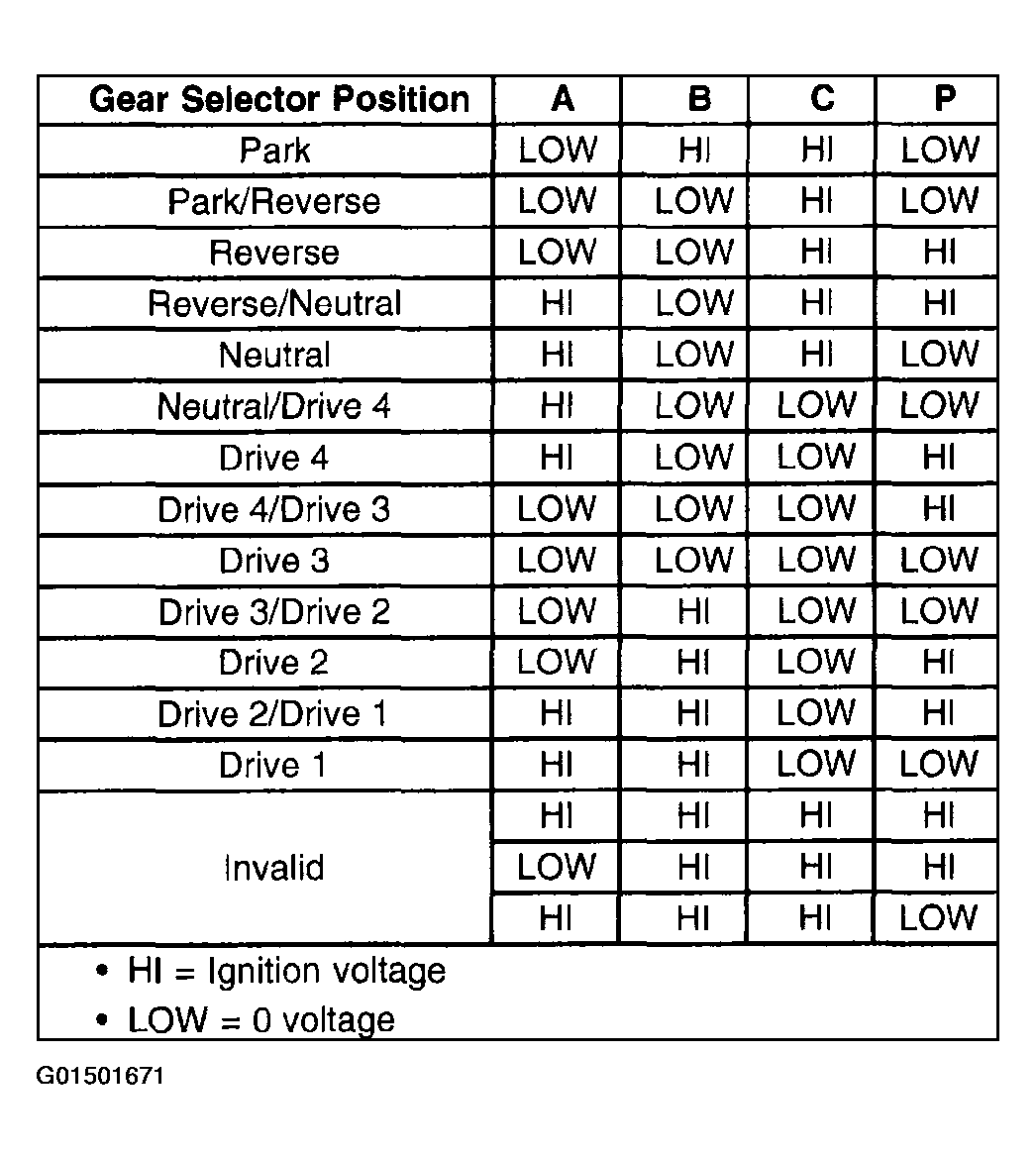

Fig 1: Transmission Internal Mode Switch Logic Table
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
