Installation Procedure

  1. Install the transaxle brace.
  2. Install the transaxle brace bolts.

    Tighten

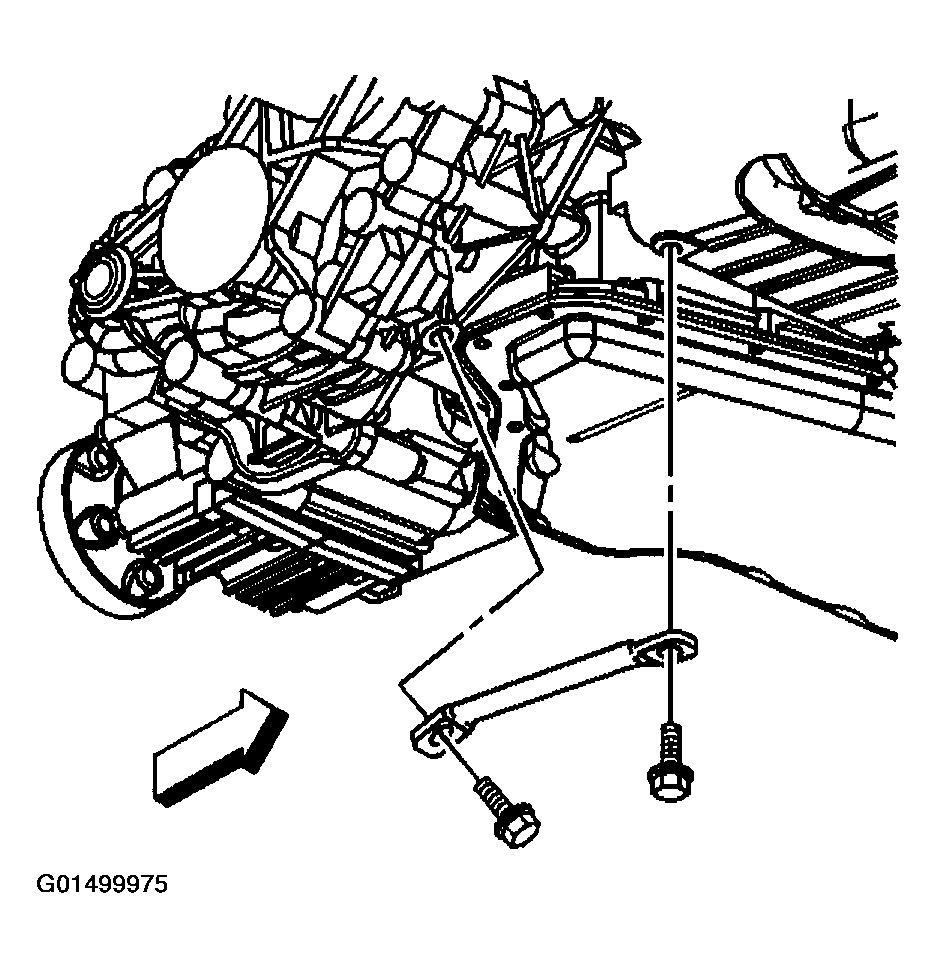

    Fig 1: Installing Transaxle Brace Bolts And Brace
    G01499975Courtesy of GENERAL MOTORS CORP.

    Tighten the bolts to 47 N.m (35 lb ft).

  3. Lower the vehicle.

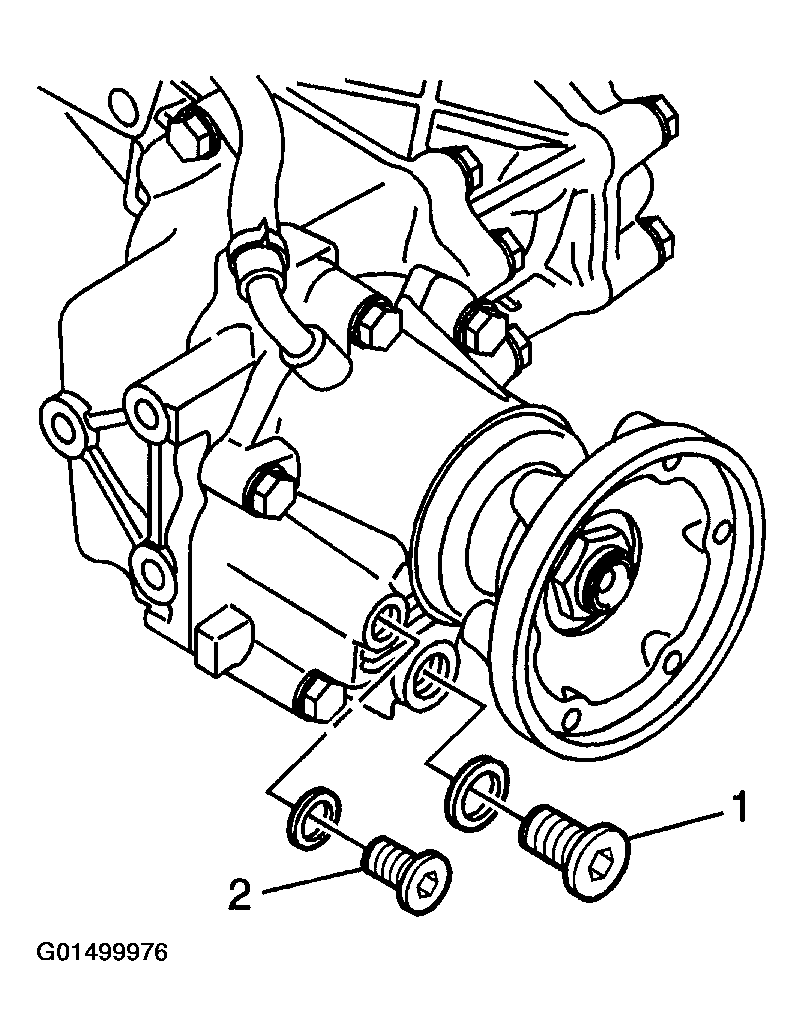

    Fig 2: Removing Drain Plug And Oil Seal
    G01499976Courtesy of GENERAL MOTORS CORP.
