Installation Procedure

  1. Install the drain plug (1) and gasket.

    Tighten

    Tighten the drain plug to 32 N.m (24 lb ft).

  2. Fill the transfer case with synthetic gear oil GM P/N United States 12378514 Canada P/N 88901045, or equivalent.
  3. Fill the transfer case to the bottom of the oil fill plug hole.
  4. Install the oil fill plug (2) and gasket.

    Tighten

    Tighten the oil fill plug to 28 N.m (21 lb ft).

  5. Lower the vehicle.

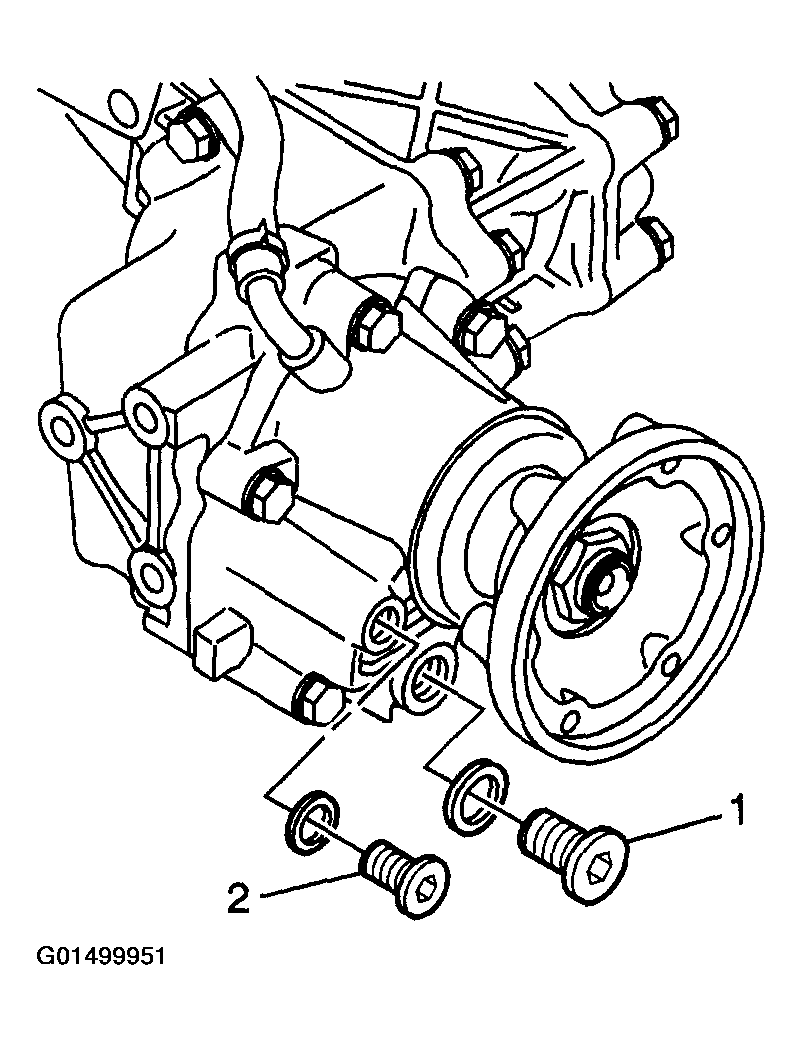

    Fig 1: Installing Fill Plug And Gasket
    G01499951Courtesy of GENERAL MOTORS CORP.
