A/T Shift Lock Control Solenoid - Pontiac

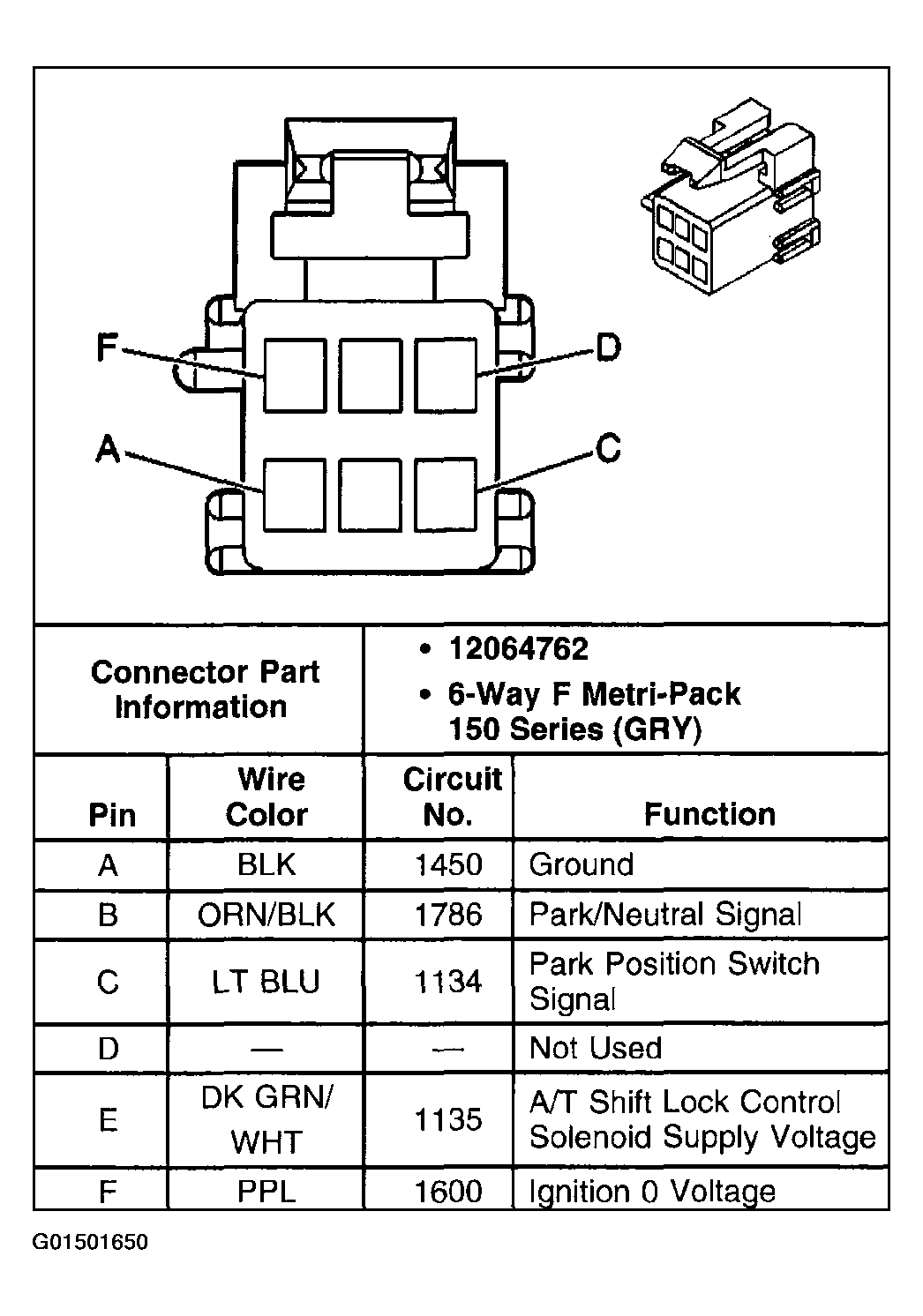

Fig 1: Identifying A/T Shift Lock Control Solenoid Connector - Pontiac
G01501650Courtesy of GENERAL MOTORS CORP.
