Cruise Control - Inoperative/Malfunctioning
CRUISE CONTROL INOPERATIVE/MALFUNCTIONINGDIAGNOSTIC AIDS
IMPORTANT: Perform the following in order to avoid misdiagnosis.
- Inspect for proper operation of the brake lamps.
- Inspect for proper operation of the transmission range switch.
- Inspect throttle linkage for mechanical binding which could cause the system to malfunction.
TEST

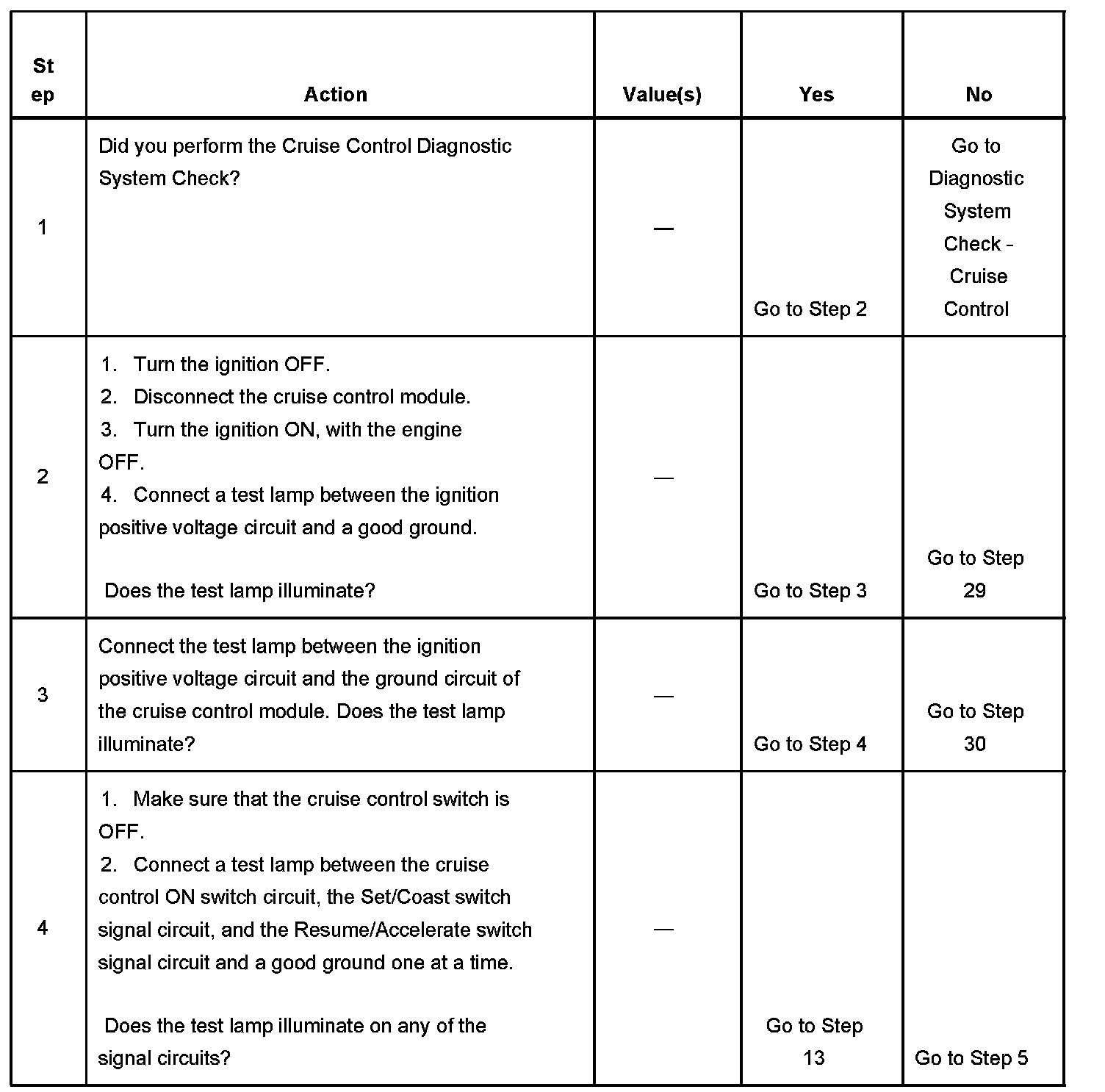

Steps 1-4:

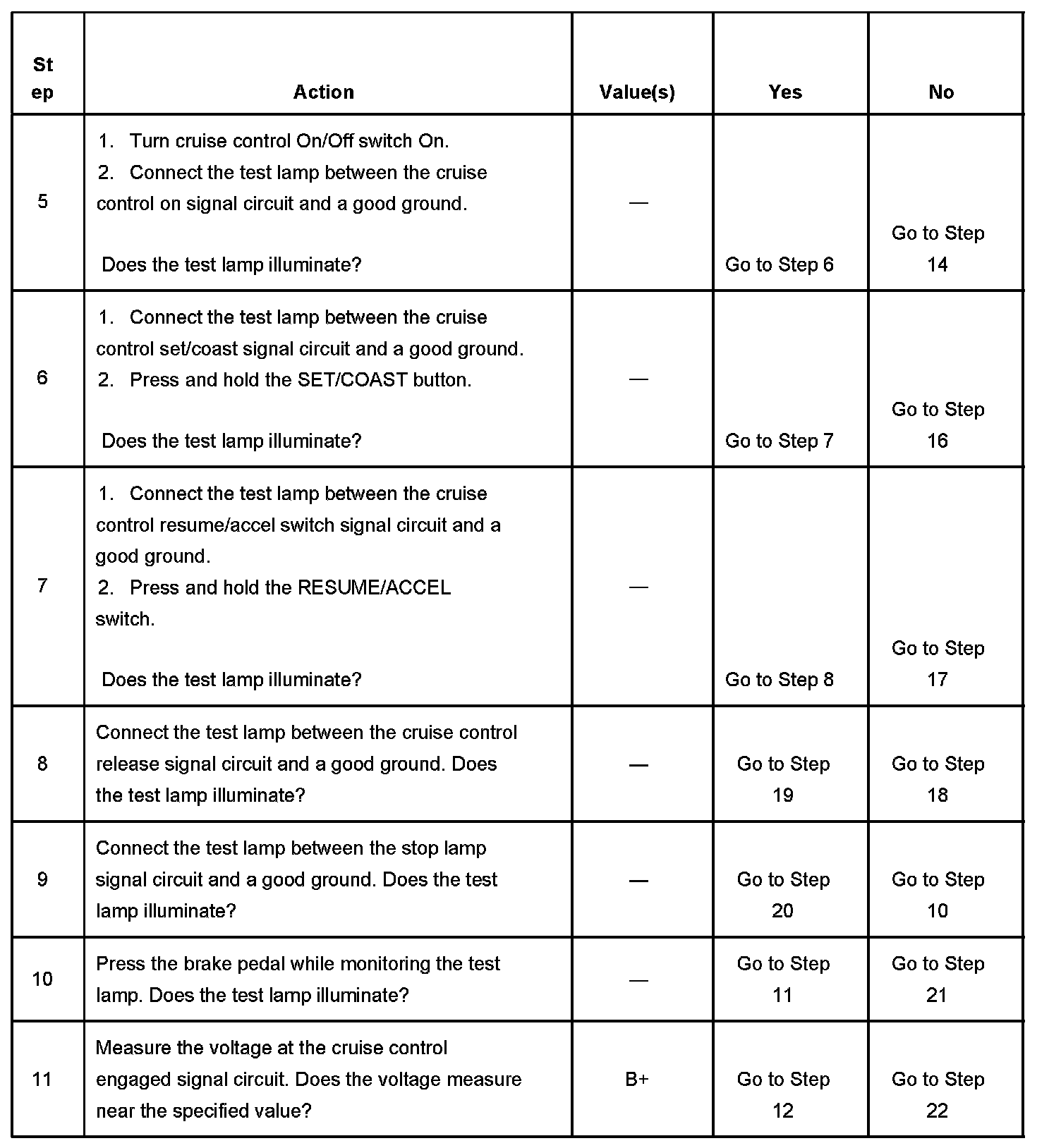

Steps 5-11:

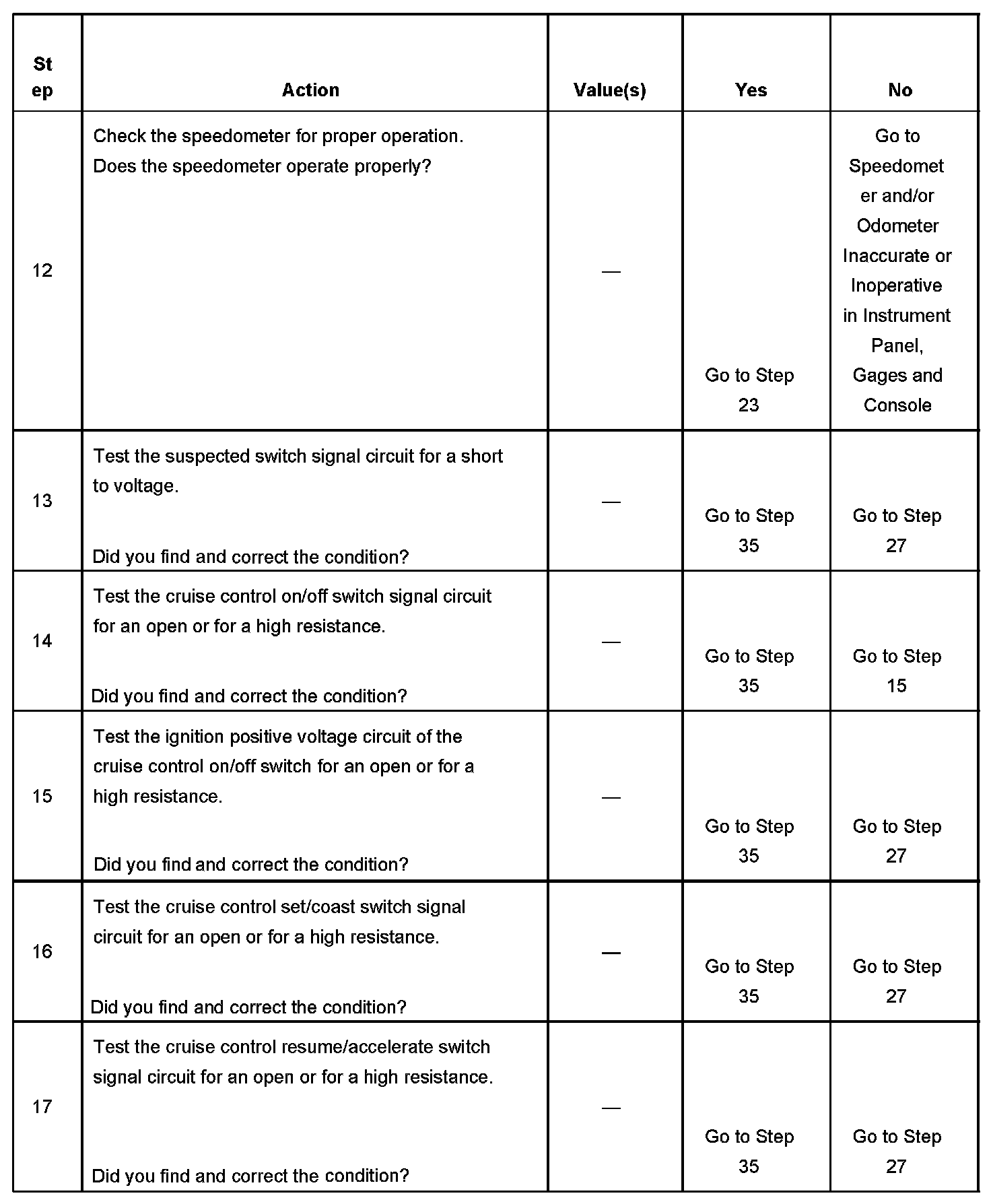

Steps 12-17:

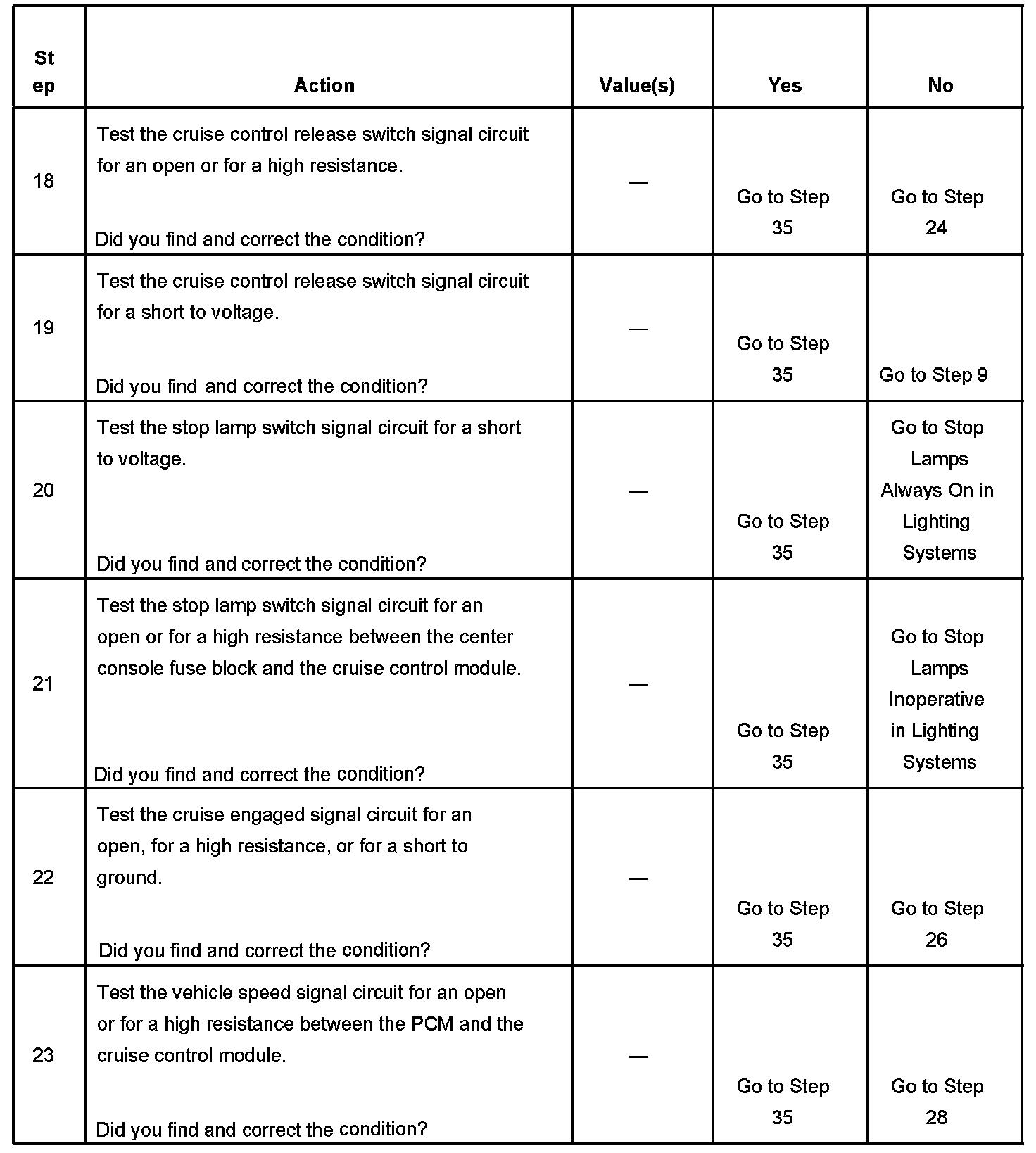

Steps 18-23:

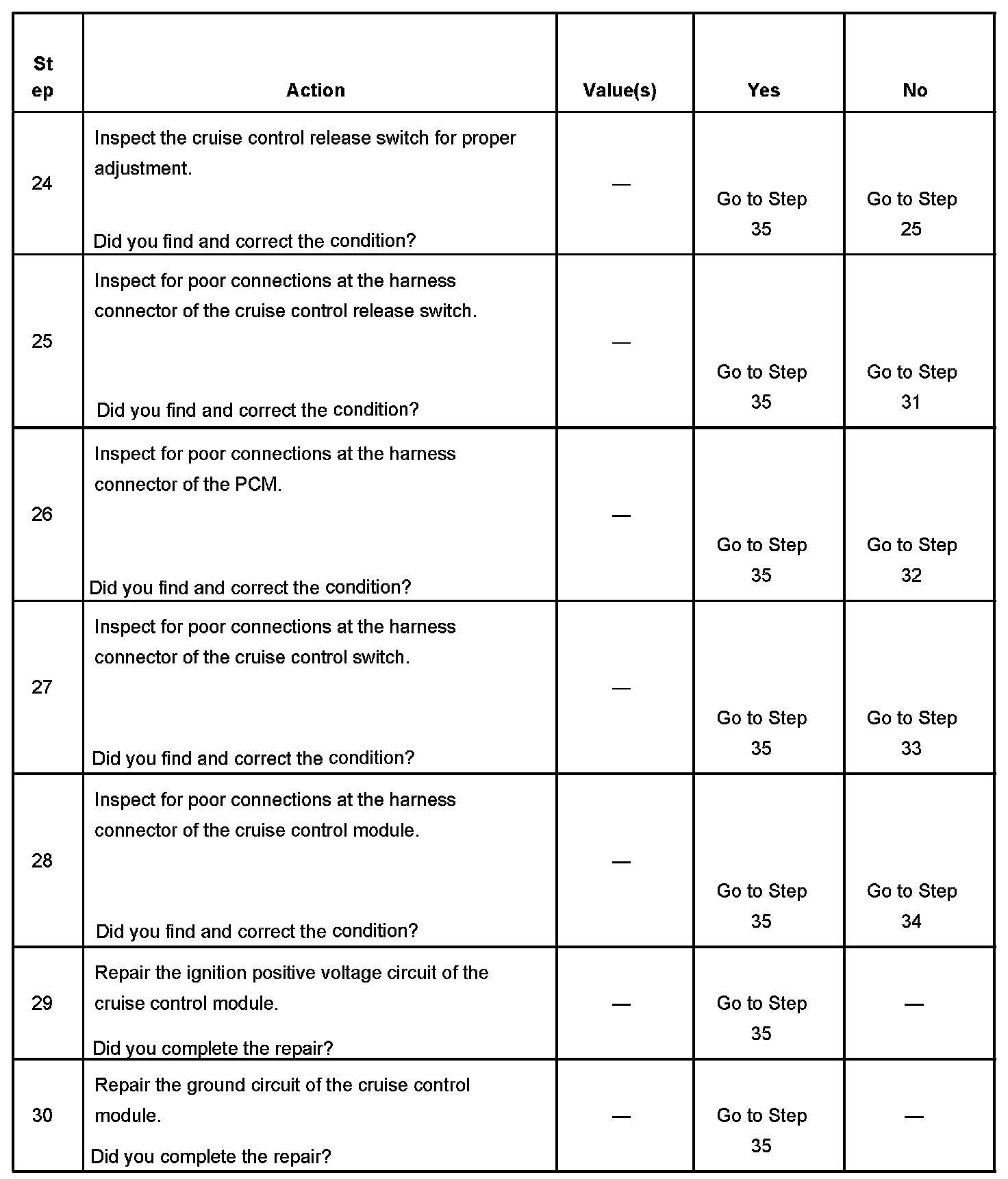

Steps 24-30:

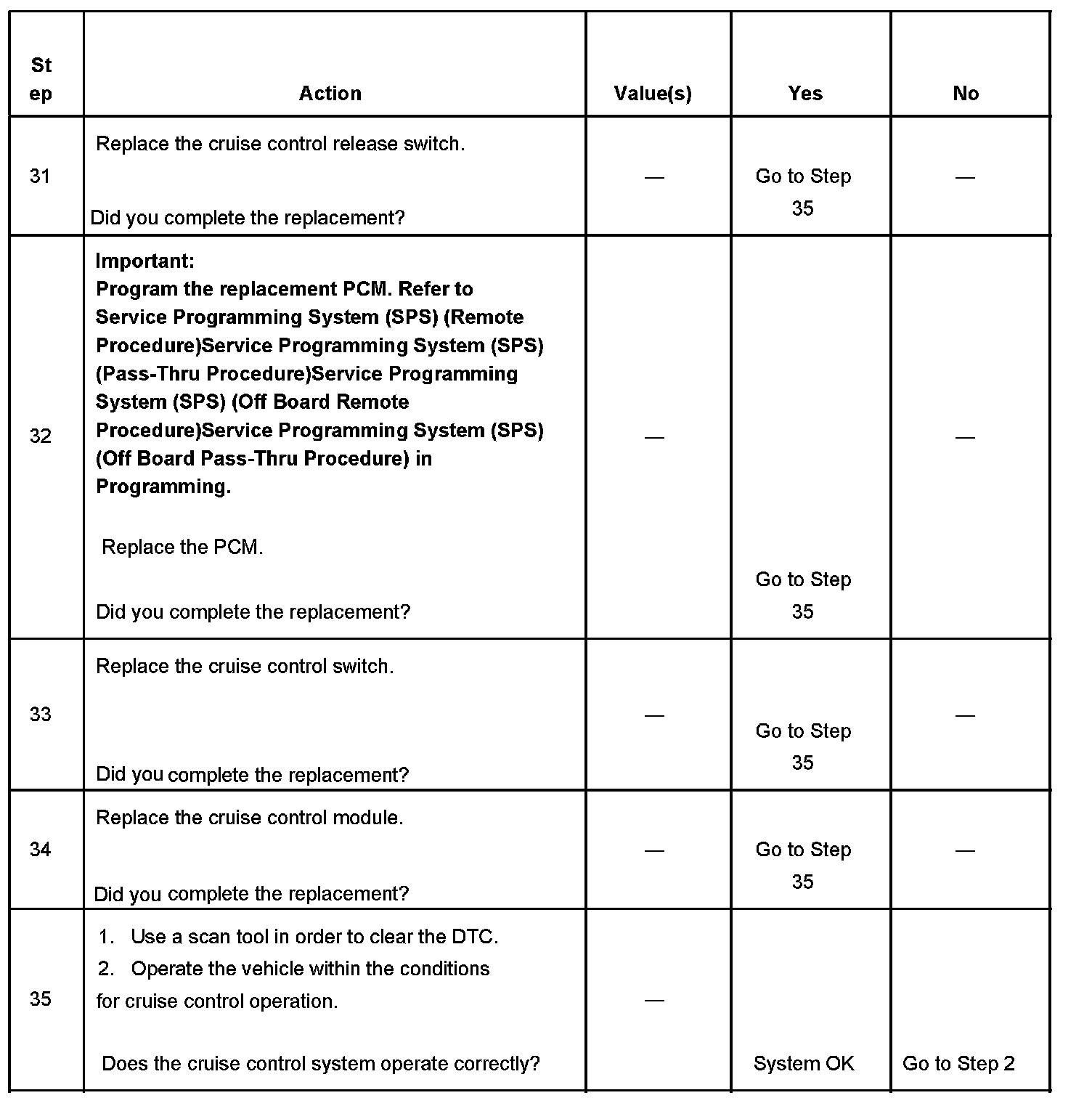

Steps 31-35:
