Fuse Block-Center Console

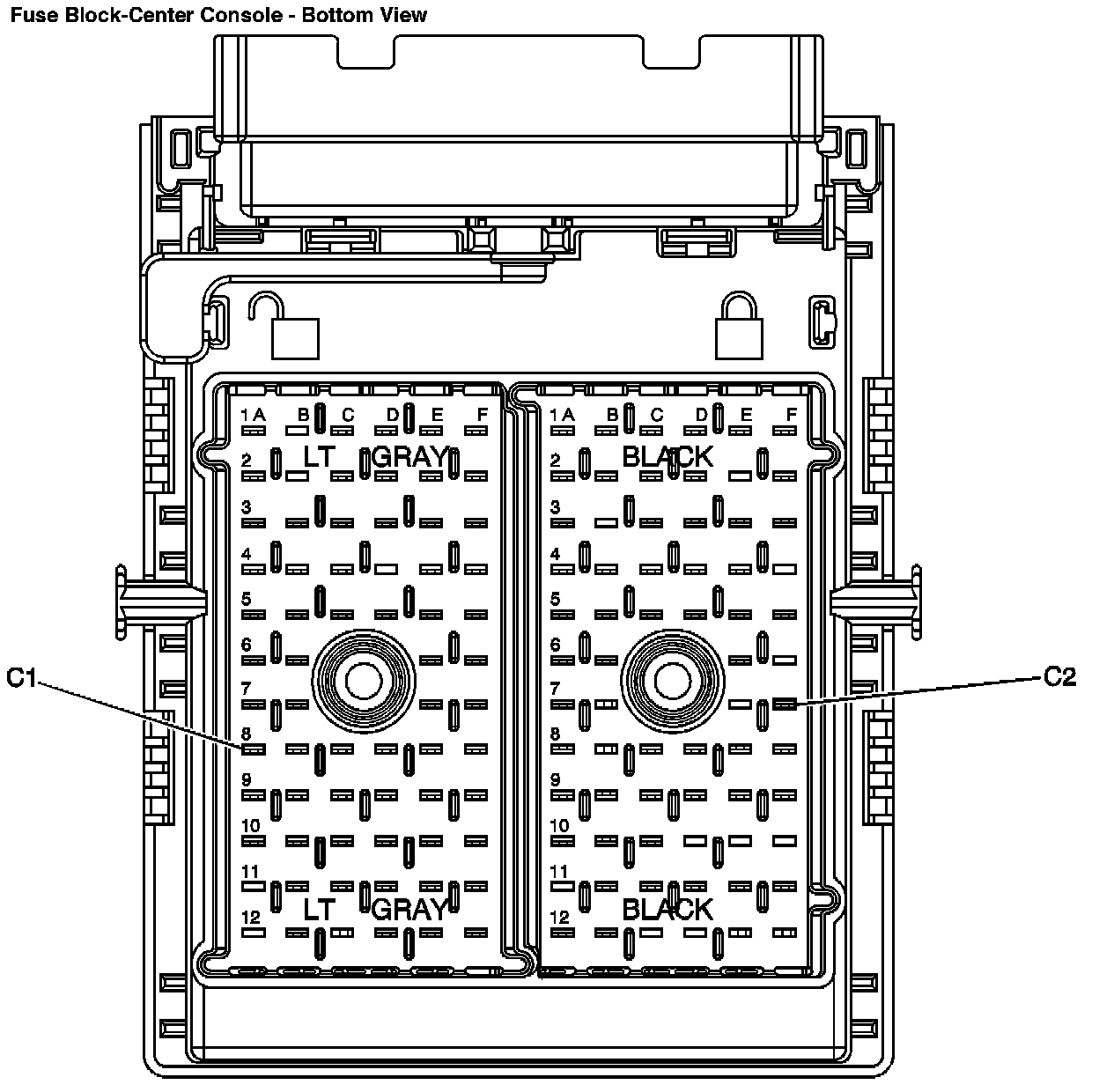

Location View:

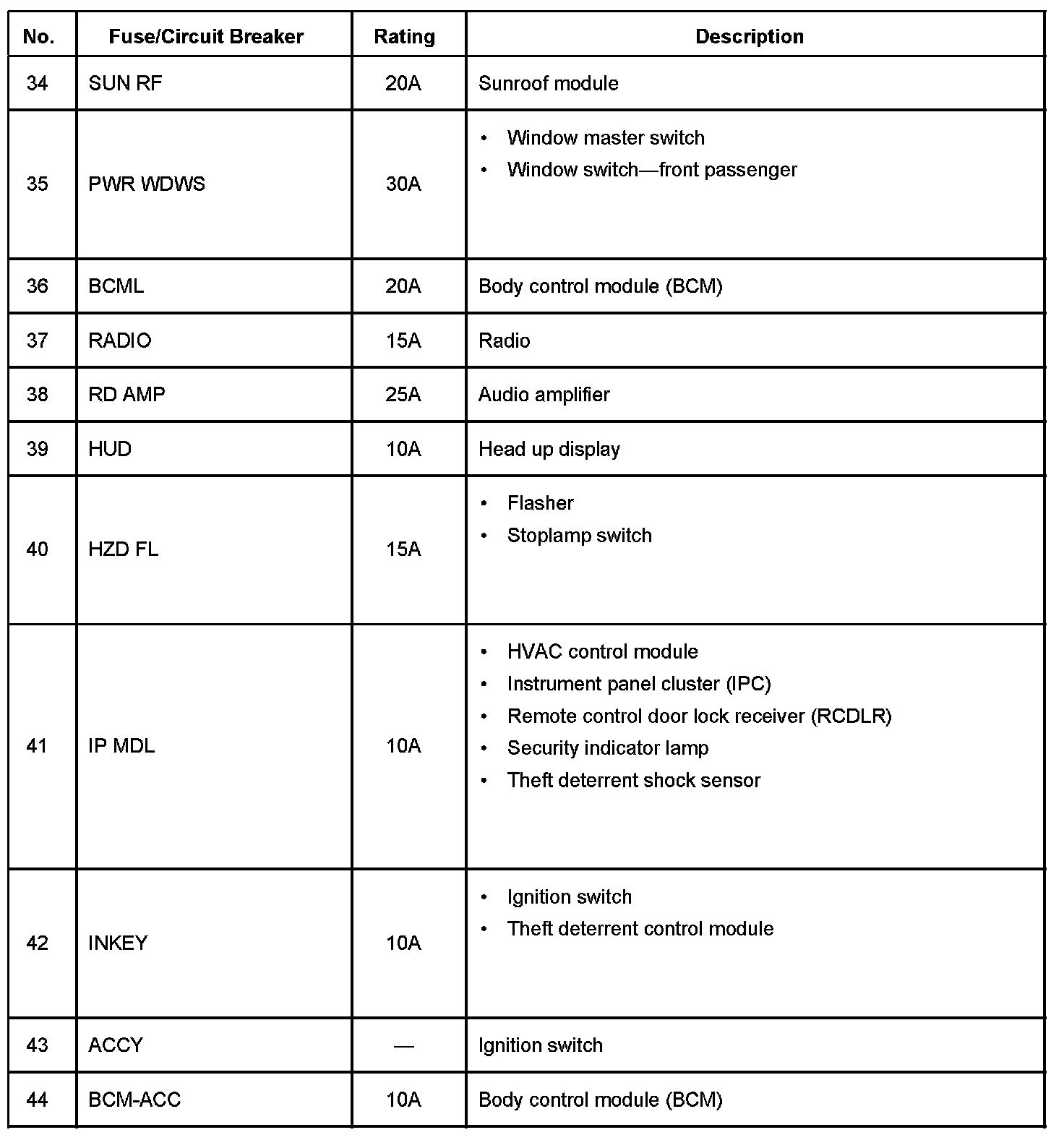

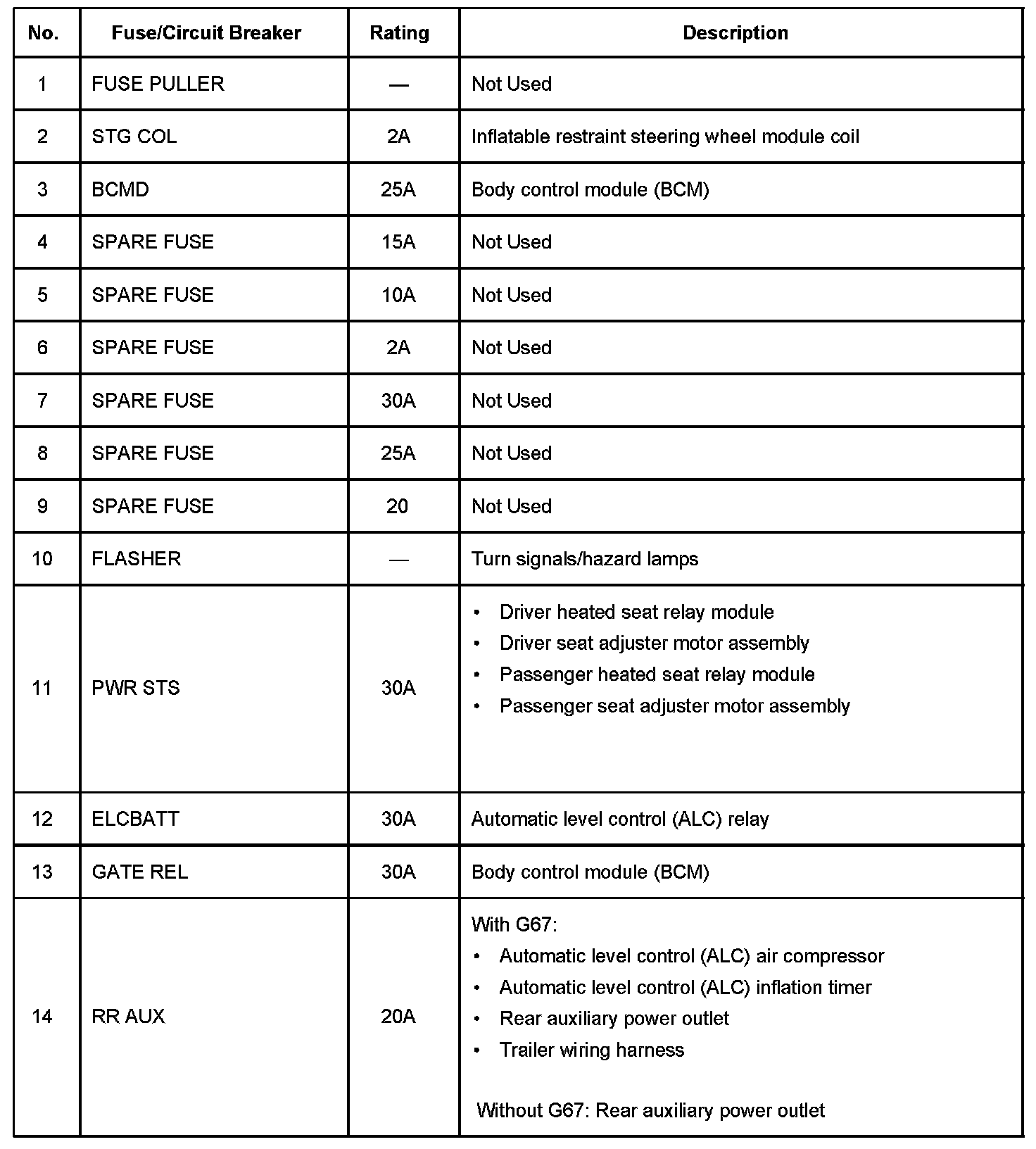

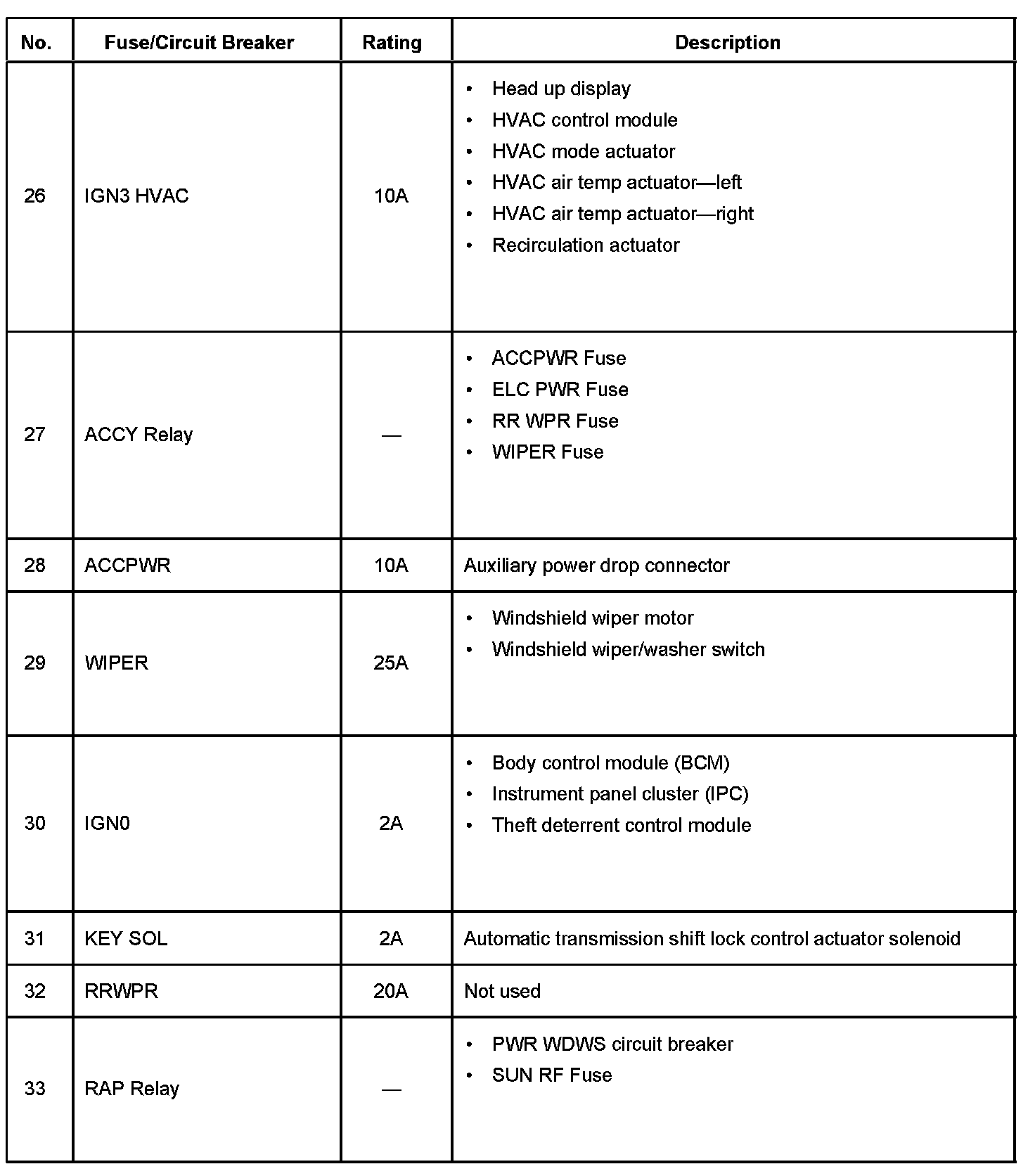

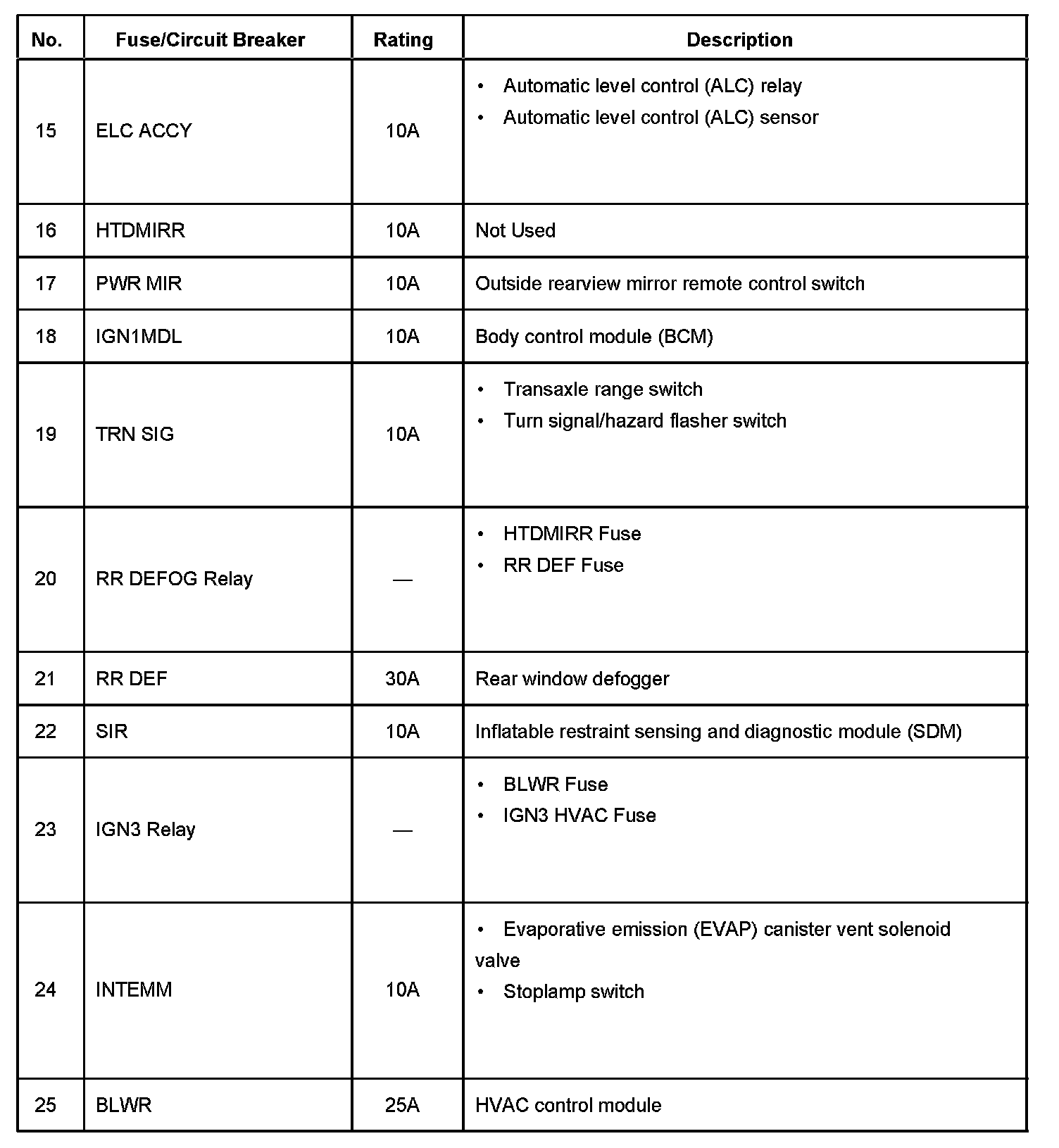

Application Table Part 1:




Application Table Part 2:




Application Table Part 3:




Application Table Part 4:

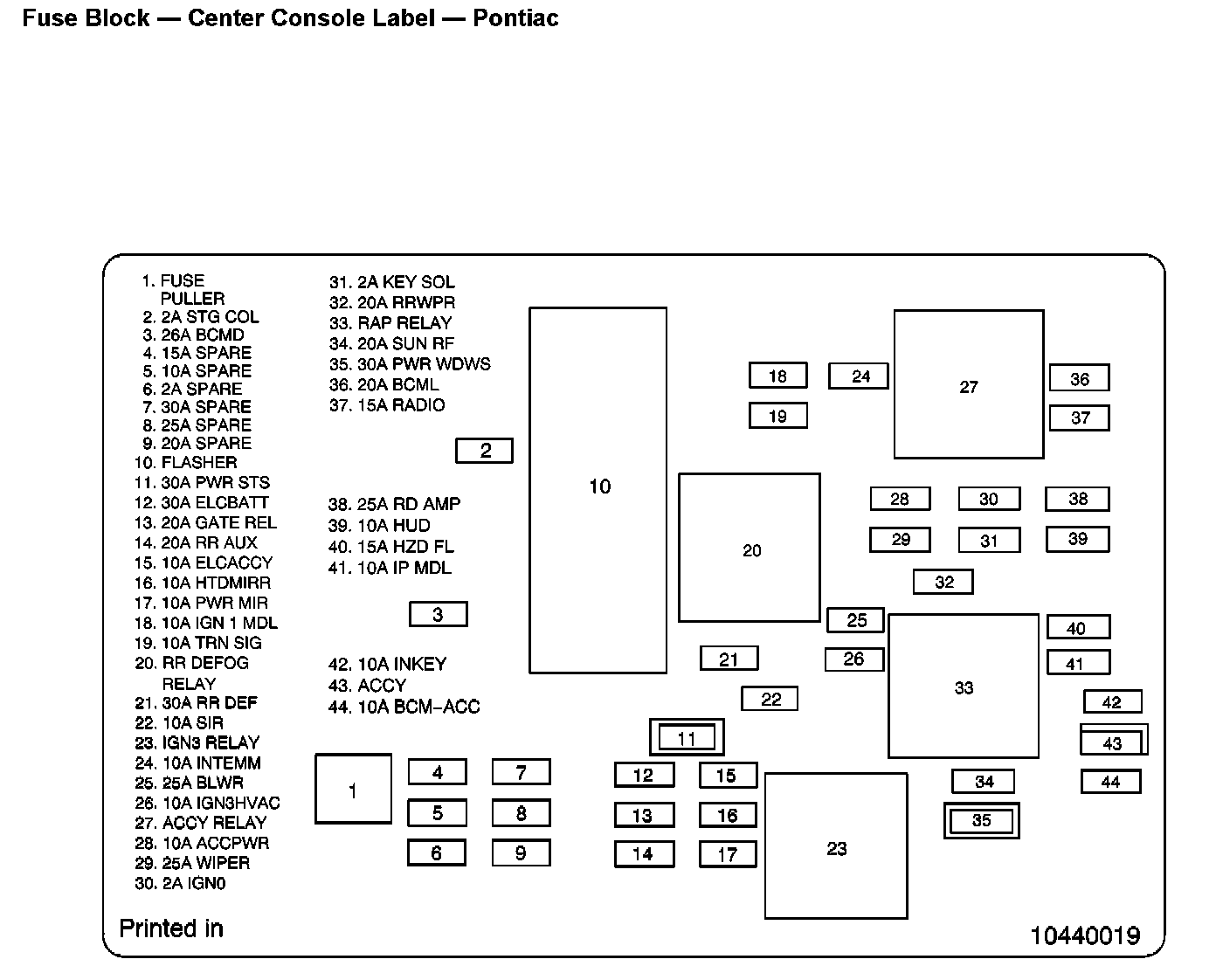

Location View:




Location View:
