Home >> Pontiac >> 2003 >> Aztek V6-3.4L VIN E >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Application and ID
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Relay Box: Application and ID

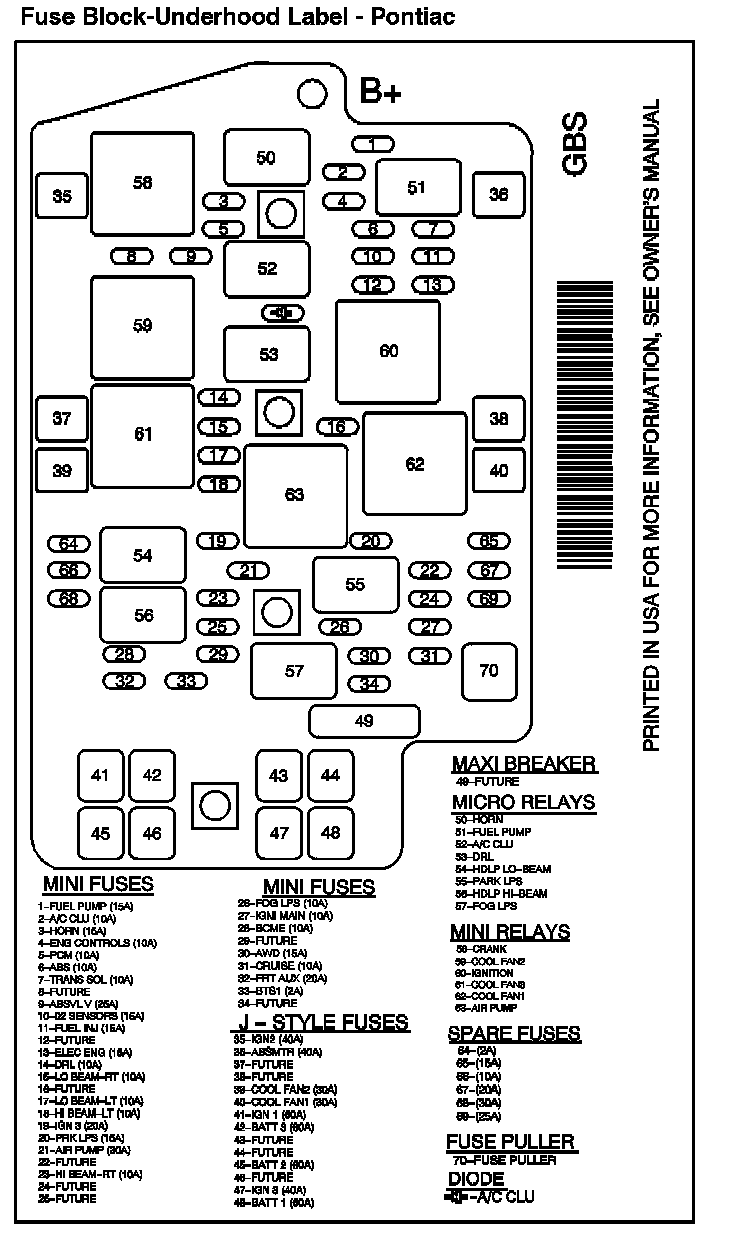

Location View:

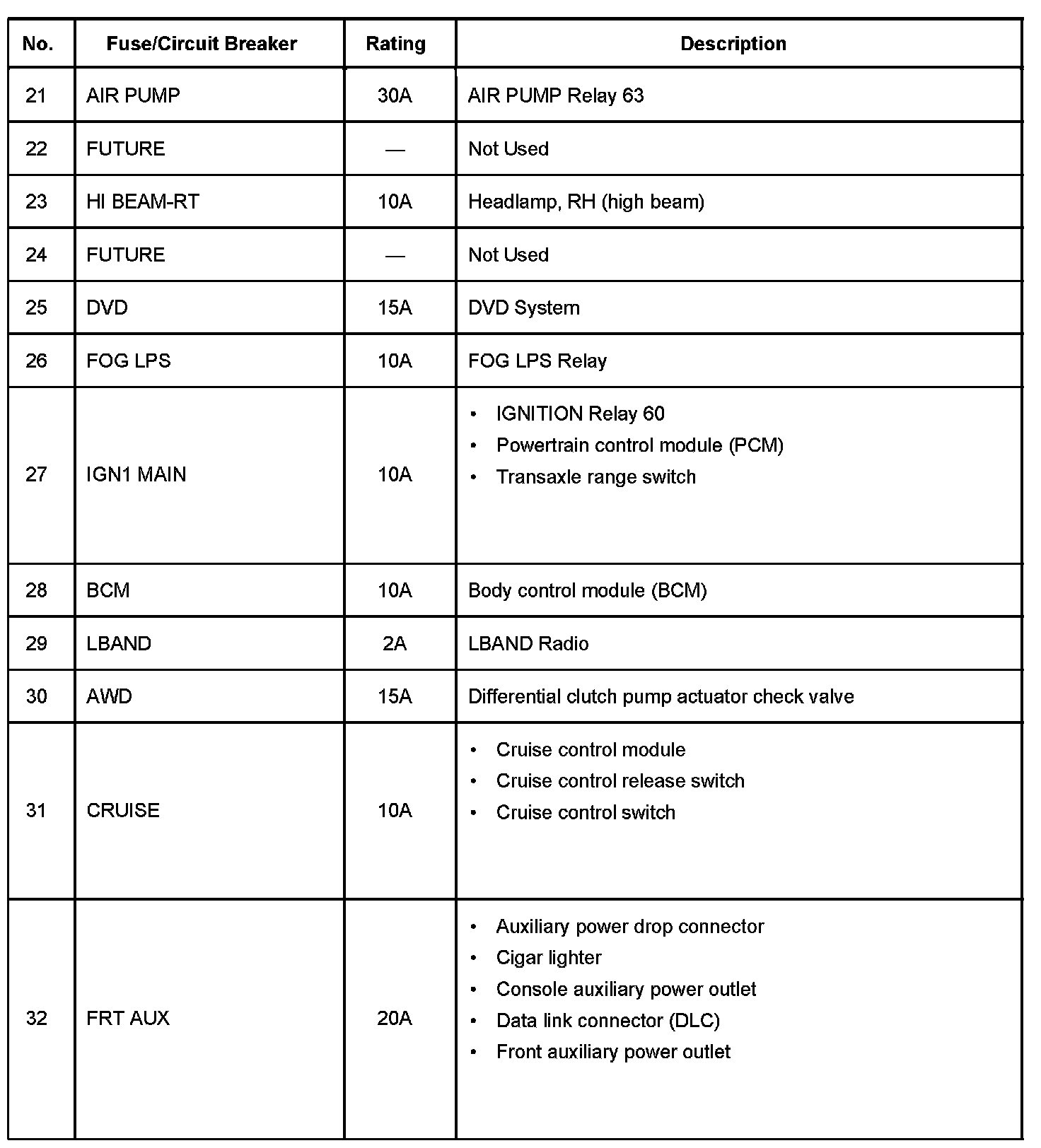

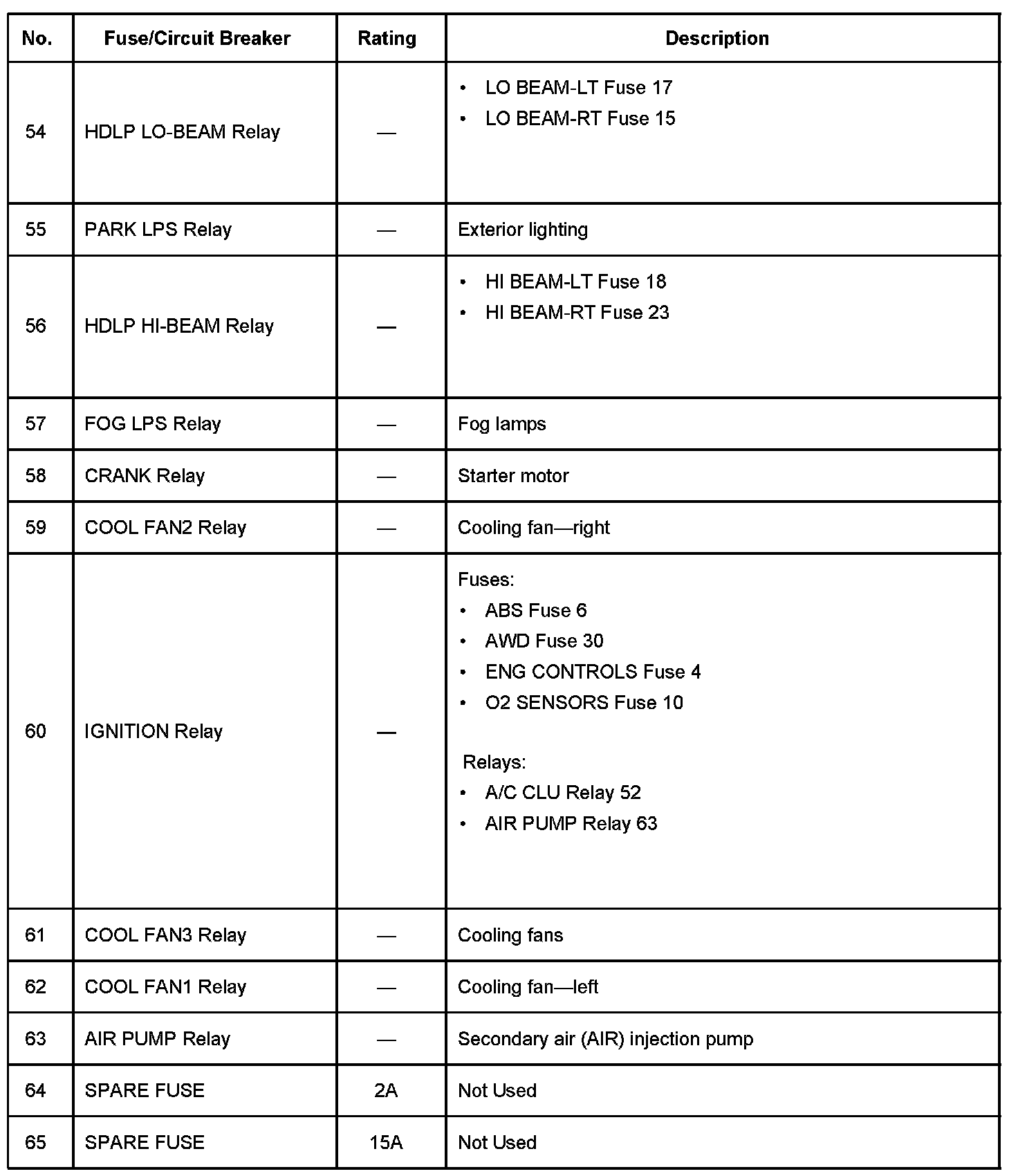

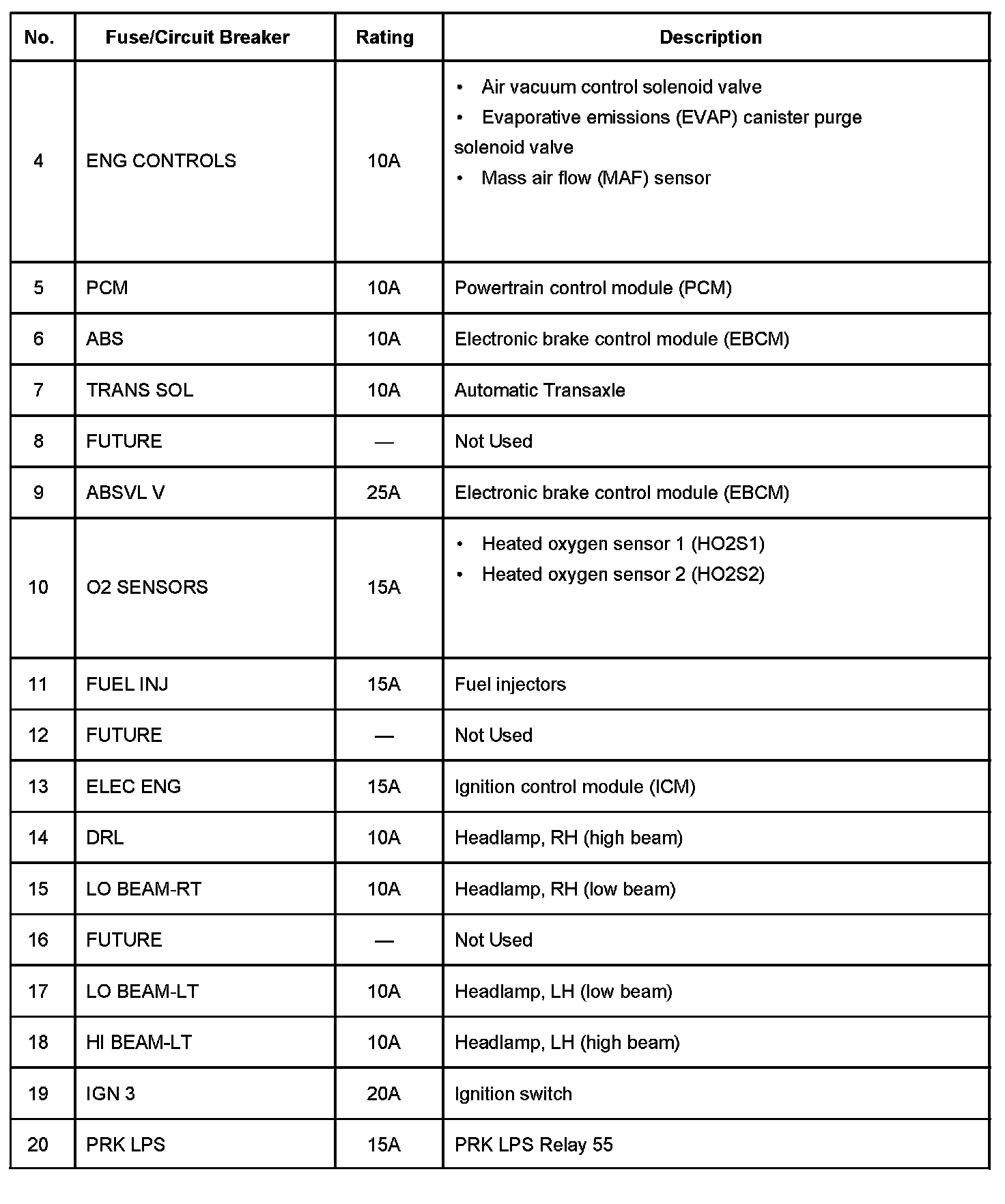

Application Table Part 1:




Application Table Part 2:




Application Table Part 3:




Application Table Part 4:




Application Table Part 5:




Application Table Part 6:




Application Table Part 7:

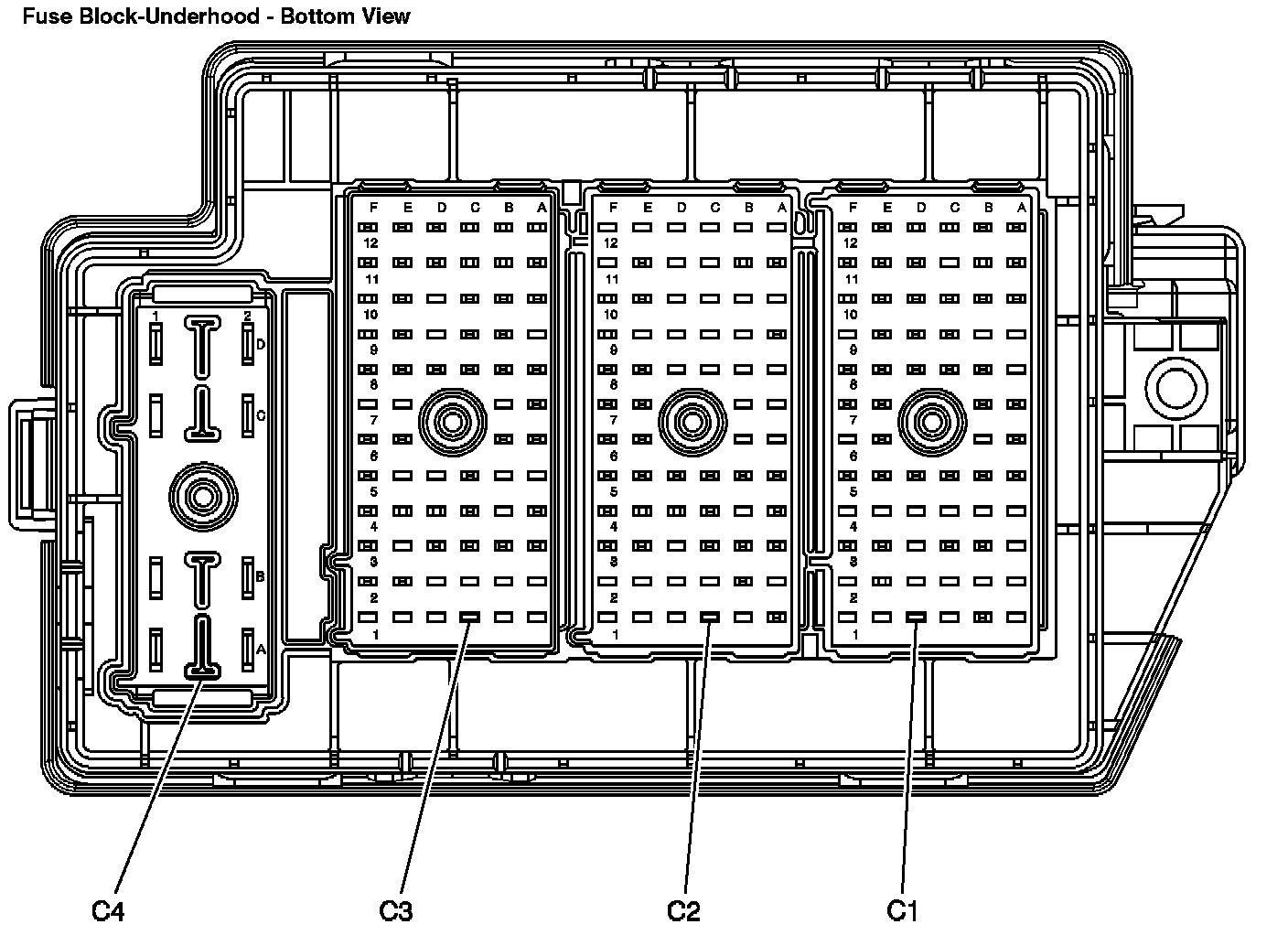

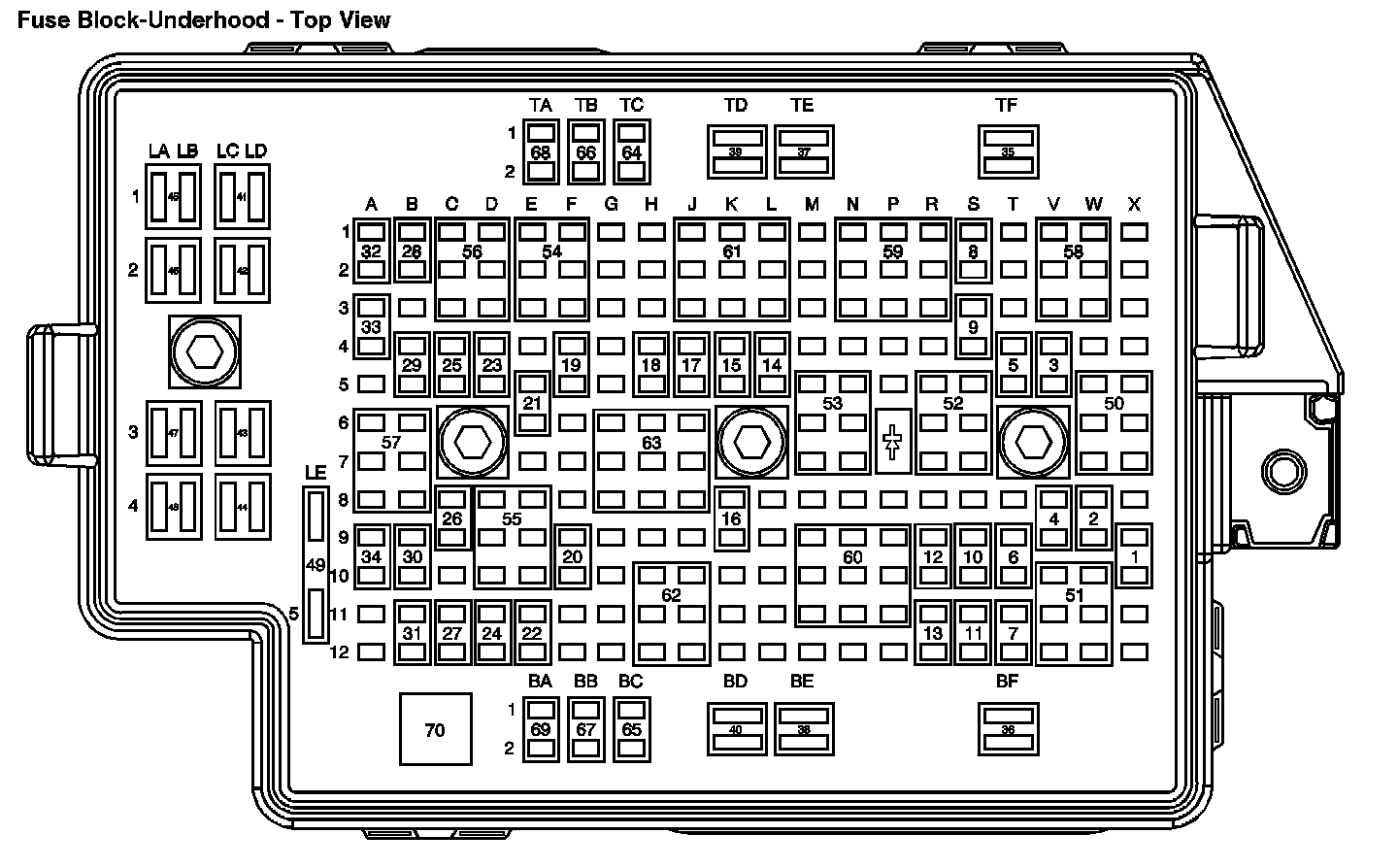

Location View:




Location View:
