Air Temperature Sensor ( Ambient / Intake ): Service and Repair

INTAKE AIR TEMPERATURE (IAT) SENSOR REPLACEMENT

REMOVAL PROCEDURE

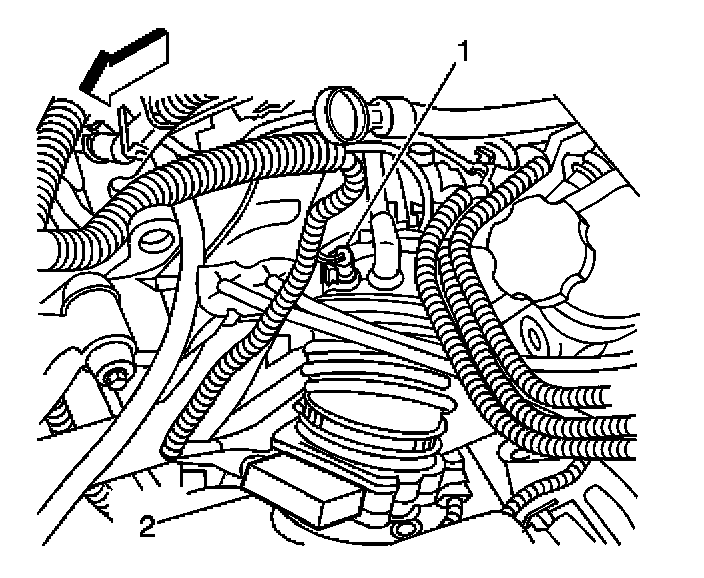

1. Disconnect the intake air temperature (IAT) sensor (1) electrical connector.
2. Carefully grasp the sensor and with a twisting and pulling motion, remove the IAT sensor from air intake duct.

INSTALLATION PROCEDURE




1. Install the IAT sensor (1) by snapping into place.
2. Connect the IAT sensor electrical connector.
