Camshaft Position Sensor: Service and Repair

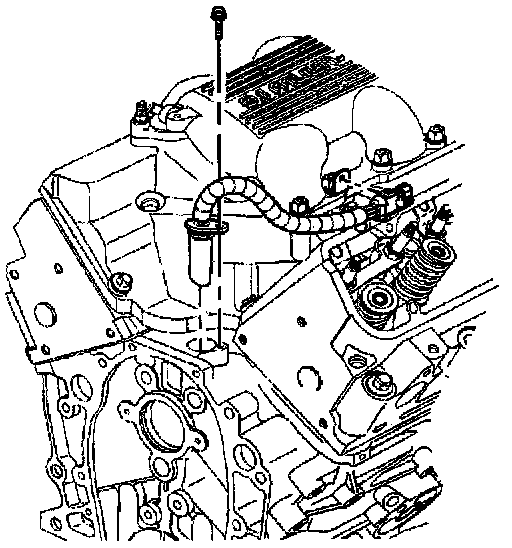

REMOVAL PROCEDURE




1. Turn OFF the ignition.
2. Remove the power steering pump.
3. Disconnect the sensor electrical connector.
4. Remove the attaching bolt.
5. Remove the sensor.
6. Inspect the sensor O-ring for wear, cracks, or leakage if the sensor is not being replaced.

INSTALLATION PROCEDURE
1. Lubricate the O-ring with clean engine oil. Replace the O-ring if the O-ring is damaged.




2. Install the camshaft position sensor.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the retaining bolt to 8 N.m (71 lb in).

3. Connect the sensor electrical connector.
4. Install the power steering pump.
