Electrical Diagrams

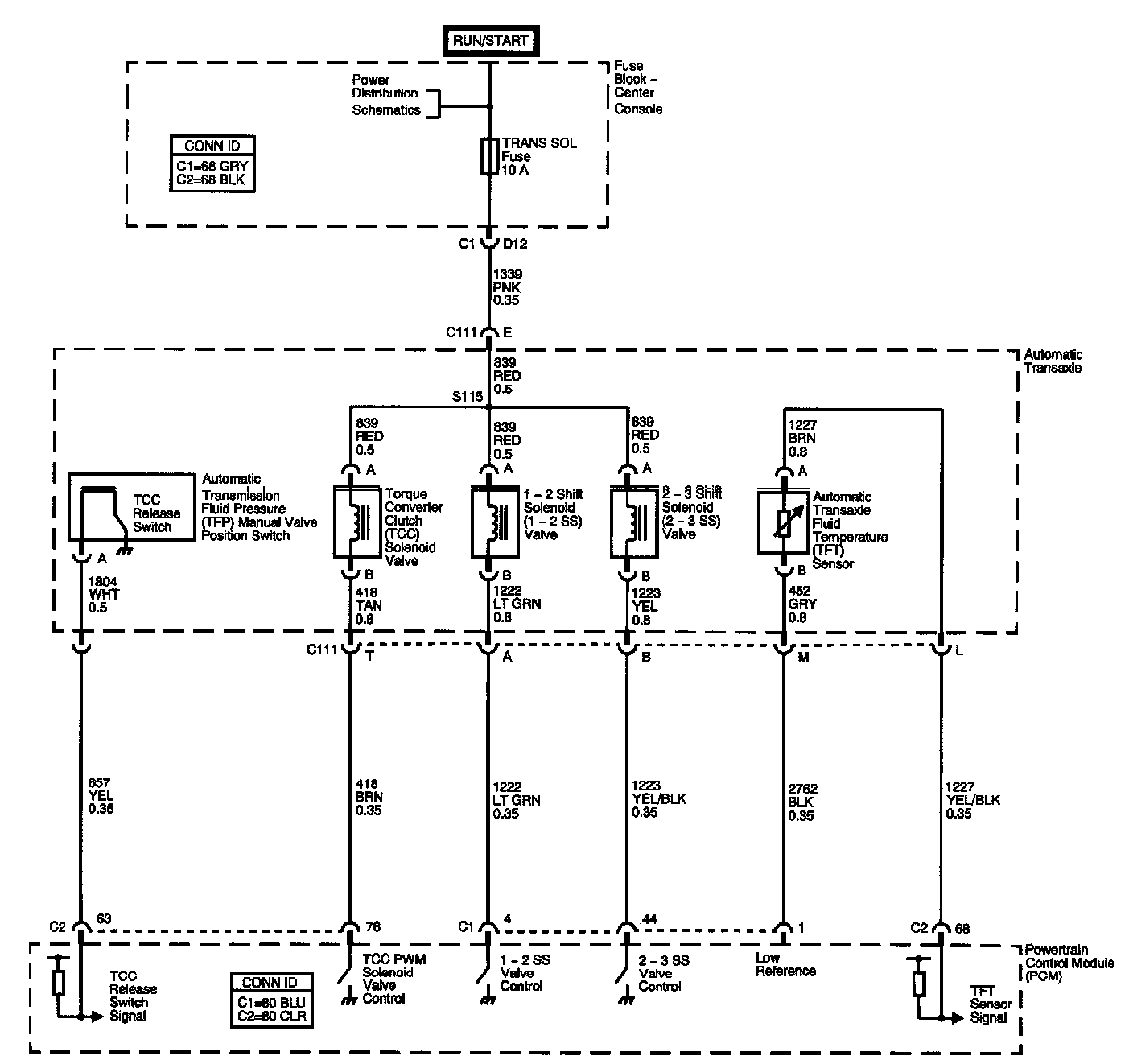

TCC Solenoid Control, SS Valve Control And TFT Sensor:

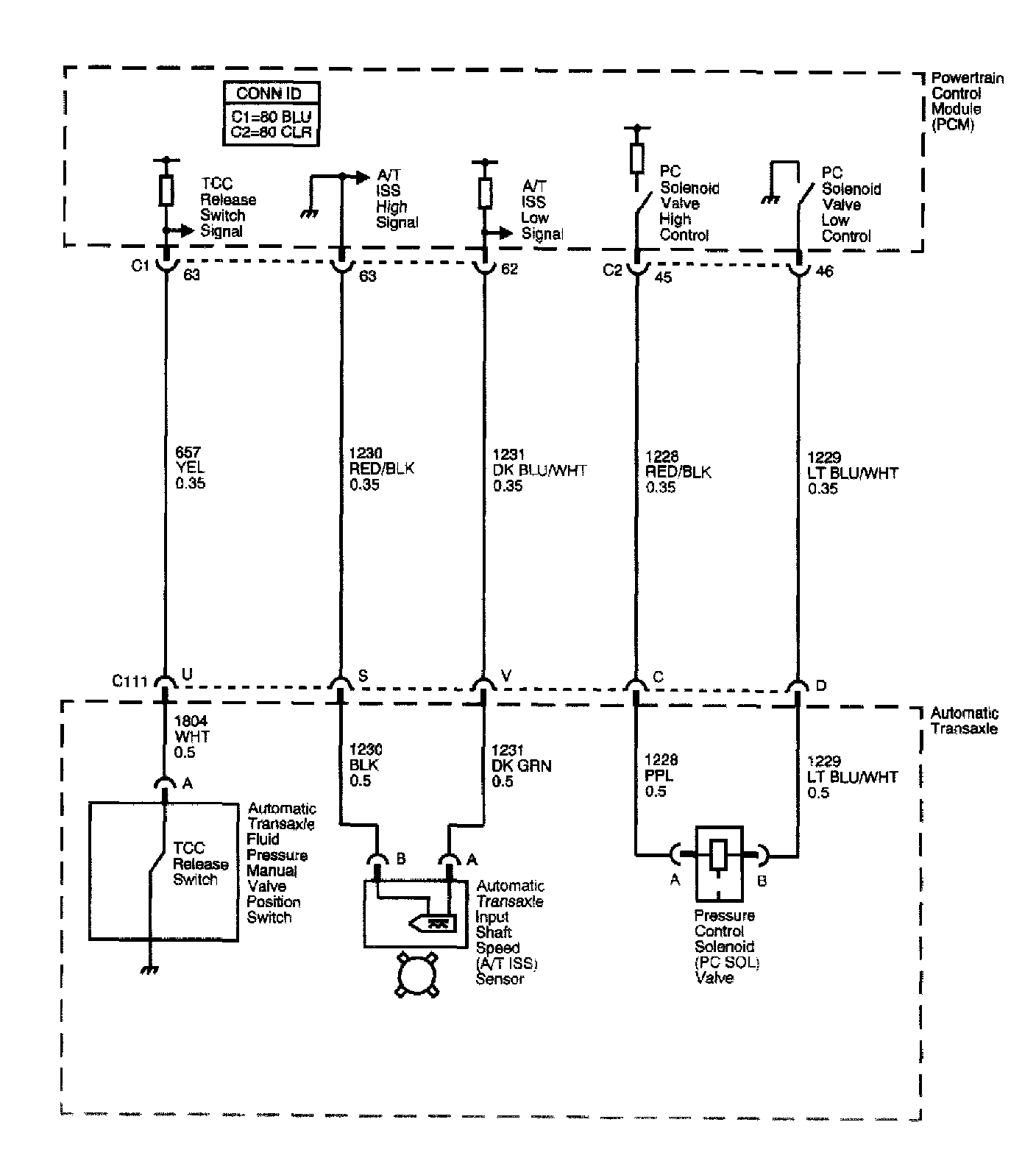

Switches, ISS And Pressure Control:

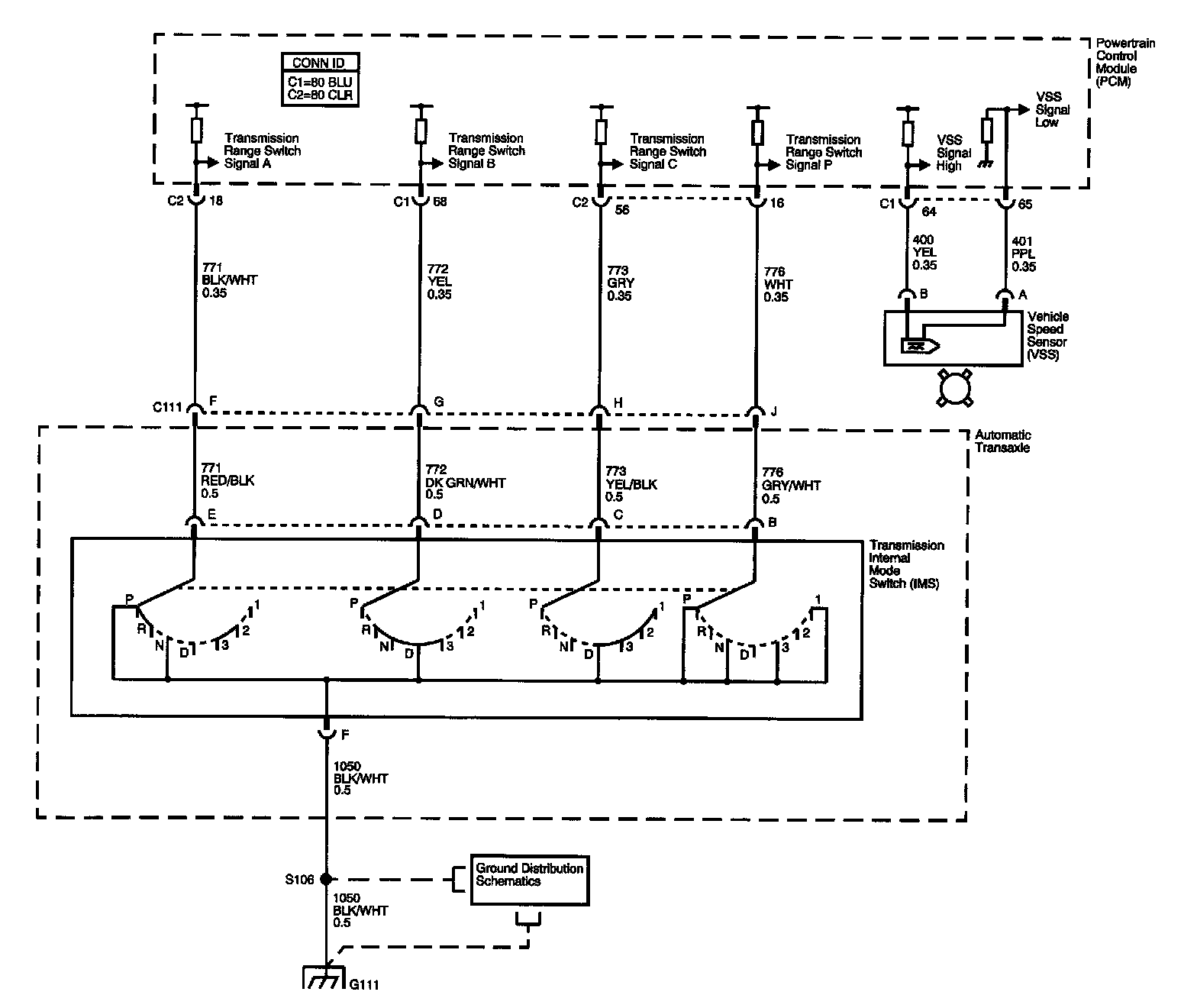

Transaxle Range Switch And VSS:
