Home >> Pontiac >> 2003 >> Grand AM L4-2.2L VIN F >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> Forward Clutch Support Assembly

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

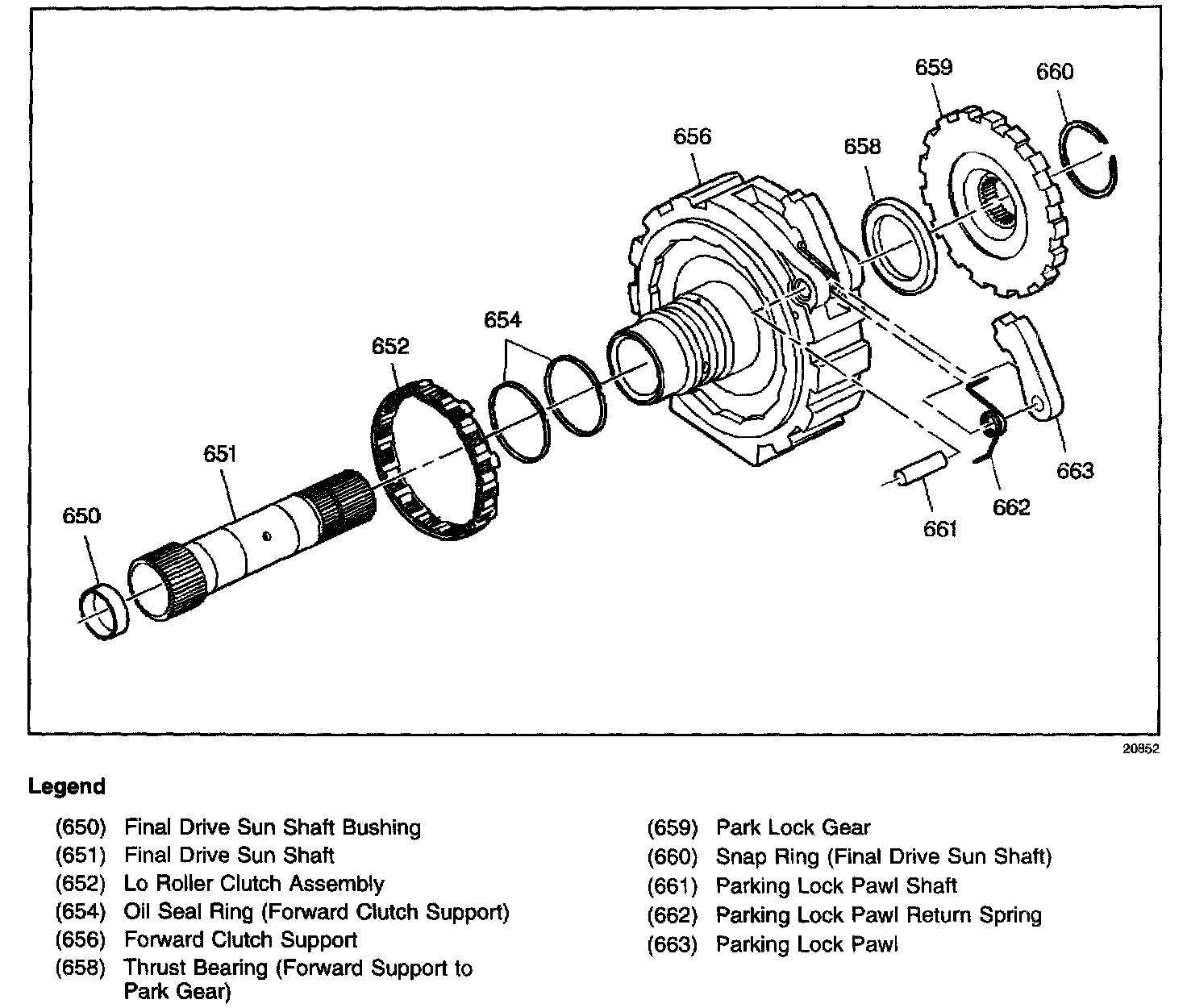

Forward Clutch Support Assembly
