Fuse Block: Locations

Fuse Block:

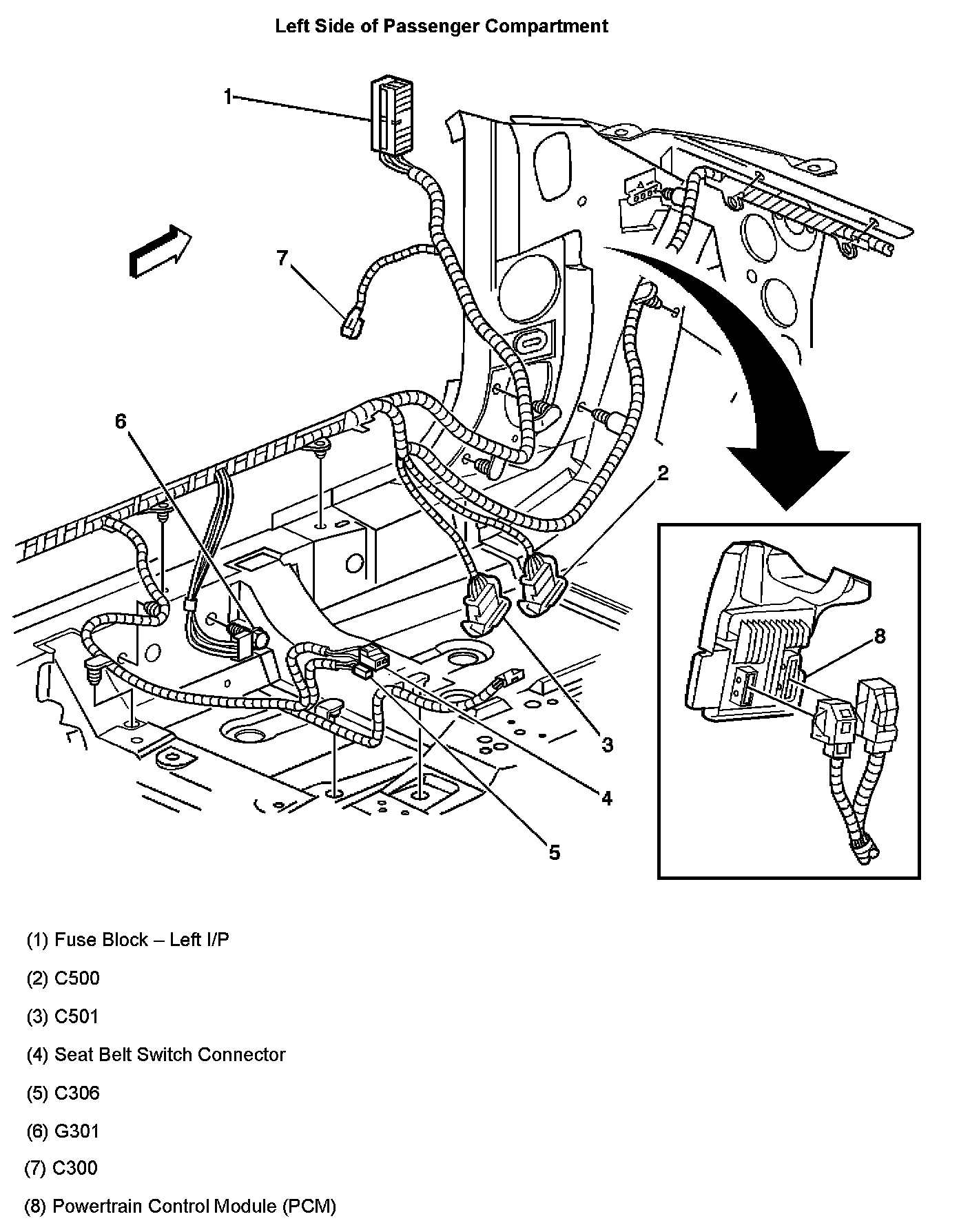

Left Side Of Passenger Compartment:

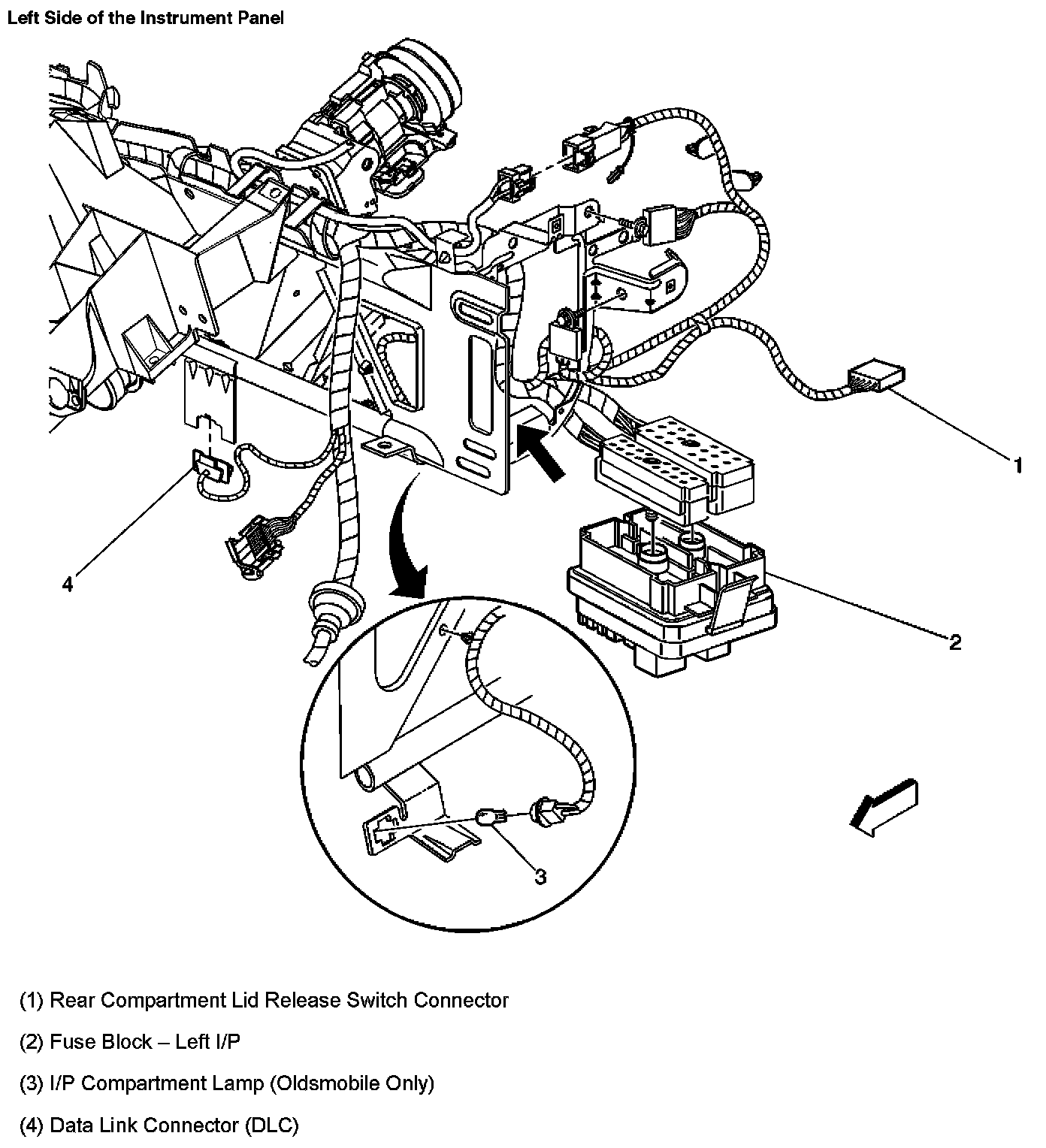

Left Side Of The Instrument Panel:

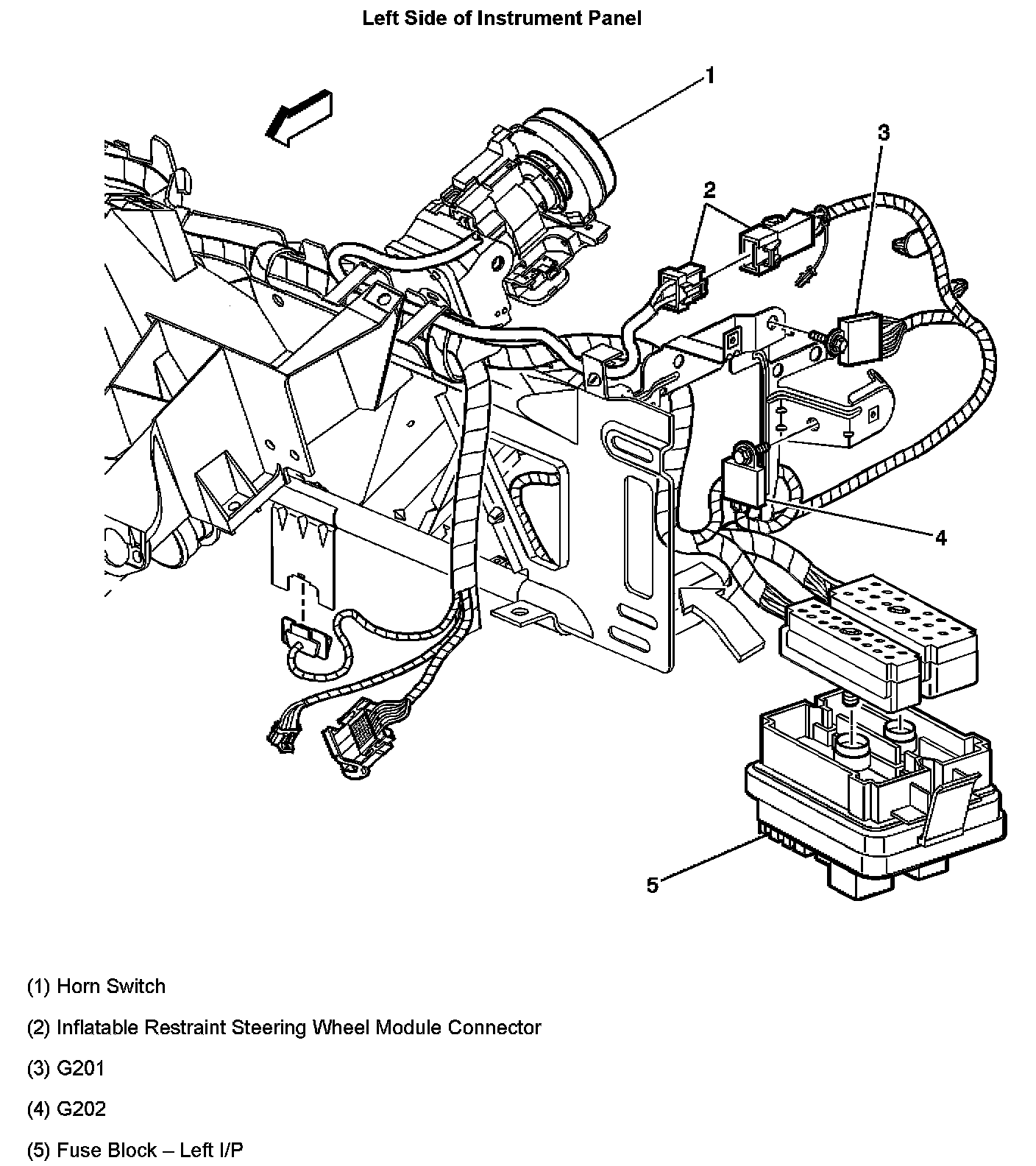

Left Side Of Instrument Panel:



IP Harness - RH:
