Power Windows Inoperative - Lockout Function

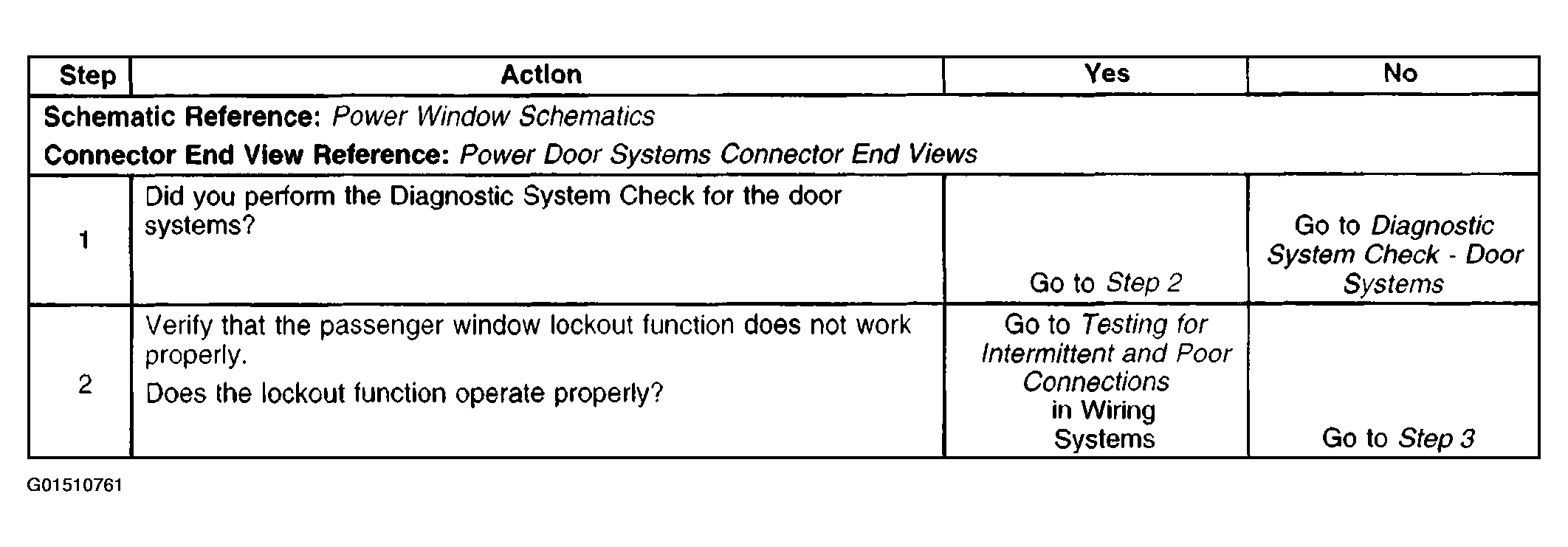

Fig 1: Power Windows Inoperative - Lockout Function Symptom Diagnostic Procedure Chart (1 Of 2)
G01510761Courtesy of GENERAL MOTORS CORP.

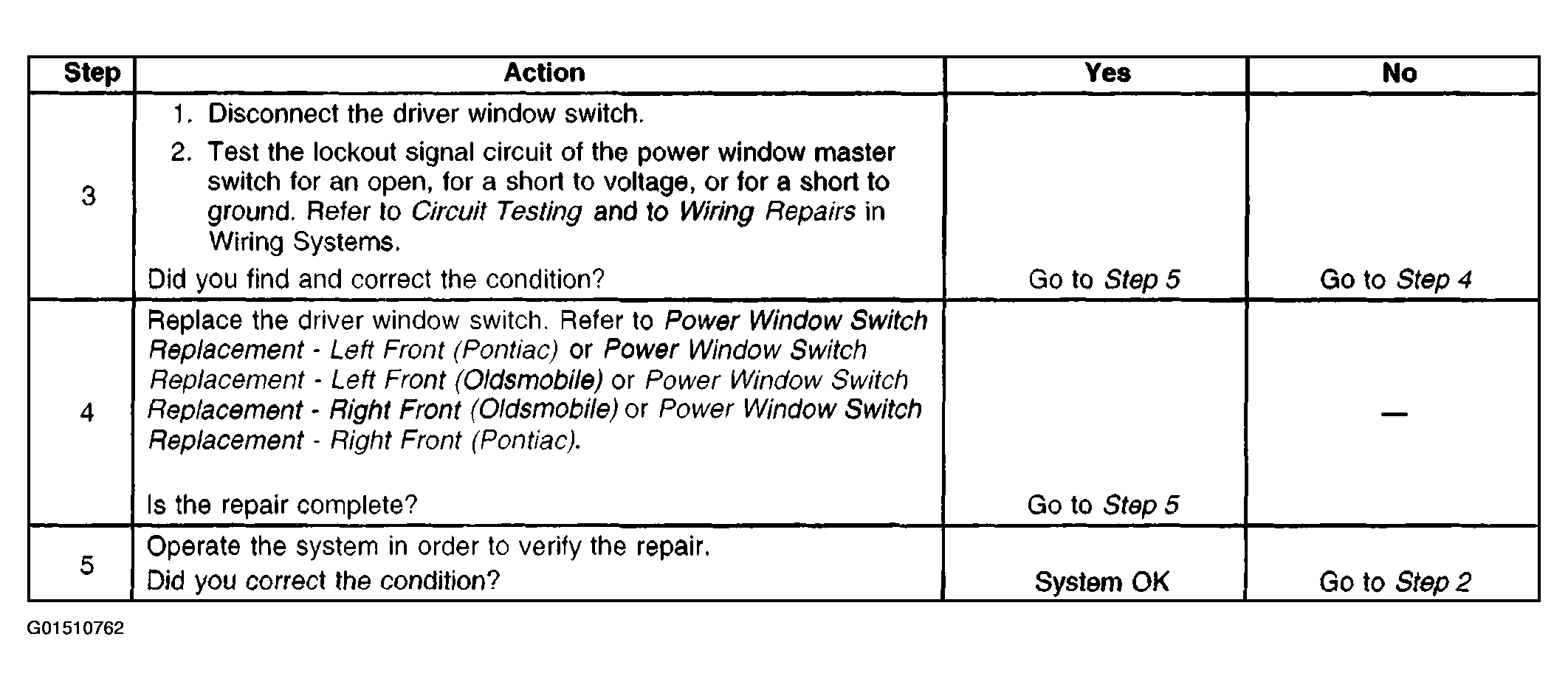

Fig 2: Power Windows Inoperative - Lockout Function Symptom Diagnostic Procedure Chart (2 Of 2)
G01510762Courtesy of GENERAL MOTORS CORP.
