Diagnostic Information and Procedures
>>
Scan Tool Output Controls
>>
Electronic Brake Control Module (EBCM)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Electronic Brake Control Module (EBCM)

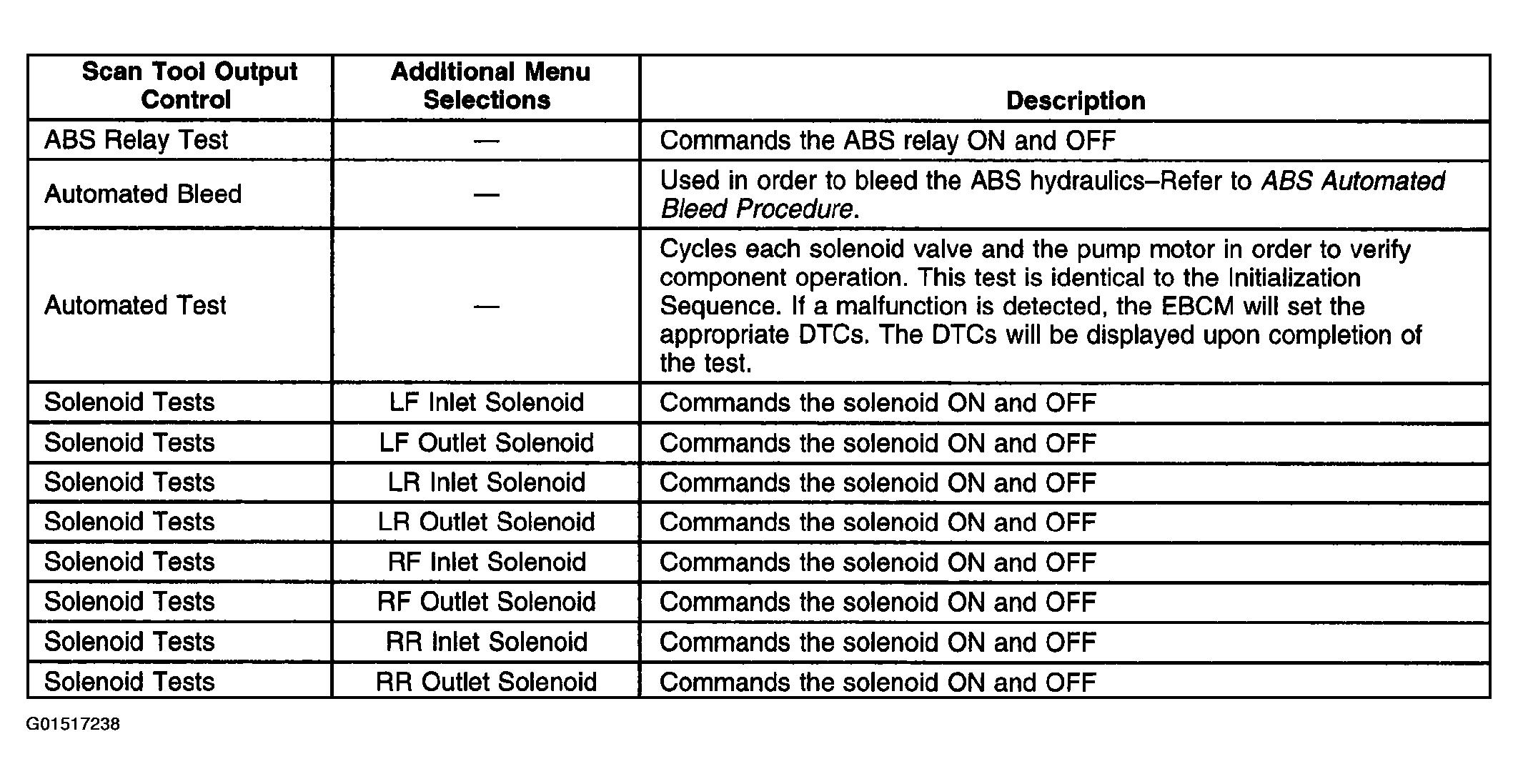

Fig 1: Electronic Brake Control Module (EBCM)
Courtesy of GENERAL MOTORS CORP.
