Installation Procedure

  1. Install the upper clip of the AT shift lock control onto the upper pivot point, and the lower clip onto the lower pivot point.
  2. Install the center console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (PONTIAC) or CONSOLE REPLACEMENT - FRONT FLOOR (OLDSMOBILE) in Instrument Panel, Gages, and Console.
  3. Connect the electrical connector to the AT shift lock control.
  4. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

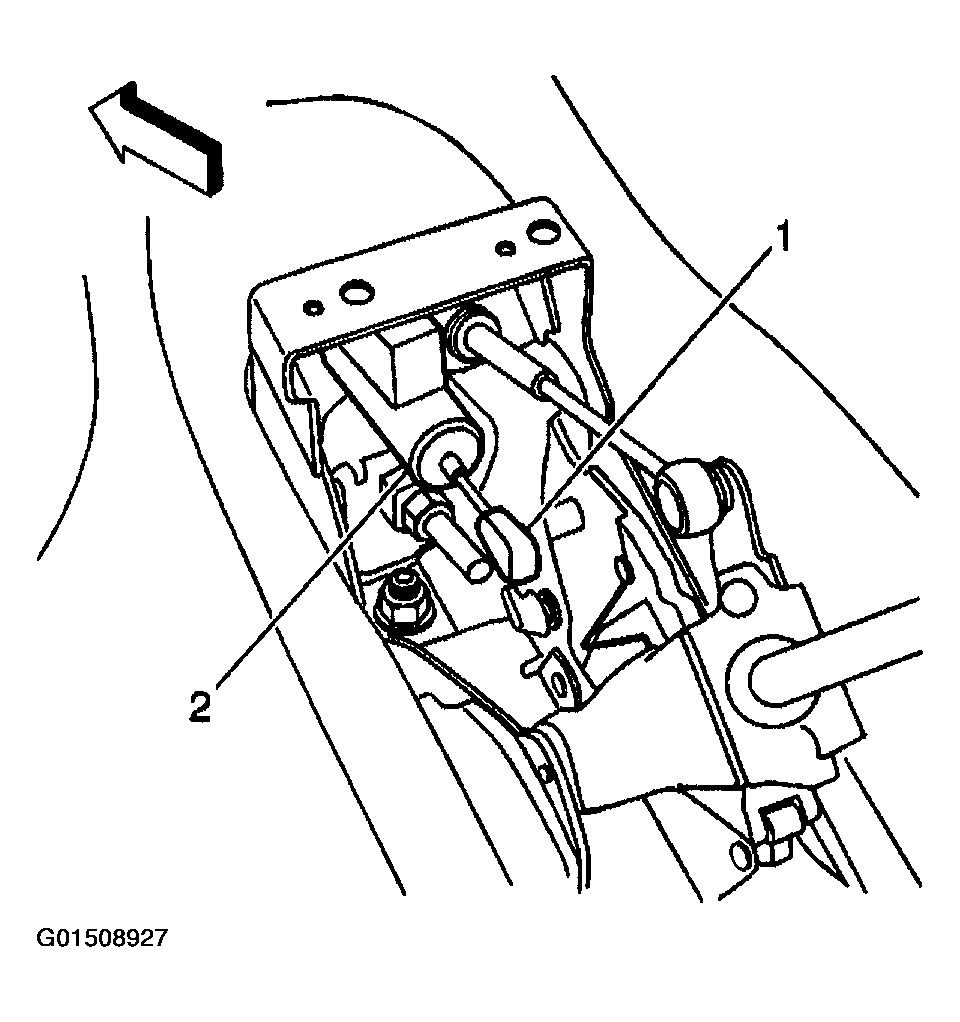

    Fig 1: Installing Both Ends Of Automatic Transmission Shift Lock Control Onto Pivot Points
    G01508927Courtesy of GENERAL MOTORS CORP.
