Removal Procedure

  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Remove the center console. Refer to CONSOLE REPLACEMENT - FRONT FLOOR (PONTIAC) or CONSOLE REPLACEMENT - FRONT FLOOR (OLDSMOBILE) in Instrument Panel, Gages, and Console.
  3. Disconnect the electrical connector from the shift lock control for the automatic transmission (AT).

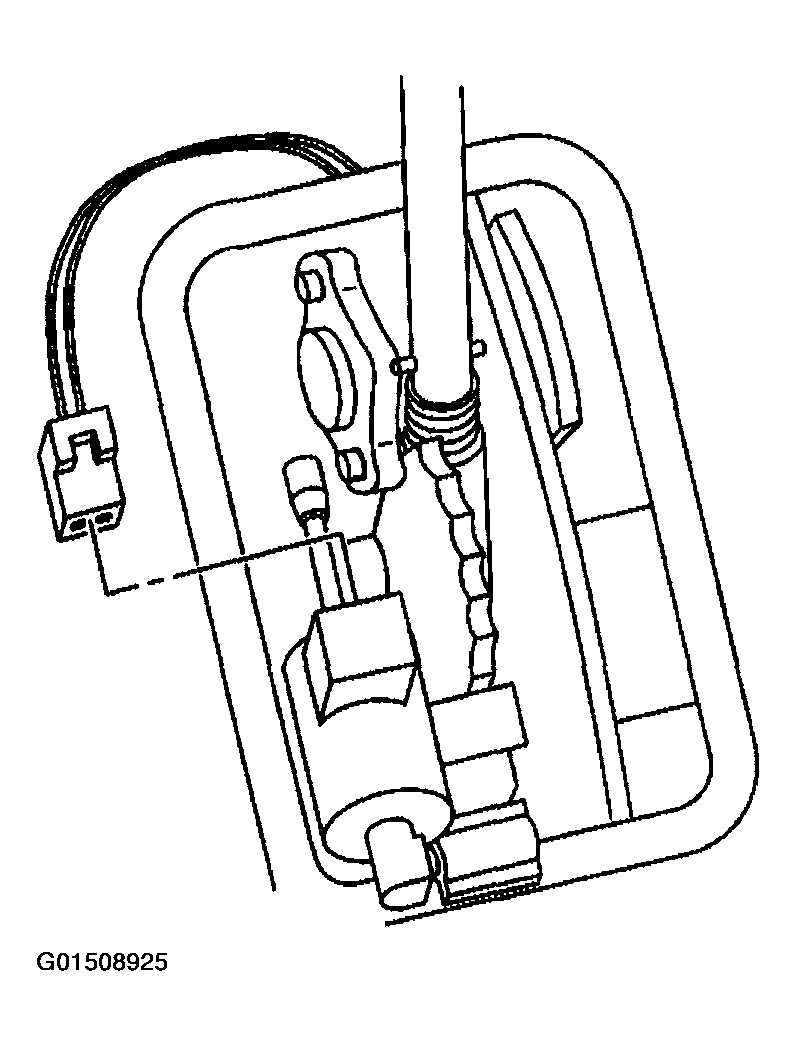

    Fig 1: Disconnecting Electrical Connector From Shift Lock Control For Automatic Transmission
    G01508925Courtesy of GENERAL MOTORS CORP.
  4. Remove both ends of the AT shift lock control from pivot points (1).

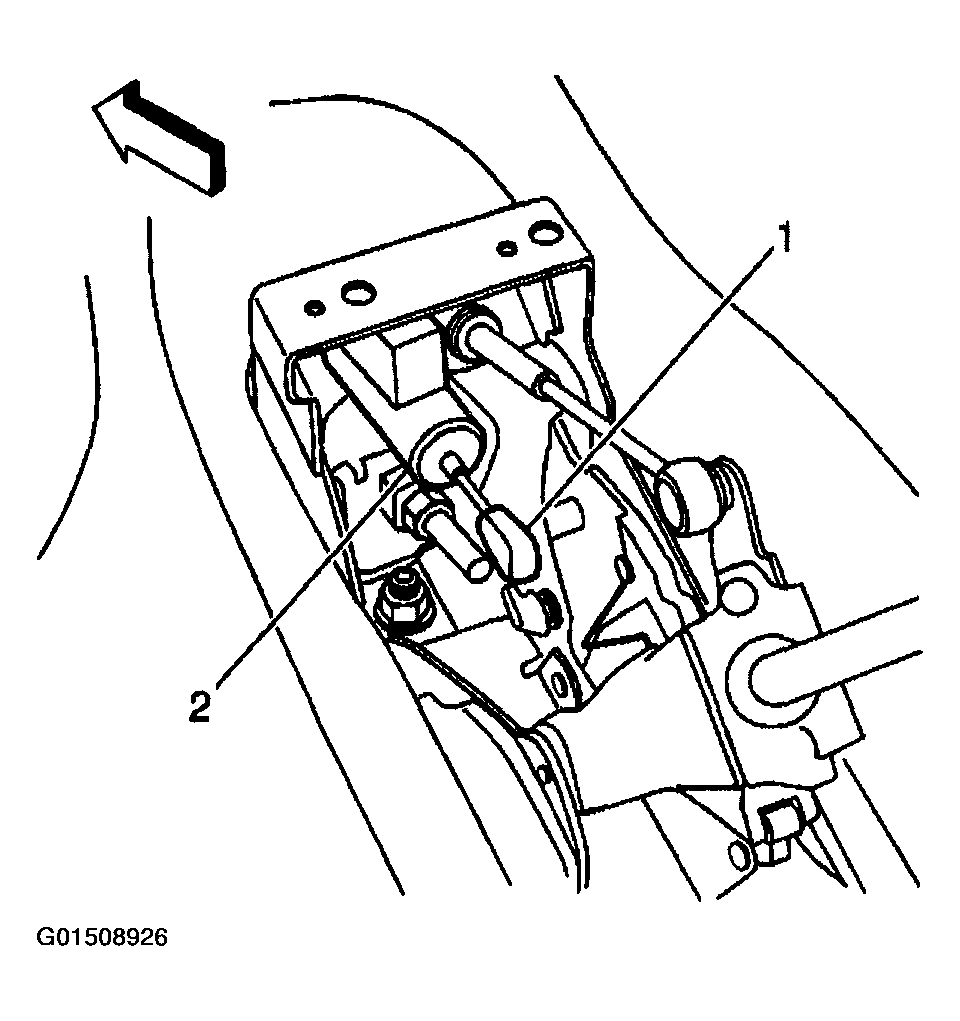

    Fig 2: Removing Both Ends Of Automatic Transmission Shift Lock Control From Pivot Points
    G01508926Courtesy of GENERAL MOTORS CORP.
