Horns Component Views

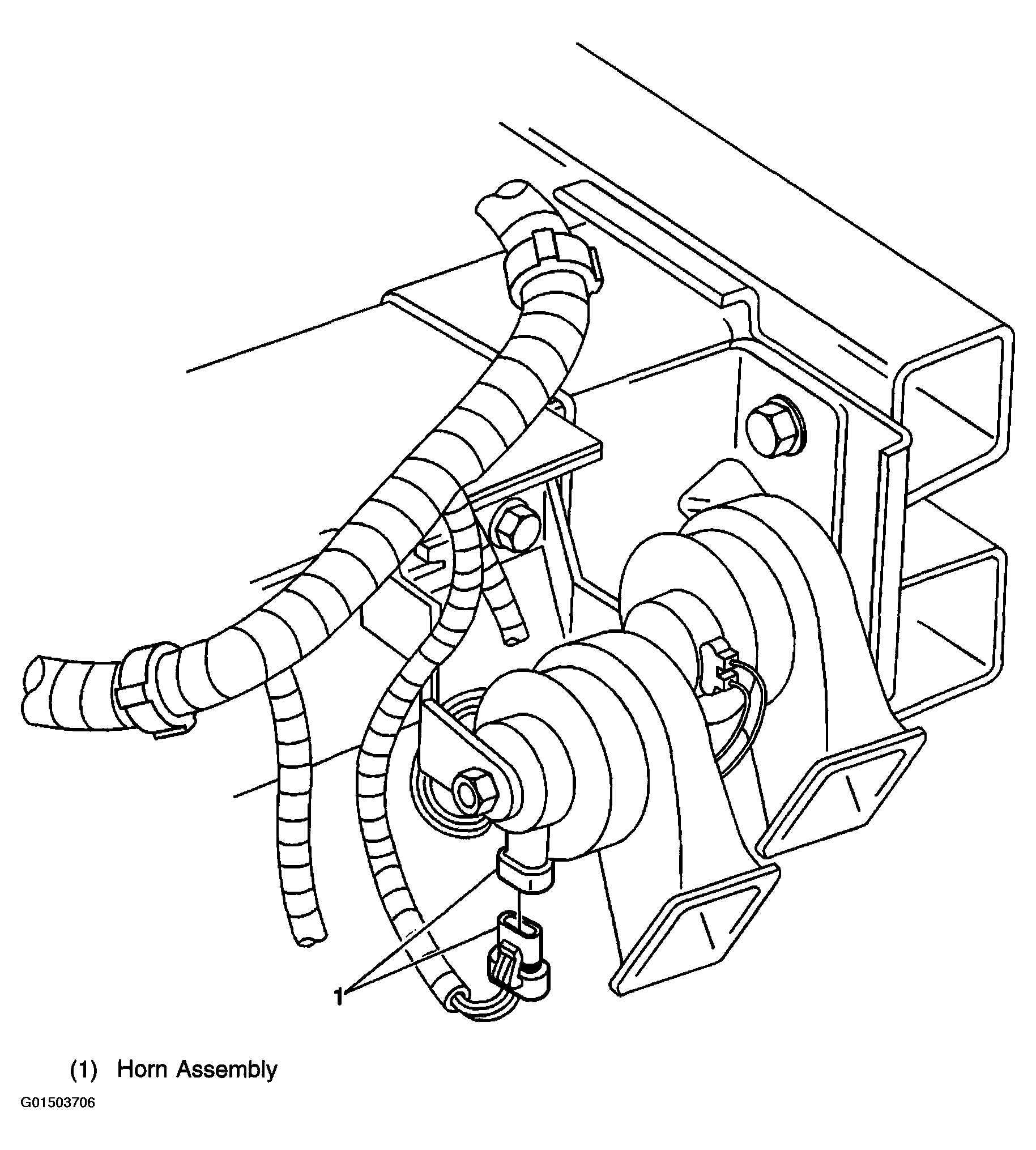

Fig 1: Horn Assembly (Right Front Frame Rail, Near Fender) Component View
G01503706Courtesy of GENERAL MOTORS CORP.

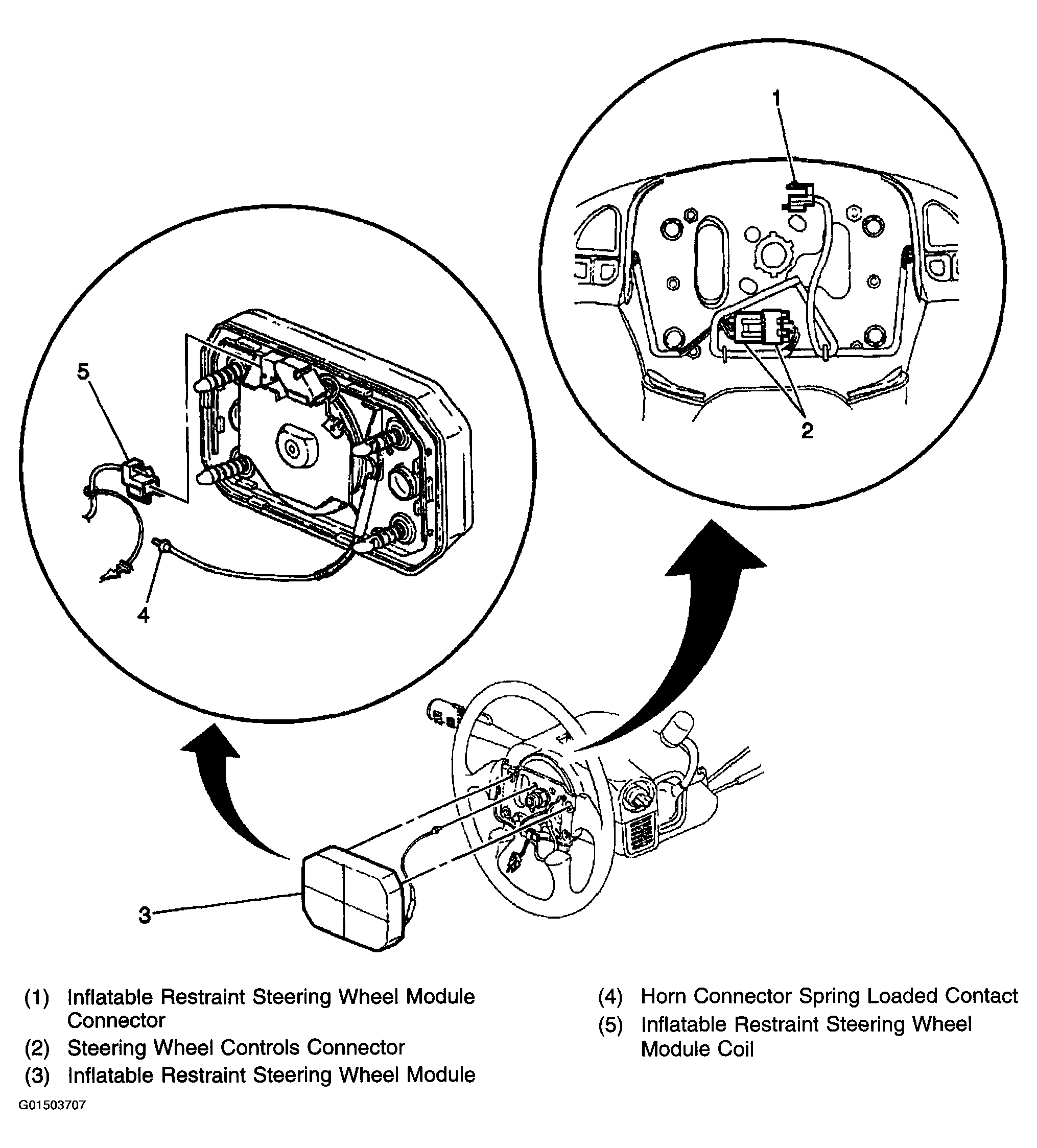

Fig 2: Horn Component View (Front Of Steering Wheel)
G01503707Courtesy of GENERAL MOTORS CORP.
