Horns Connector End Views

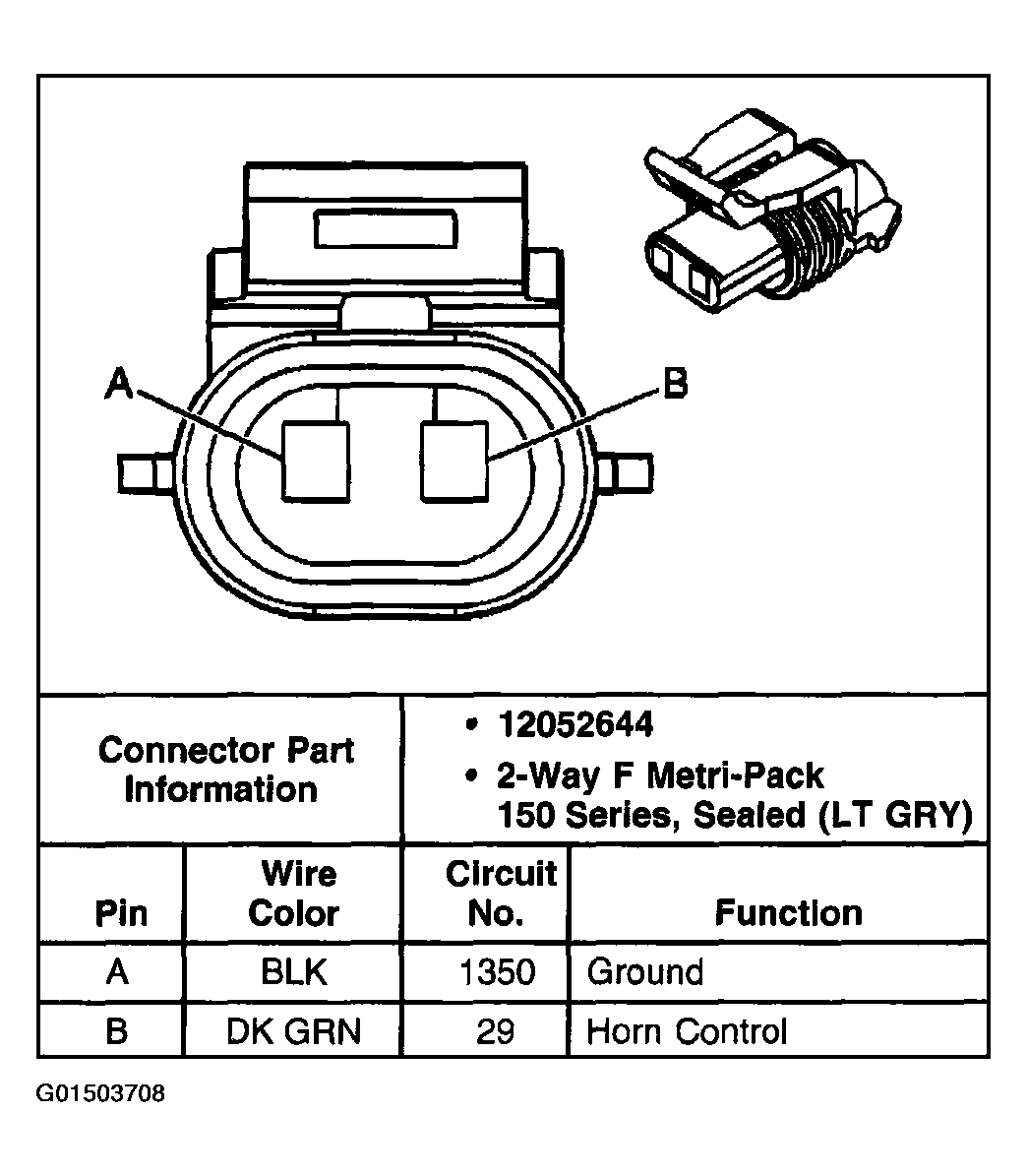

Fig 1: Horn Assembly Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
