Scan Tool Data List

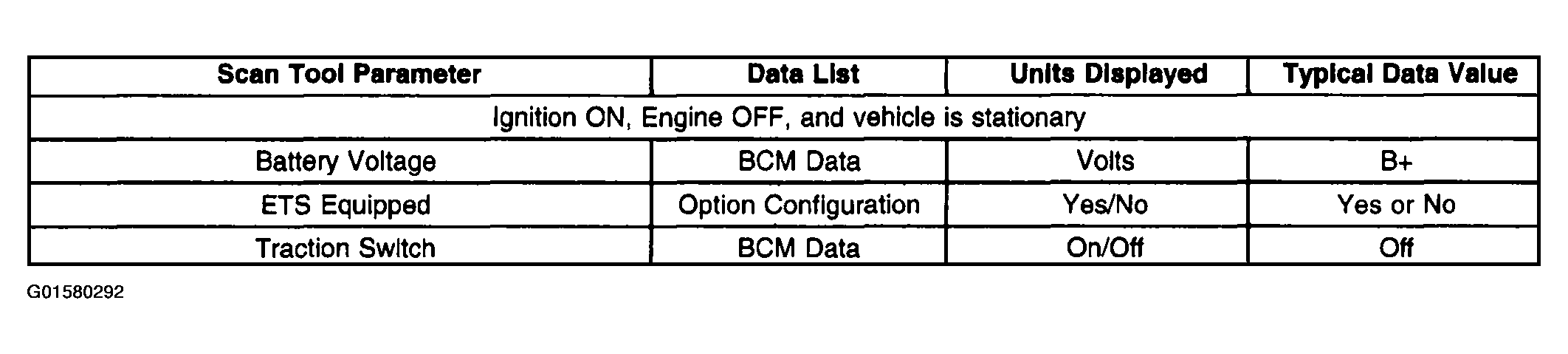

Fig 1: Body Control Module - Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.

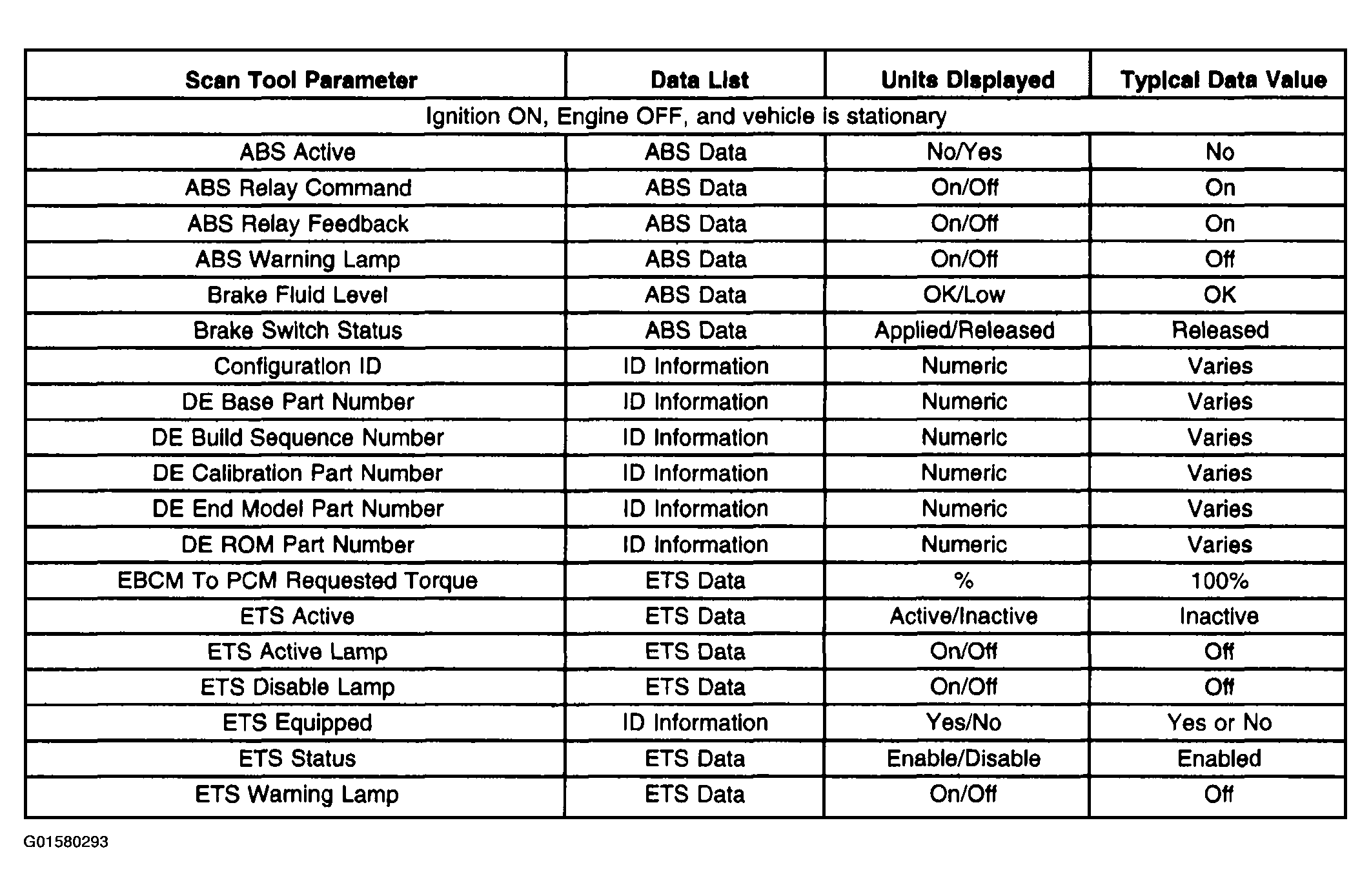

Fig 2: Electronic Brake Control Module - Scan Tool Data List (1 Of 2)

Courtesy of GENERAL MOTORS CORP.

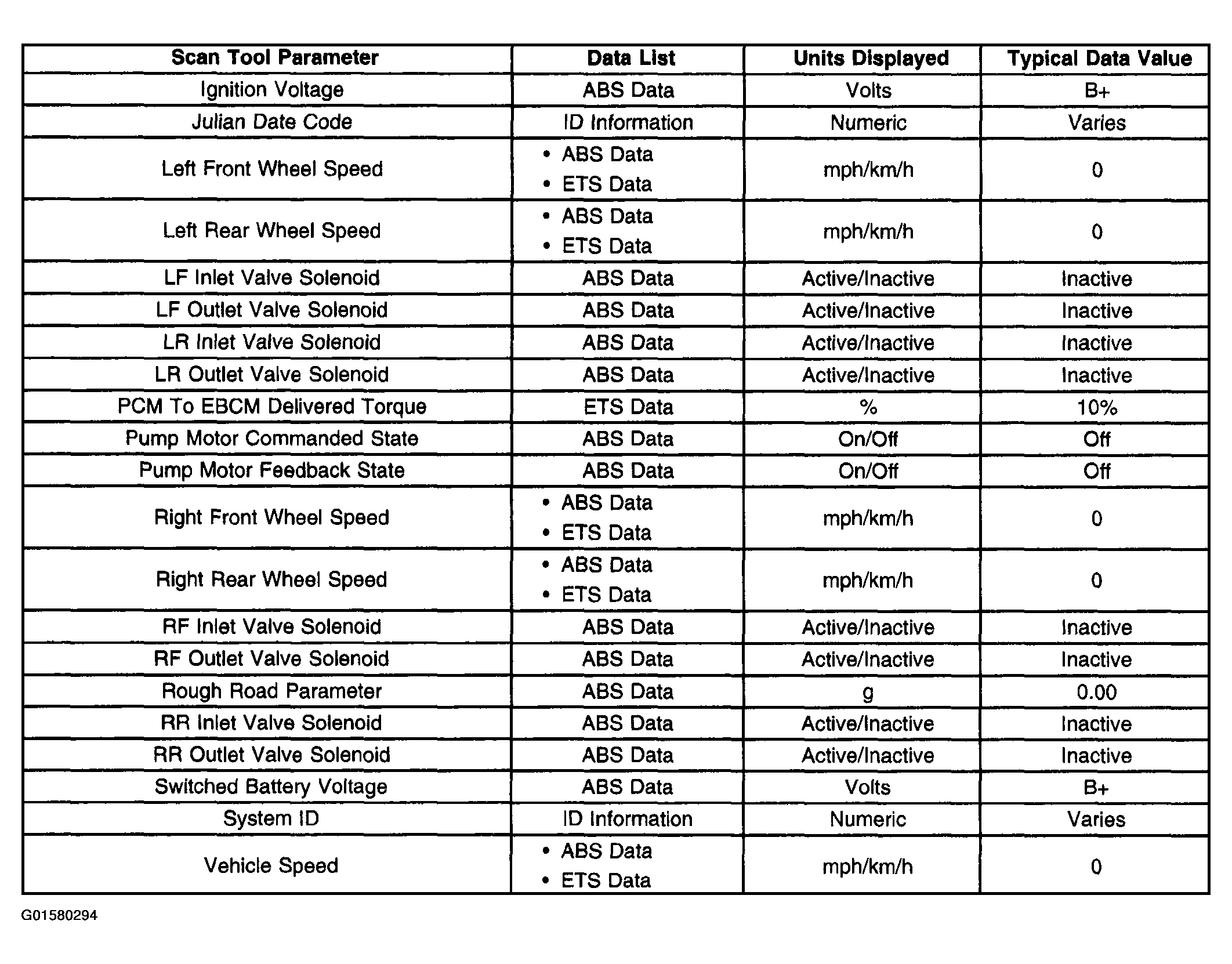

Fig 3: Electronic Brake Control Module - Scan Tool Data List (2 Of 2)

Courtesy of GENERAL MOTORS CORP.

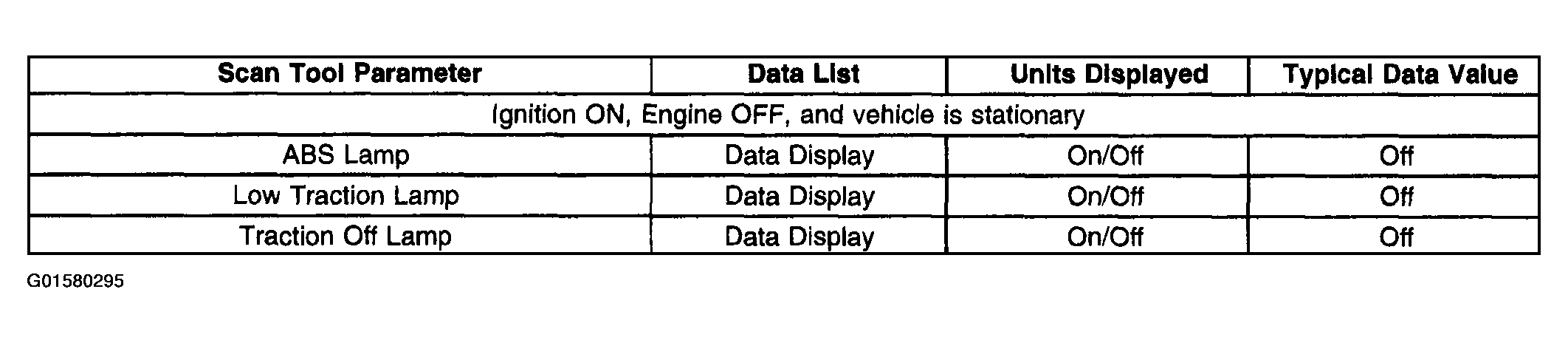

Fig 4: Instrument Panel Cluster - Scan Tool Data List

Courtesy of GENERAL MOTORS CORP.
