Removal Procedure

  1. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (PONTIAC)  or TRIM PANEL REPLACEMENT - SIDE FRONT DOOR (CHEVROLET)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (PONTIAC)  or TRIM PANEL REPLACEMENT - SIDE REAR DOOR (CHEVROLET)  .
  2. Drill out the rivets (3) which retain the door armrest hanger plate (1).
  3. Remove the door armrest hanger plate (1) from the door.

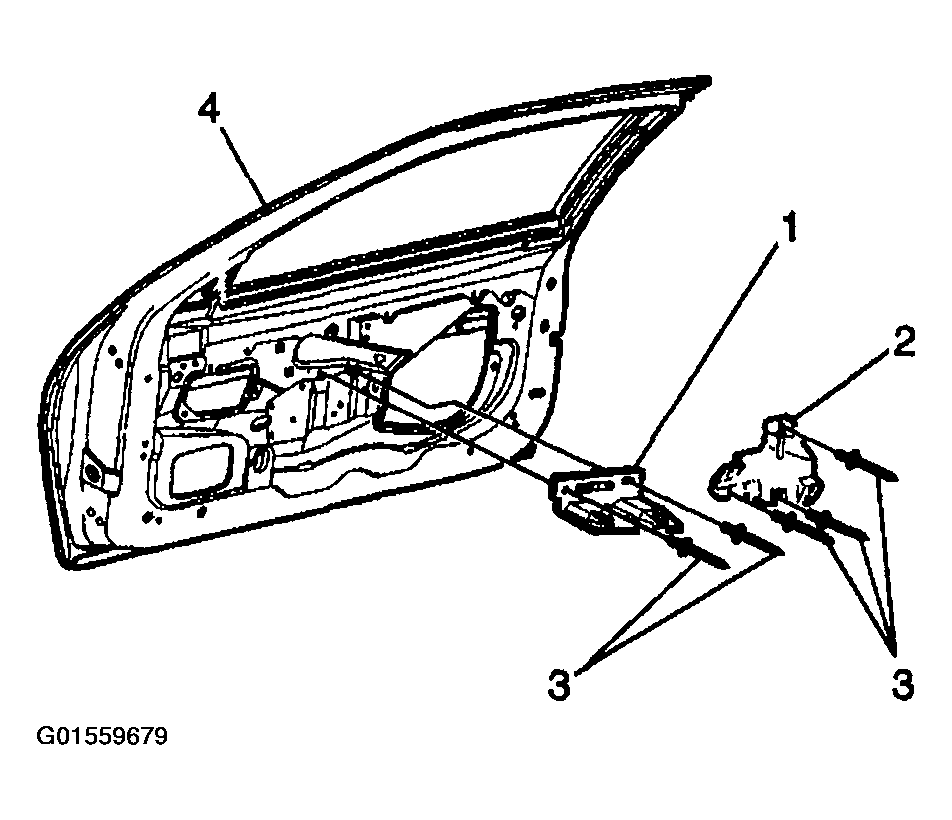

    Fig 1: Removing Door Armrest Hanger Plate From Door
    G01559679Courtesy of GENERAL MOTORS CORP.
