Removal Procedure

  1. Remove the upper trim finish panel from the front door. Refer to TRIM PANEL REPLACEMENT - UPPER EXTENSION  .
  2. Remove the rear view mirror sound absorber.
  3. Disconnect the rear view mirror electrical connector (3), if equipped.

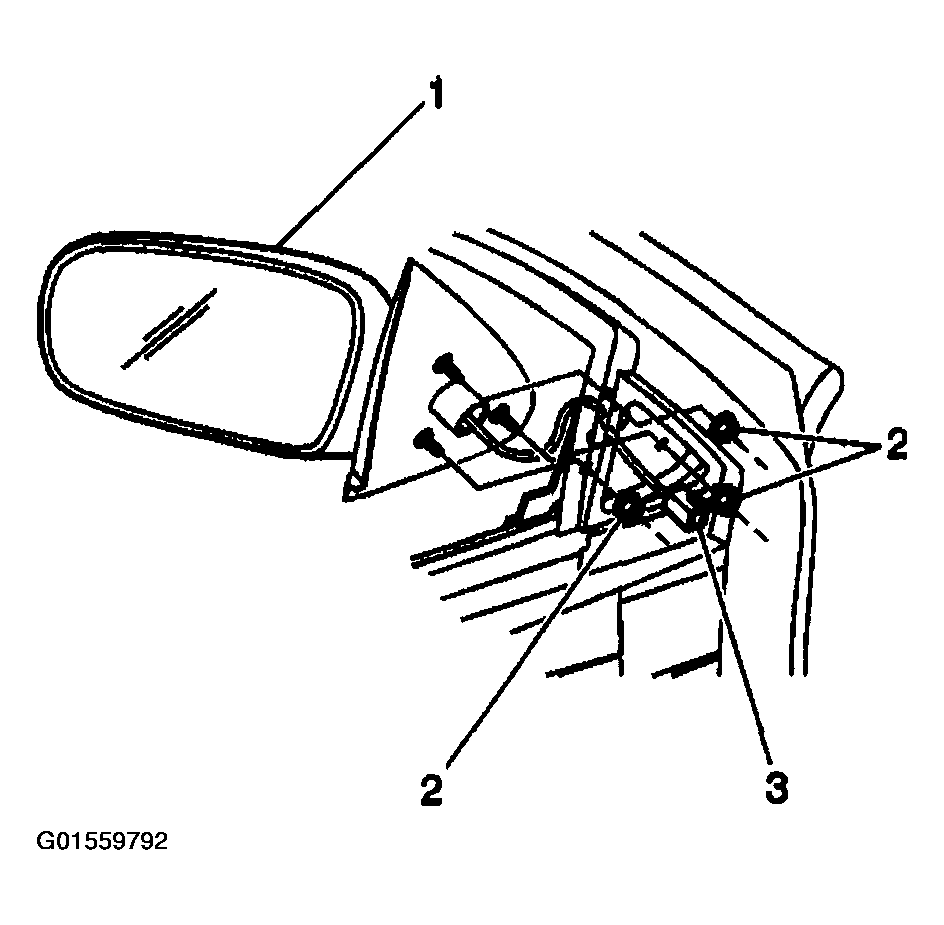

    Fig 1: Disconnecting Rear View Mirror Electrical Connector
    G01559792Courtesy of GENERAL MOTORS CORP.
  4. Remove the rear view mirror nuts (2).
  5. Remove the rear view mirror (1) from the door.

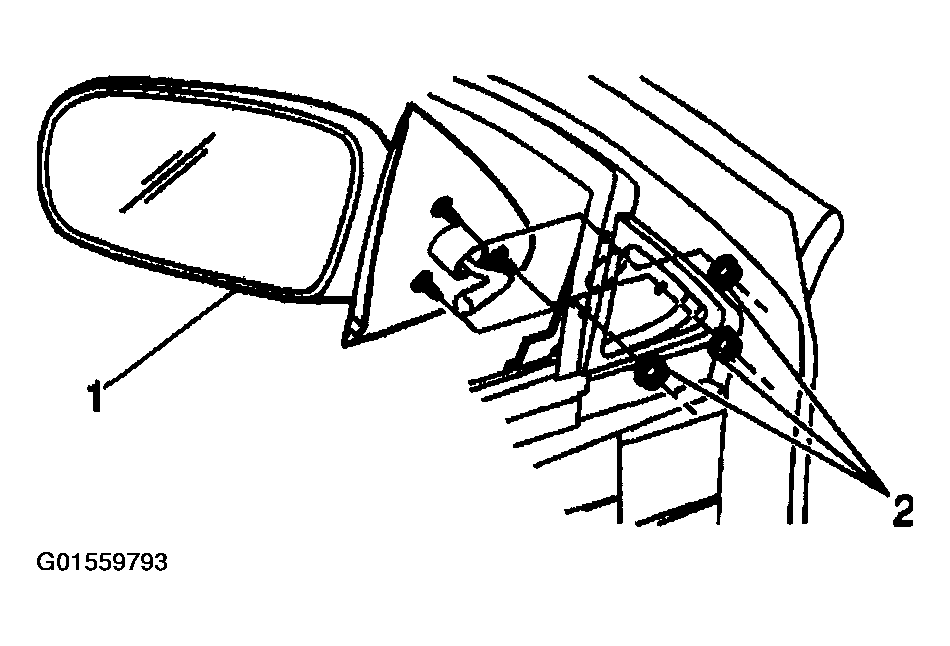

    Fig 2: Removing Rear View Mirror From Door
    G01559793Courtesy of GENERAL MOTORS CORP.
