Horns Connector End Views

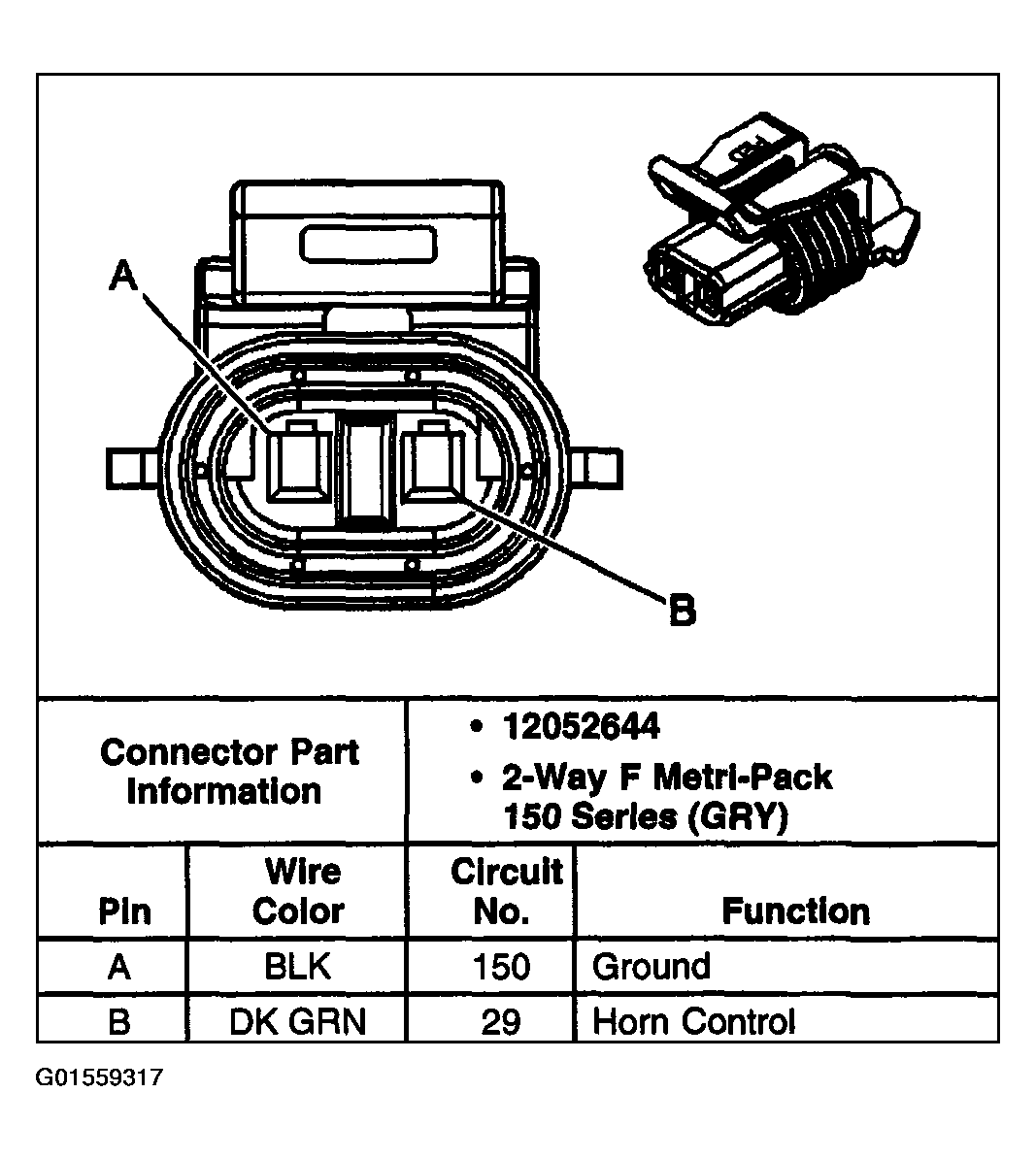

Fig 1: Identifying Horn Connector
G01559317Courtesy of GENERAL MOTORS CORP.
Fig 2: Identifying Horn Relay Assembly
G01559318Courtesy of GENERAL MOTORS CORP.
