Shim Size Specifications

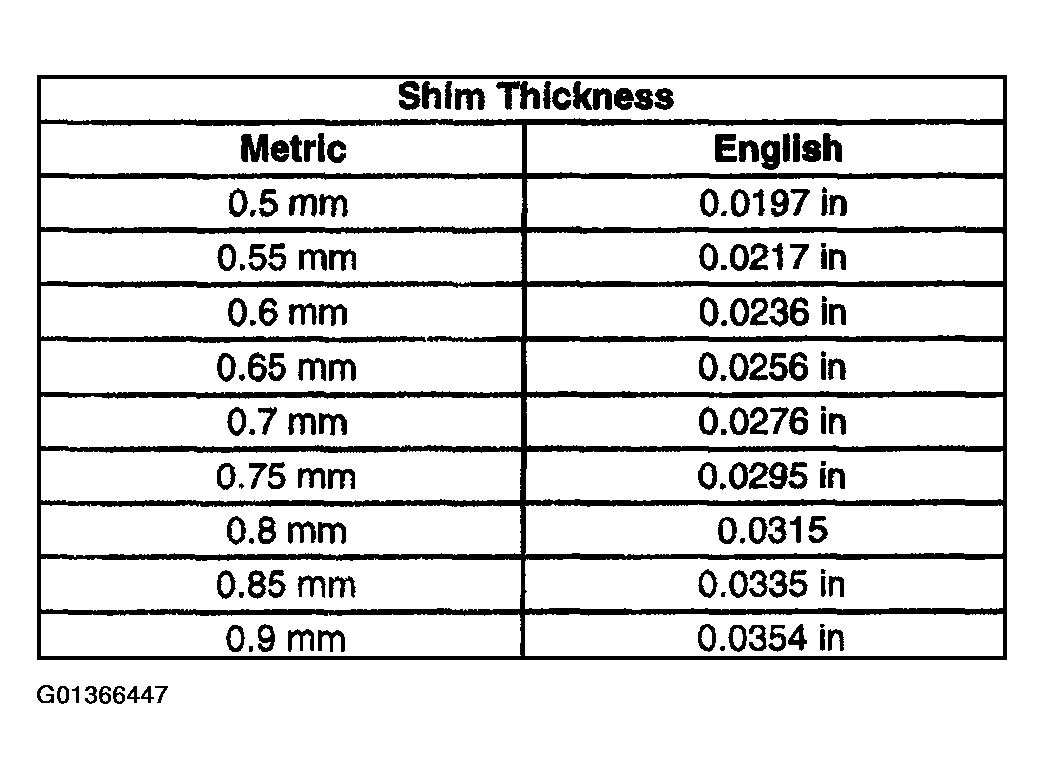

Fig 1: Shim Size Specifications Table (1 Of 2)
G01366447Courtesy of GENERAL MOTORS CORP.

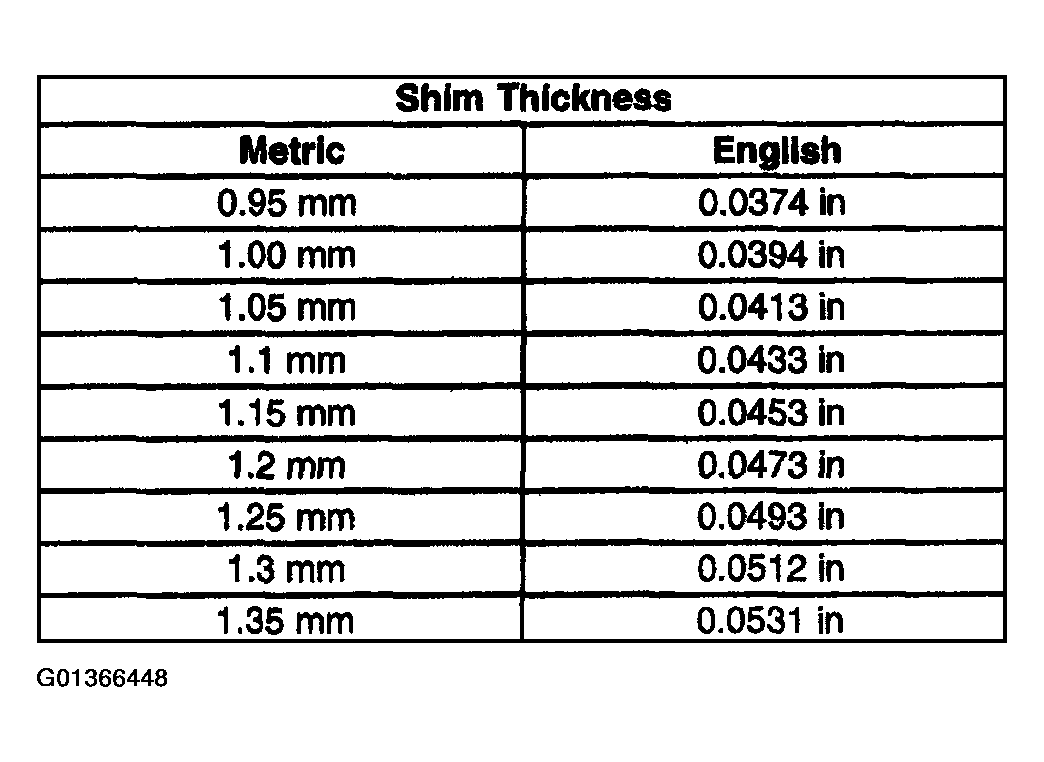

Fig 2: Shim Size Specifications Table (2 Of 2)
G01366448Courtesy of GENERAL MOTORS CORP.
