Removal Procedure

Disconnect the negative battery cable.
Remove the console.
Lift up on the cable retainers.
Disconnect the cable ends from the shifter.

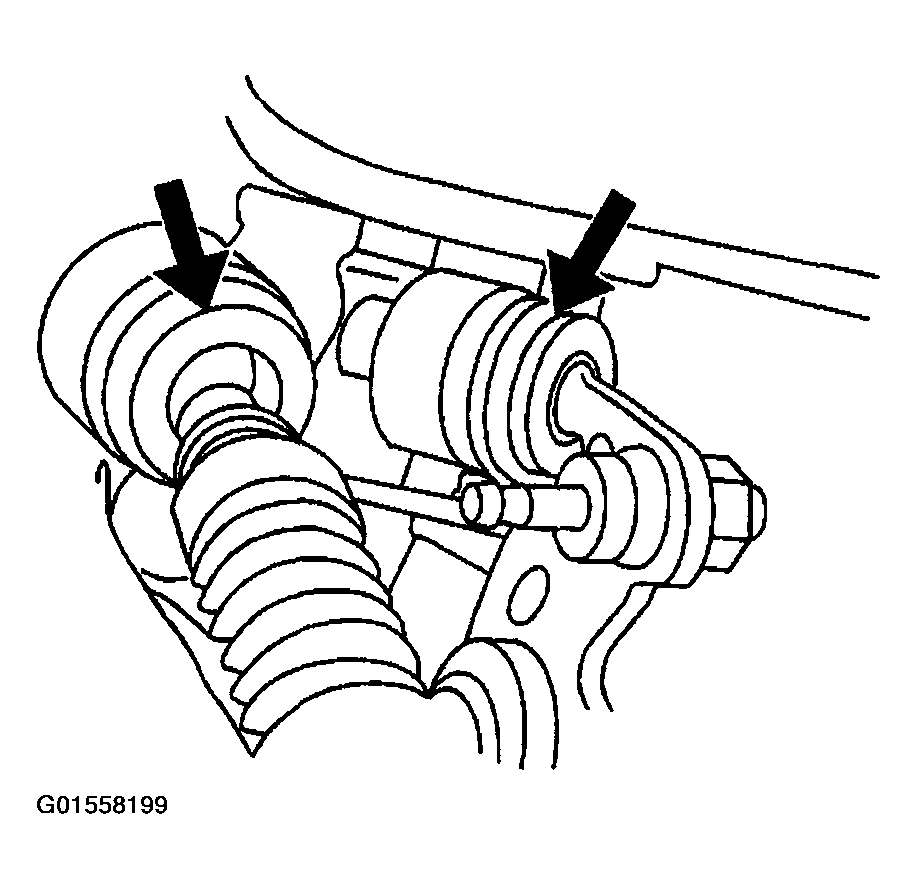

Fig 1: Disconnecting Cable Ends From Shifter
Courtesy of GENERAL MOTORS CORP.
Depress the locking tabs and remove the forward cable from the anchor.
Remove the Air Inlet Duct.

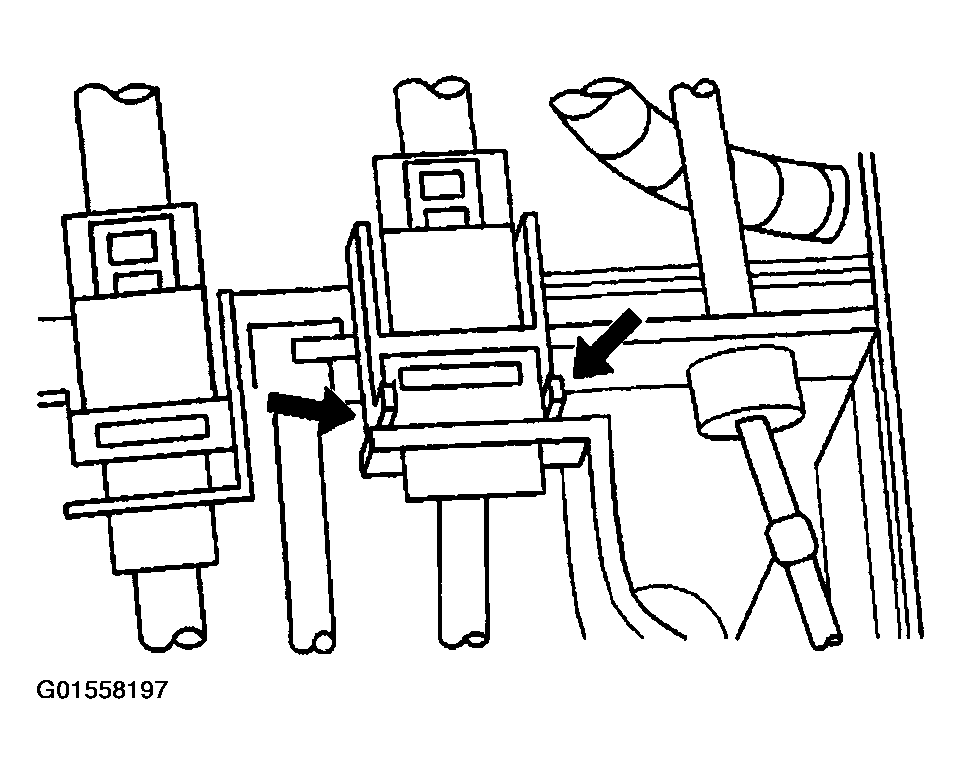

Fig 2: Depressing Locking Tabs
Courtesy of GENERAL MOTORS CORP.
On the transmission end, disconnect the cable from the shift actuator.

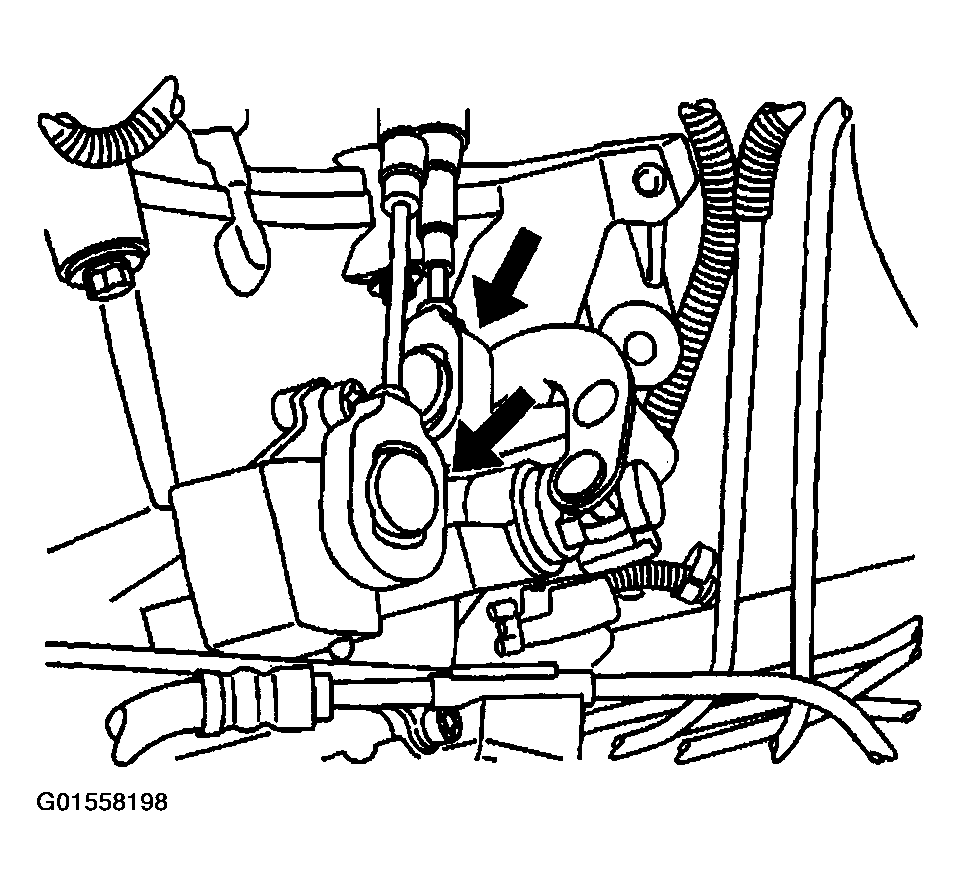

Fig 3: Disconnecting Cable From Shift Actuator
Courtesy of GENERAL MOTORS CORP.
Remove both cables from the underhood cable bracket.
Position aside the passenger front carpet.

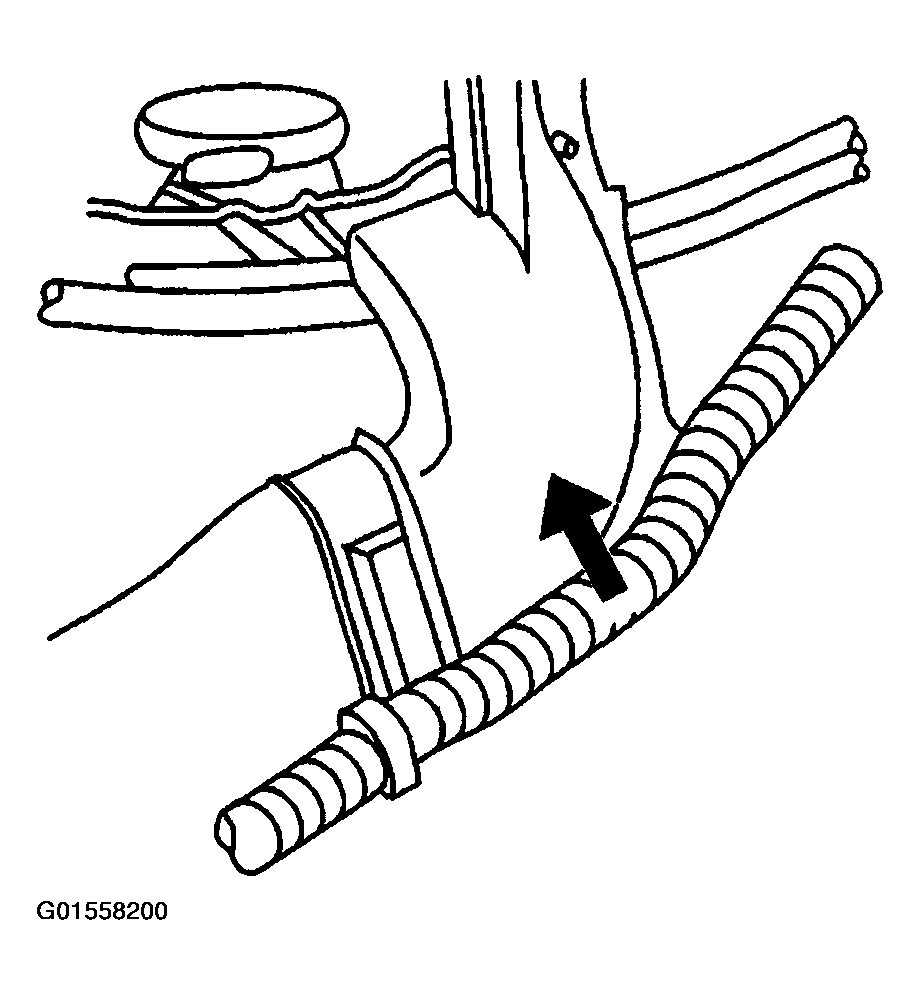

Fig 4: Removing Cables From Underhood Cable Bracket
Courtesy of GENERAL MOTORS CORP.
Remove the right rear floor duct elbow.

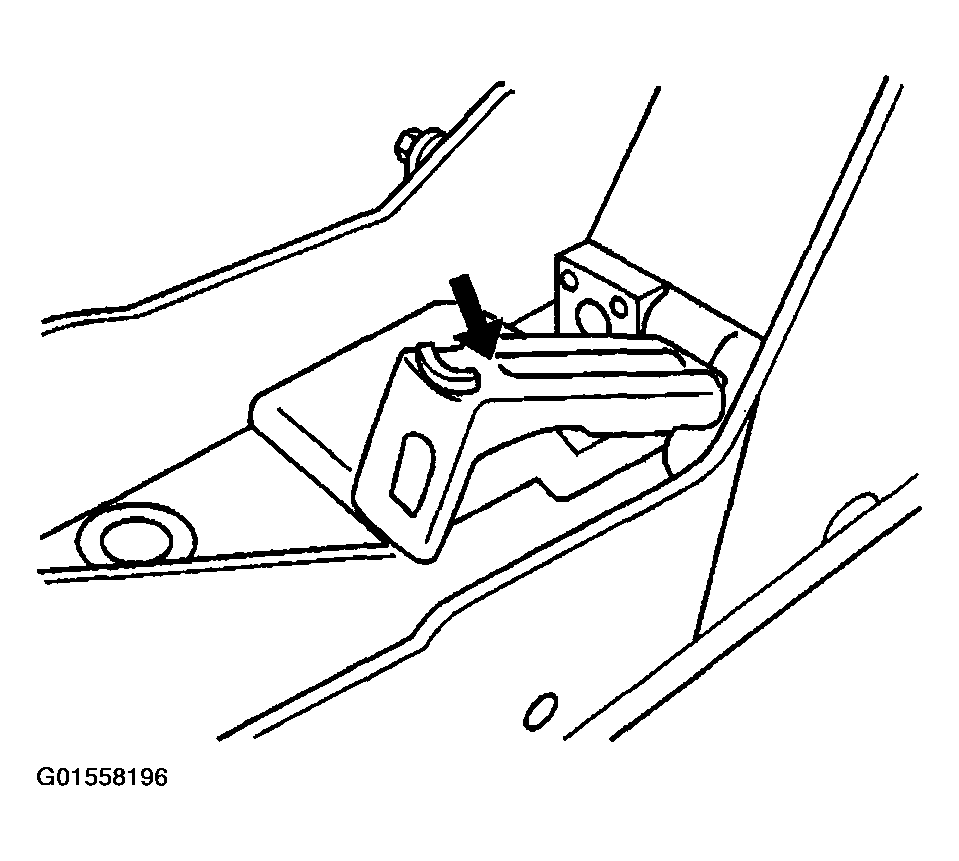

Fig 5: Removing Right Rear Floor Duct Elbow
Courtesy of GENERAL MOTORS CORP.
Separate the grommet from the floor plan.
Pull the cables through the passenger floor opening.

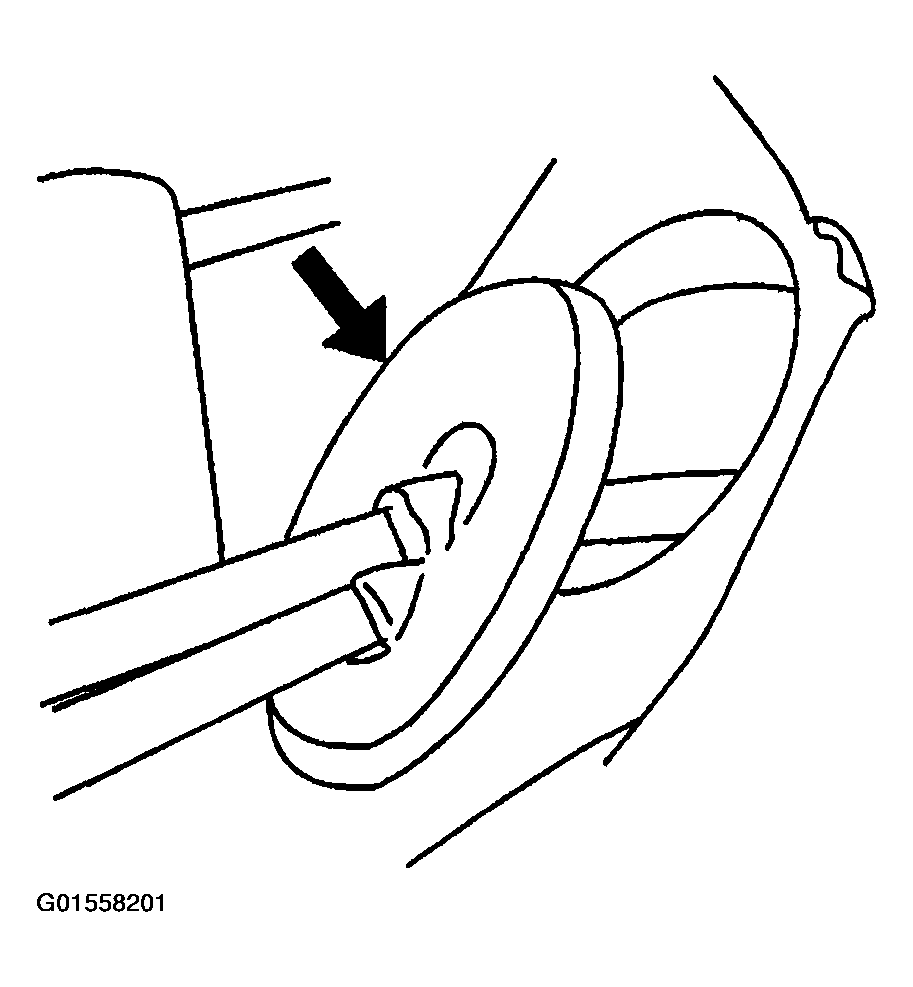

Fig 6: Separating Grommet From Floor Plan
Courtesy of GENERAL MOTORS CORP.
