Installation Procedure

Position the shifter on the studs and install the front 2 nuts.

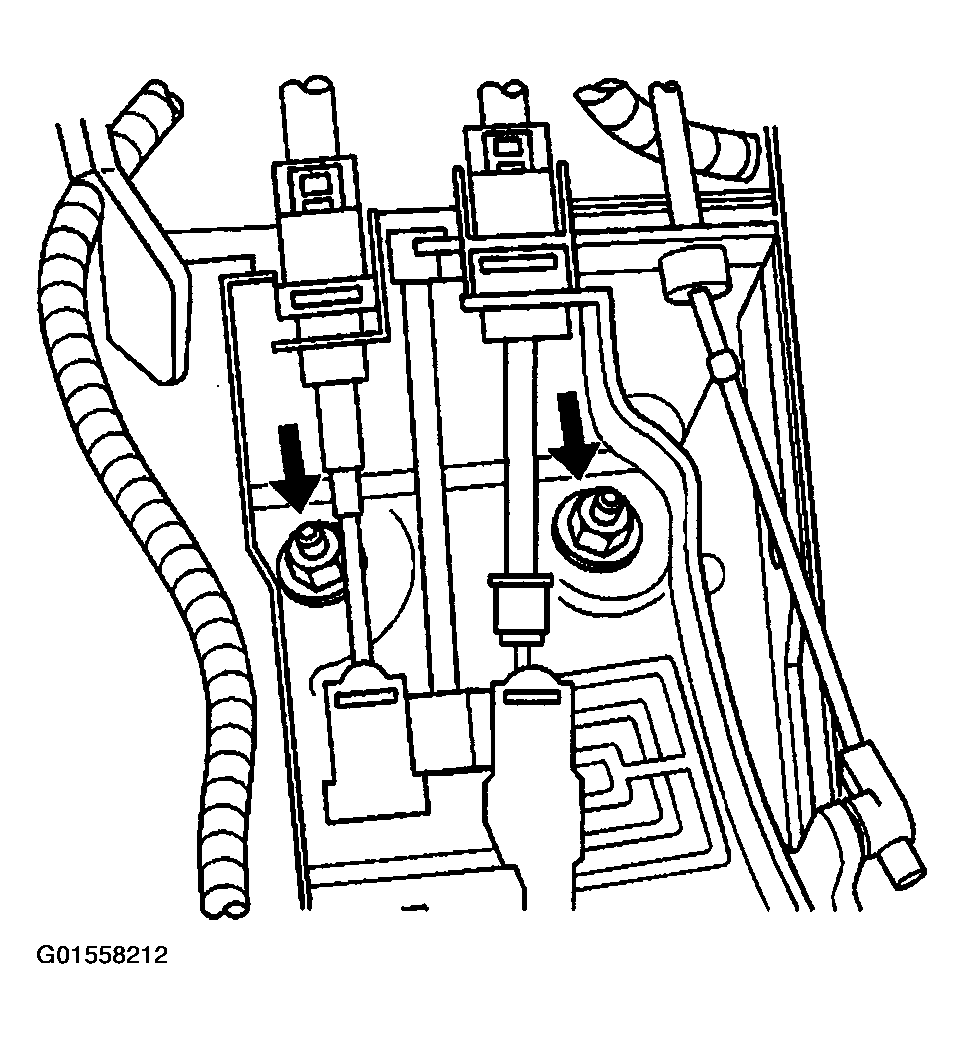

Fig 1: Installing Front 2 Nuts
Courtesy of GENERAL MOTORS CORP.
Install the 2 rear bolts.
Tighten

Tighten the nuts and bolts to 25 N.m (18 lb. ft).
Install the shift cables. Refer to Shift Control Cable Replacement .
Install the console.
