Removal Procedure

Remove the shift cables from the shifter assembly. Refer to Shift Control Cable Replacement .
Disconnect the shift interlock cable.

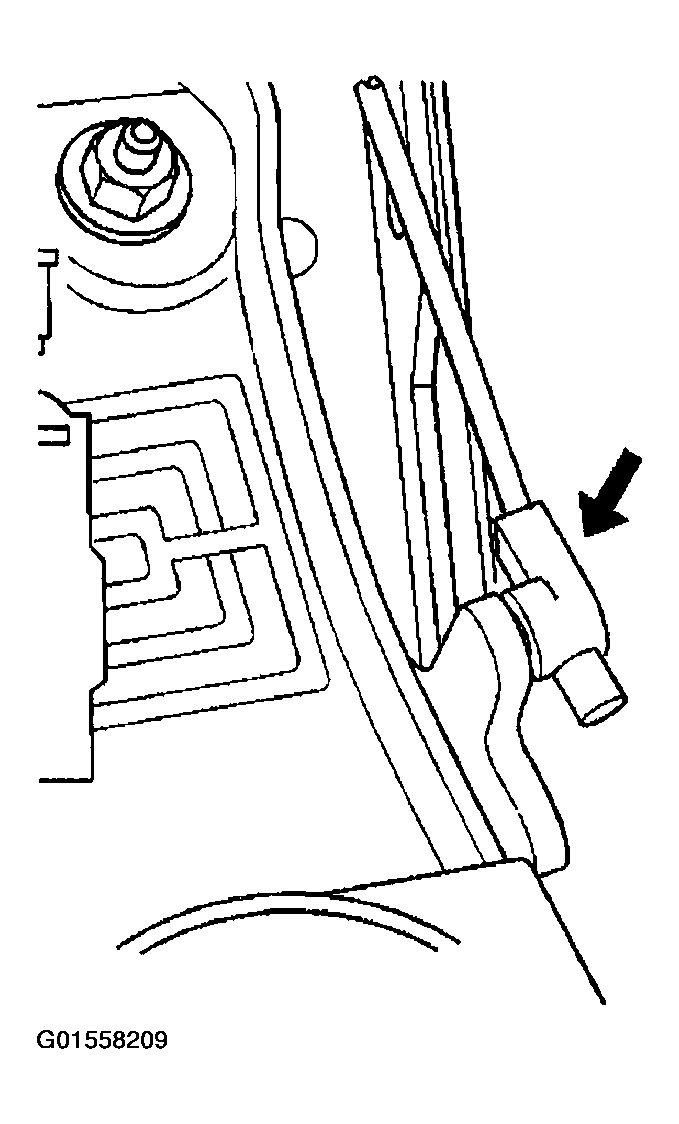

Fig 1: Disconnecting Shift Interlock Cable
Courtesy of GENERAL MOTORS CORP.
Remove the 2 front mounting nuts.

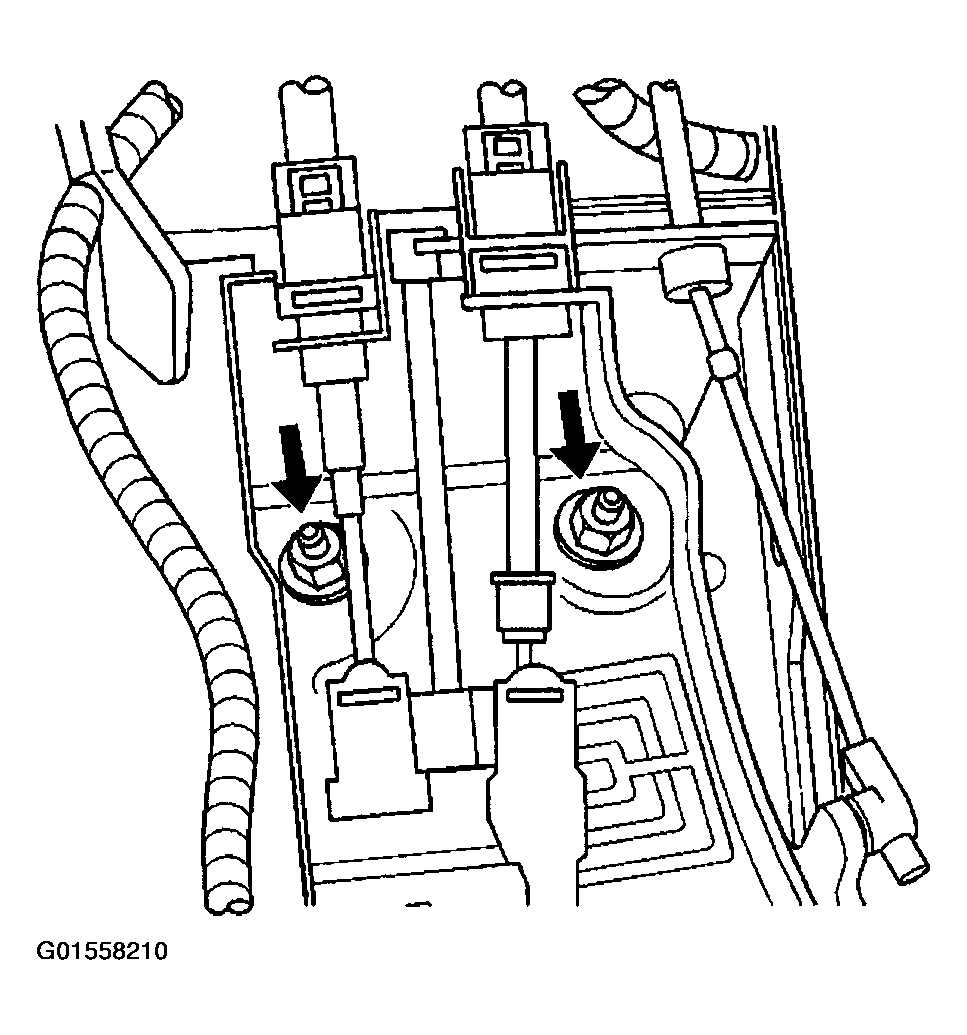

Fig 2: Locating 2 Front Mounting Nuts
Courtesy of GENERAL MOTORS CORP.
Remove the 2 rear mounting bolts and the shifter.

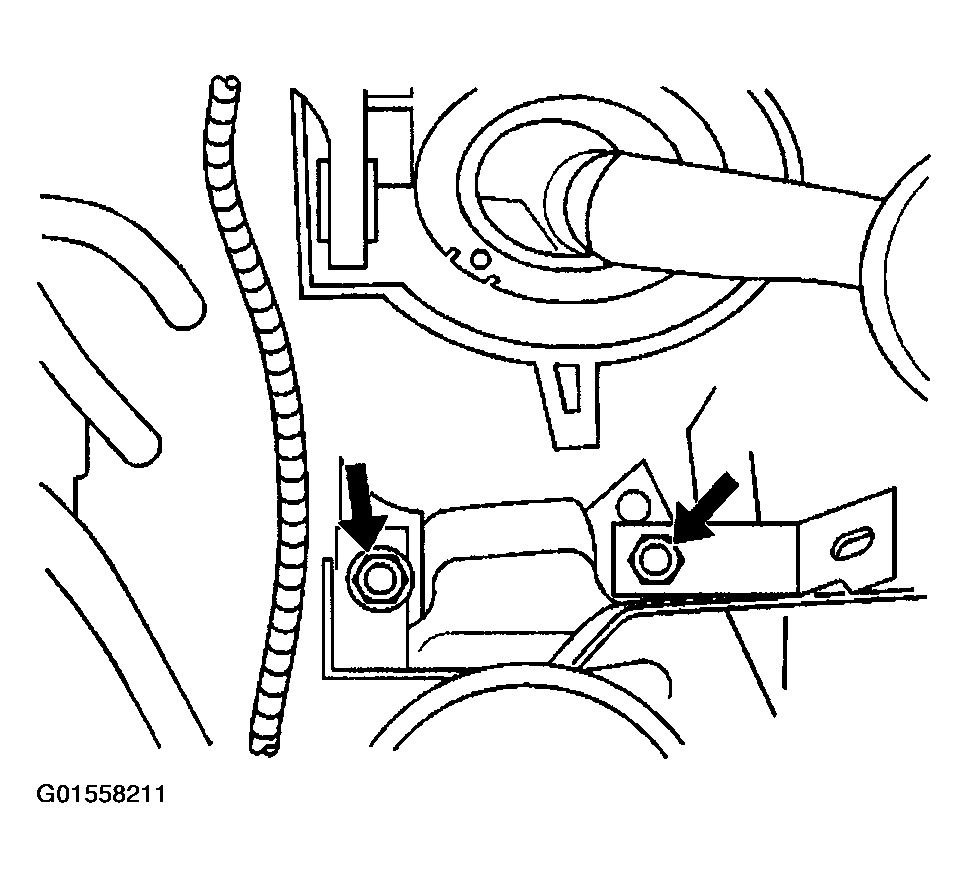

Fig 3: Locating 2 Rear Mounting Bolts
Courtesy of GENERAL MOTORS CORP.
