Removal Procedure

  1. Remove the rear side door trim. Refer to TRIM PANEL REPLACEMENT - SIDE REAR DOOR  .
  2. Remove the rear water deflector. Refer to WATER DEFLECTOR REPLACEMENT - REAR DOOR  .
  3. Loosen the rubber window run channel along the center guide channel.
  4. Remove the following components from the rear door:
    • The 2 bolts (2)
    • The 2 screws (3)
    • The window guide channel (1)

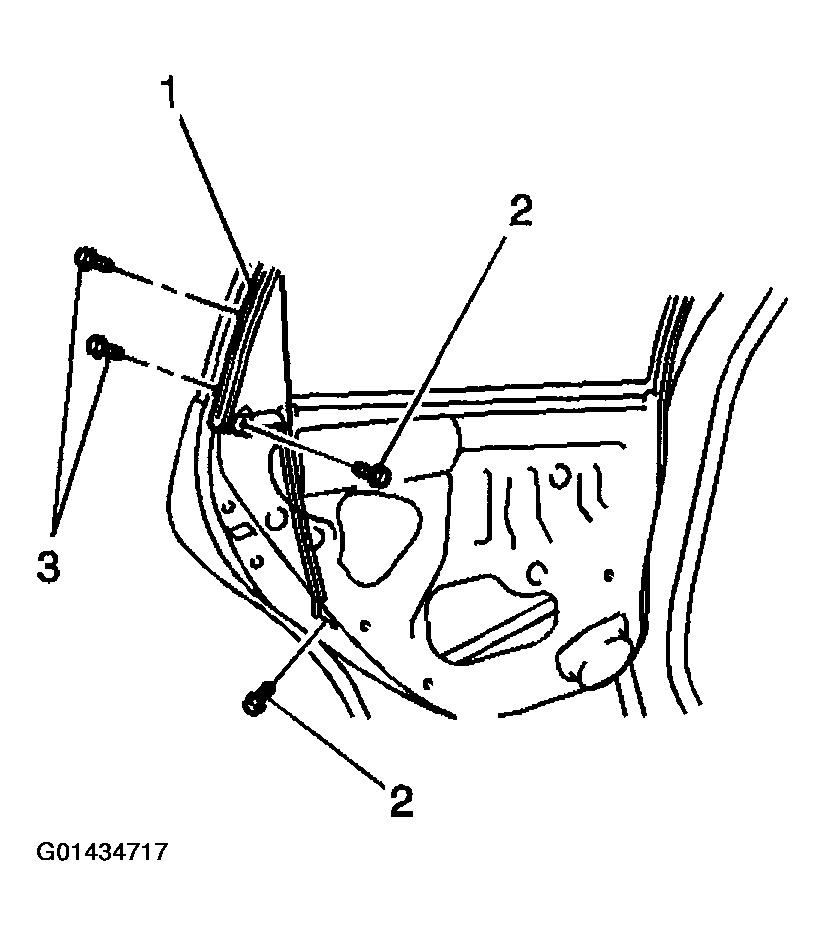

      Fig 1: Removing Window Guide Channel Bolts And Screws
      G01434717Courtesy of GENERAL MOTORS CORP.
