Terminals Of Transmission Connector End View

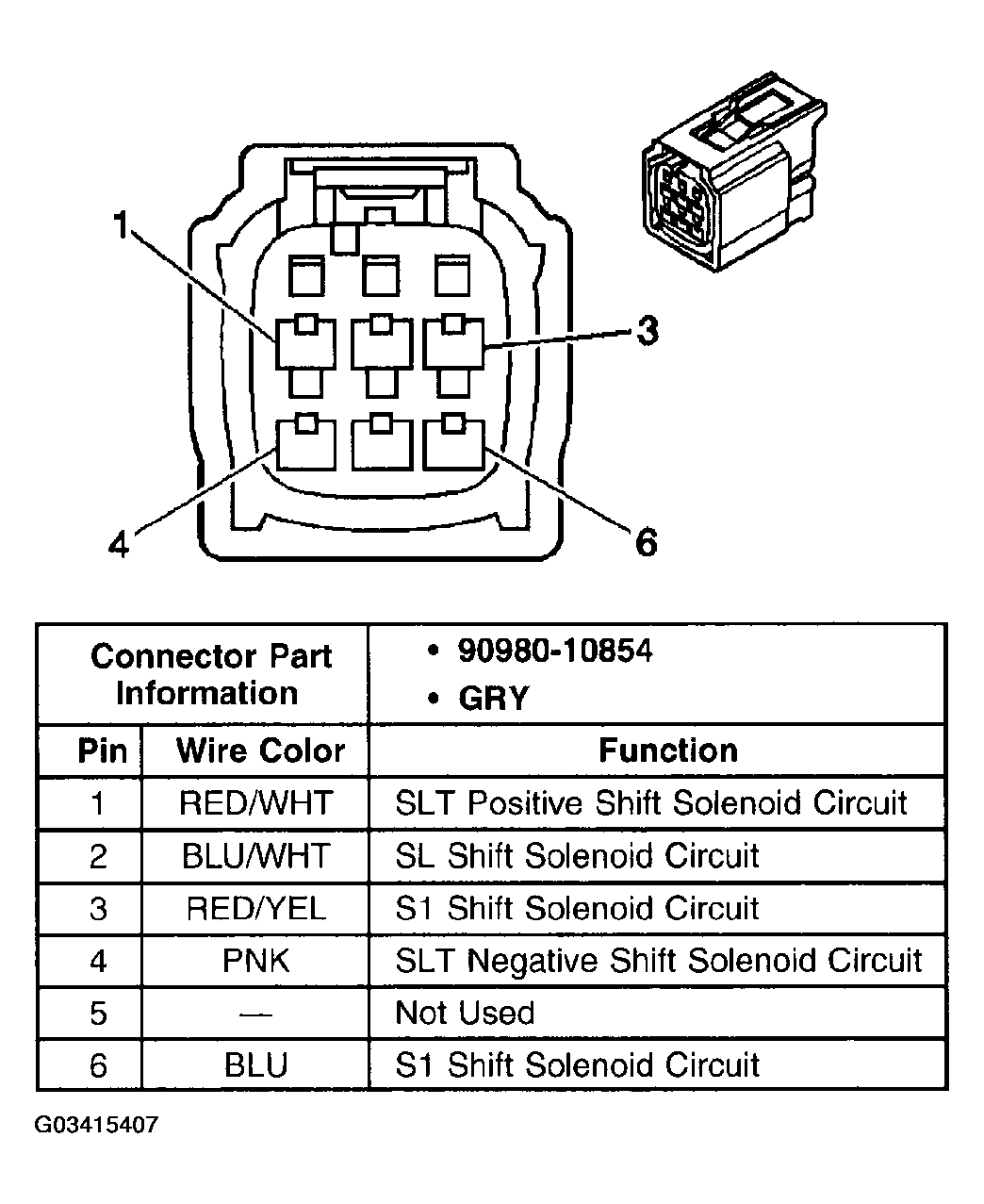

Fig 1: Terminals Of Transmission Connector End View
G03415407Courtesy of GENERAL MOTORS CORP.
