Installation Procedure

  1. Install the ignition switch (7) and the 2 screws (8,9).

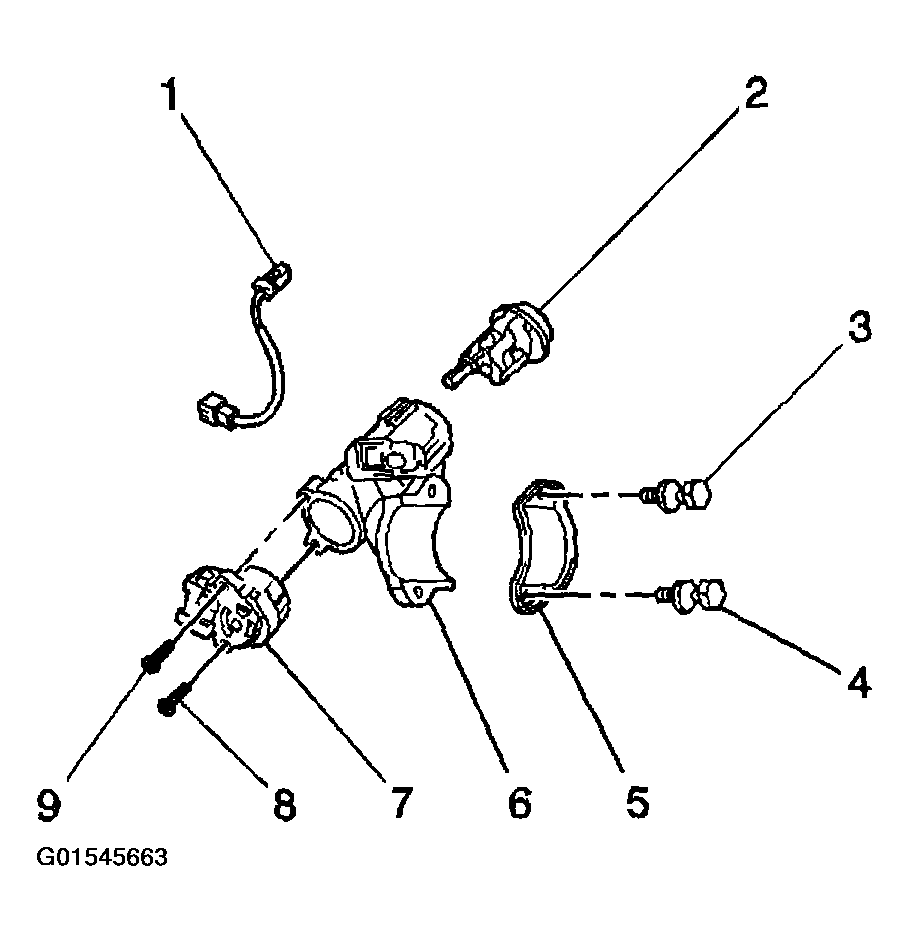

    Fig 1: Installing Ignition Switch
    G01545663Courtesy of GENERAL MOTORS CORP.
  2. Connect the ignition switch electrical connector.
  3. Install the trim covers to the steering column. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  4. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
