Automatic Transmission Shift Lock Control Connector End Views

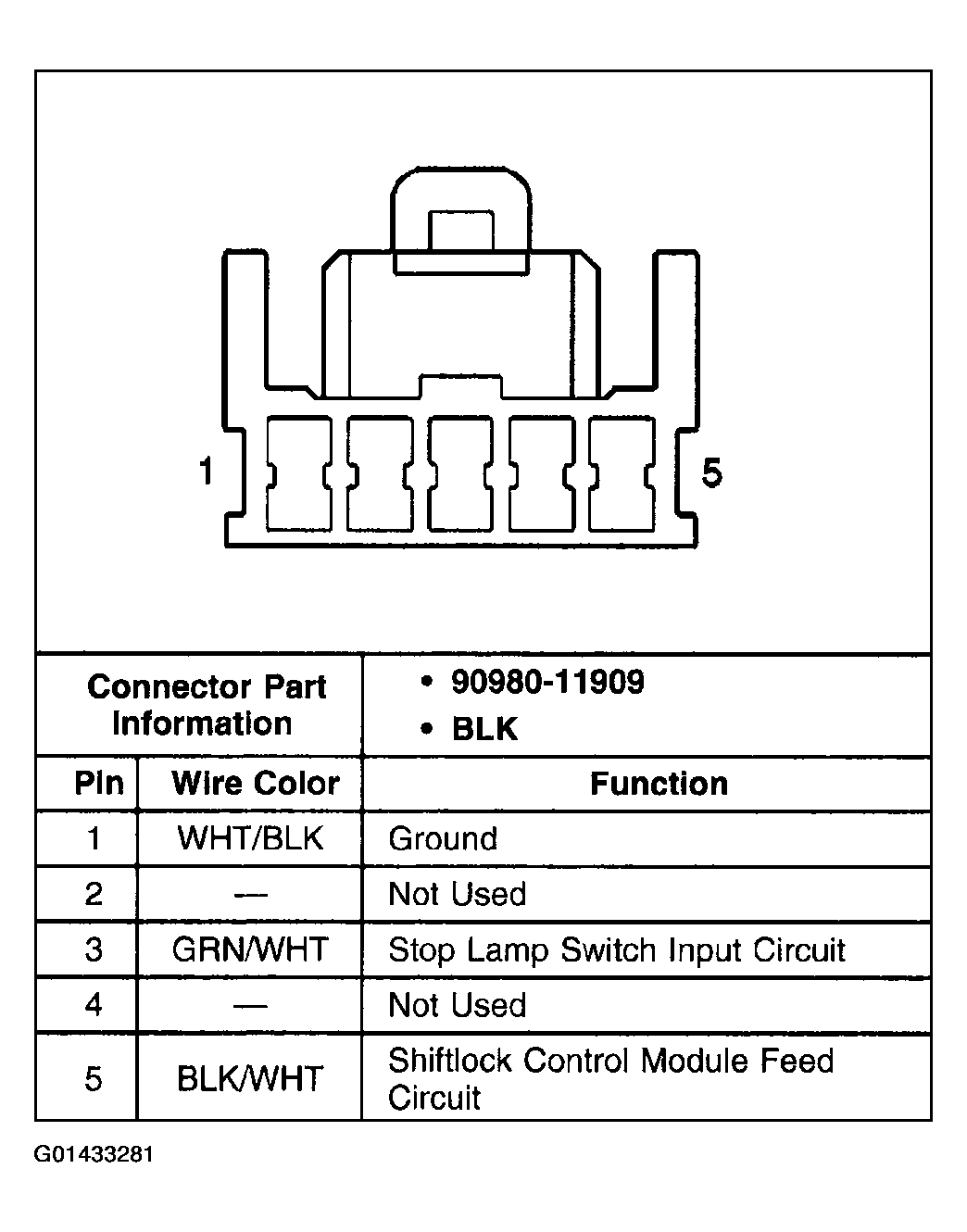

Fig 1: Shift Lock Control Module Connector End View
G01433281Courtesy of GENERAL MOTORS CORP.

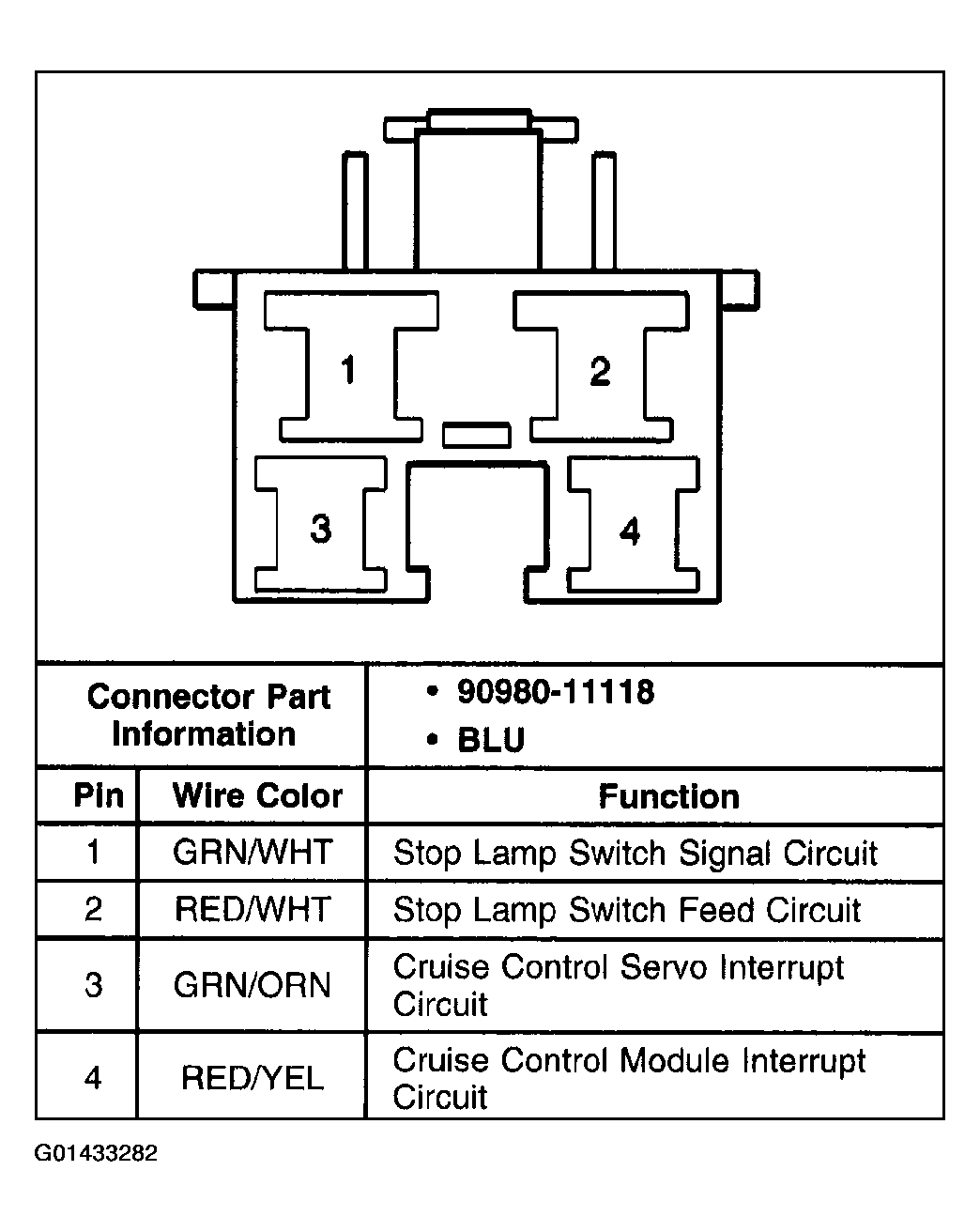

Fig 2: Stop Lamp Switch Connector End View
G01433282Courtesy of GENERAL MOTORS CORP.
