Installation Procedure

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the child seat anchor bracket (4) to the vehicle. Secure the bracket with the bolt (3).

    Tighten

    Tighten the child seat anchor bracket bolt to 2 N.m (15 lb ft).

  2. Install the rear access panel (2).

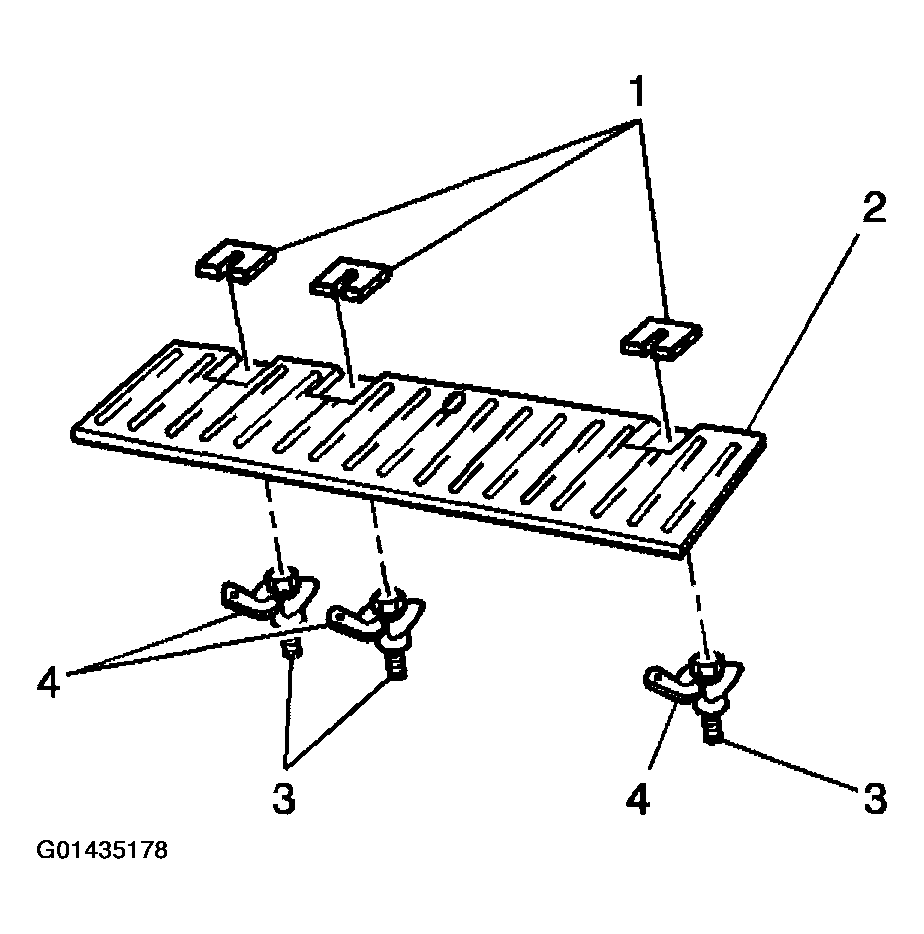

    Fig 1: Installing Child Seat Anchor Bracket, Bolt & Rear Access Panel
    G01435178Courtesy of GENERAL MOTORS CORP.
