Home >> Pontiac >> 2003 >> Vibe L4-1.8L VIN L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Cylinder Block, Connecting Rod and Piston Components
April 5, 2026: LEMON Manuals is launched! Read the announcement.

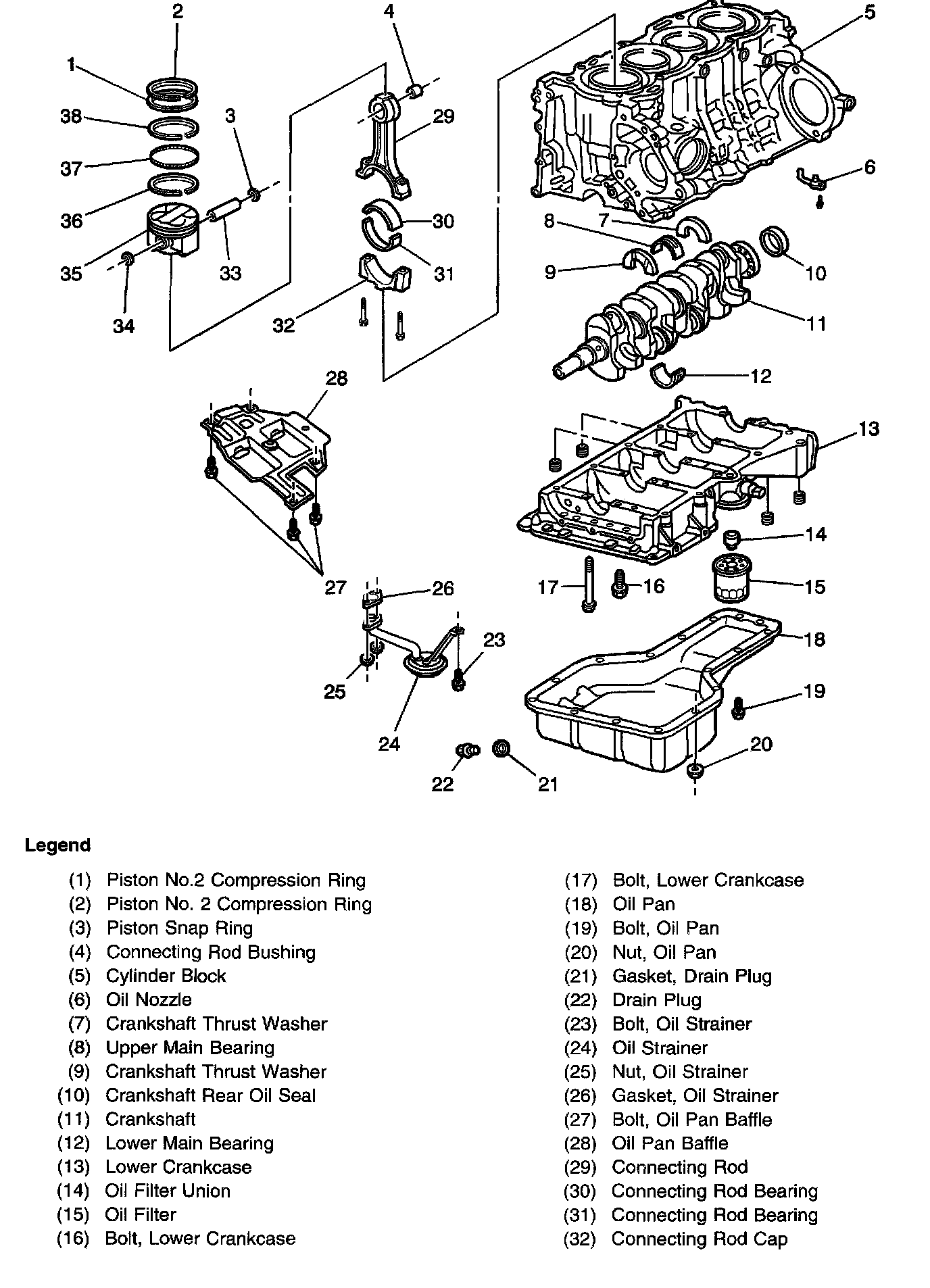

Cylinder Block, Connecting Rod and Piston Components

Part 1 Of 2:



Part 2 Of 2:
