Manual Transmission/Transaxle

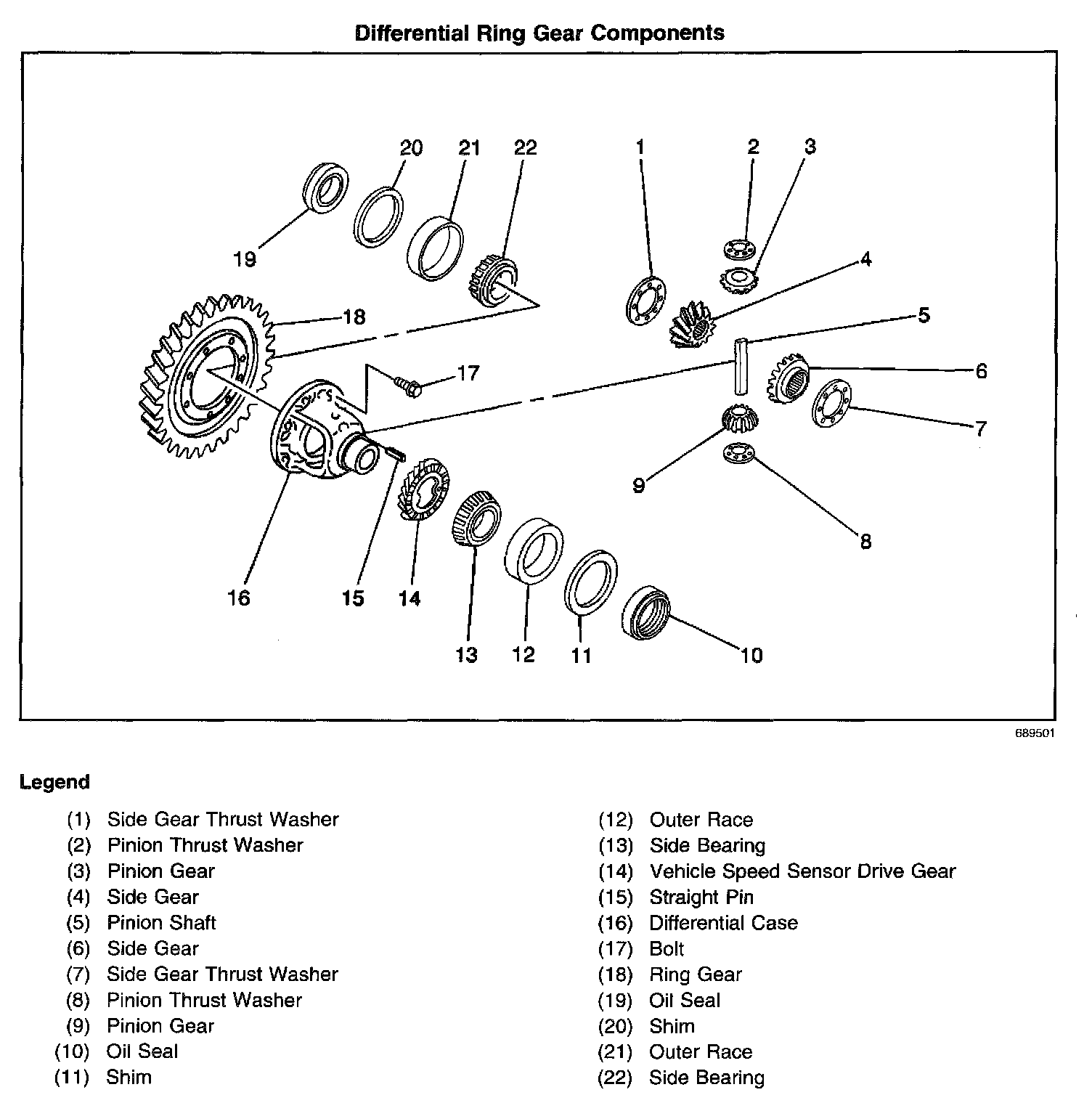

Differential Ring Gear Components

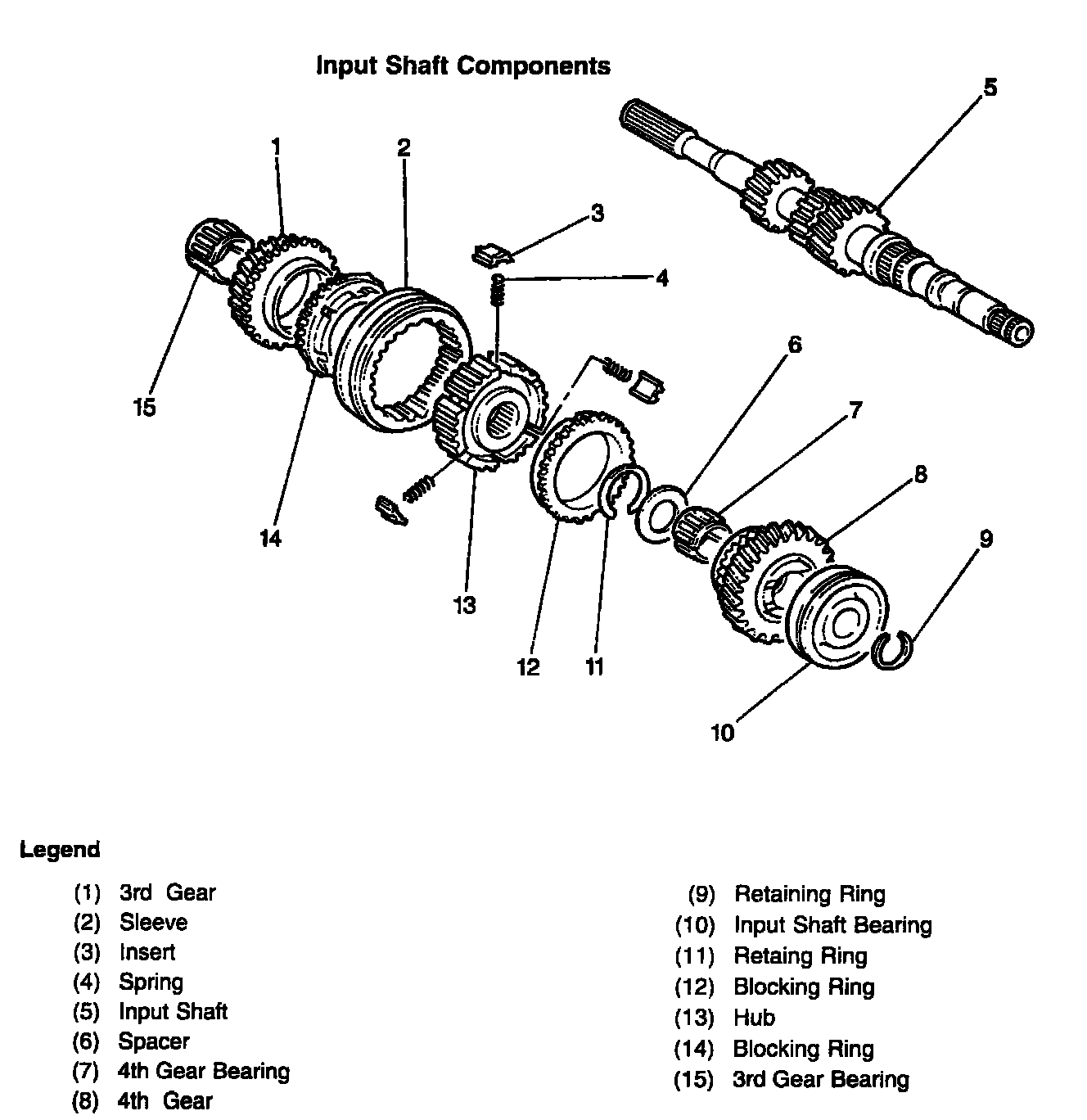

Input Shaft Components

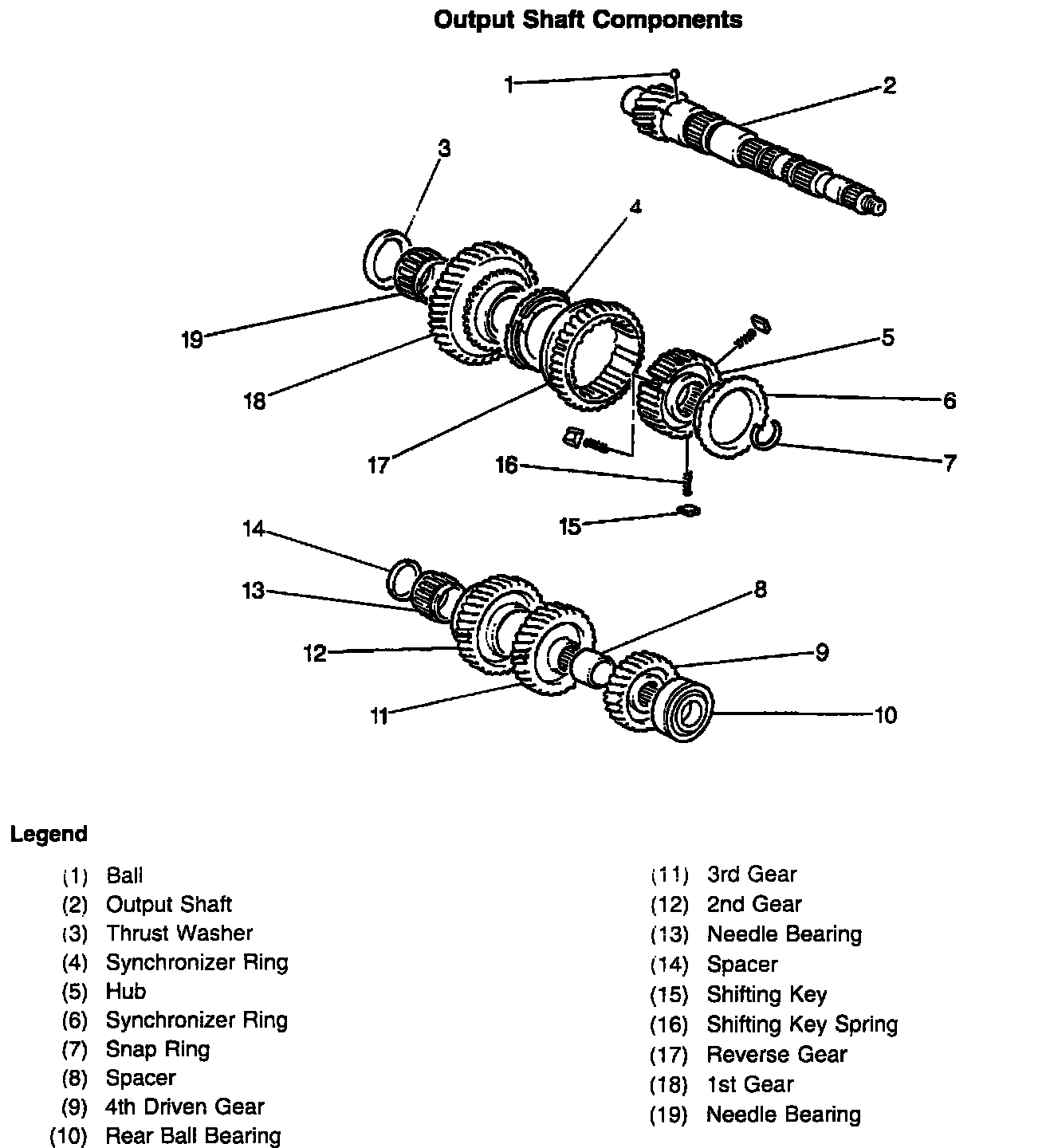

Output Shaft Components

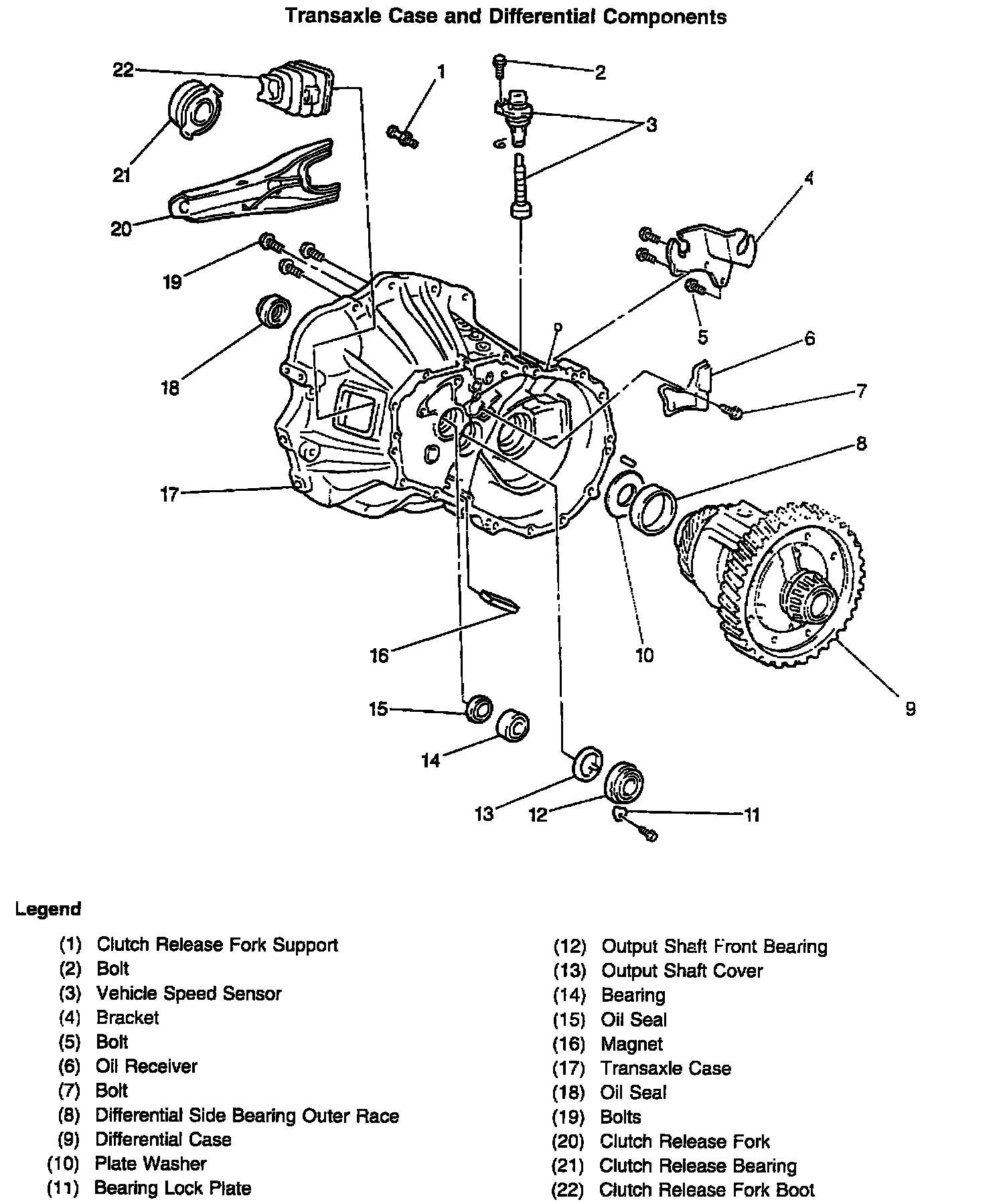

Transaxle Case and Differential Components

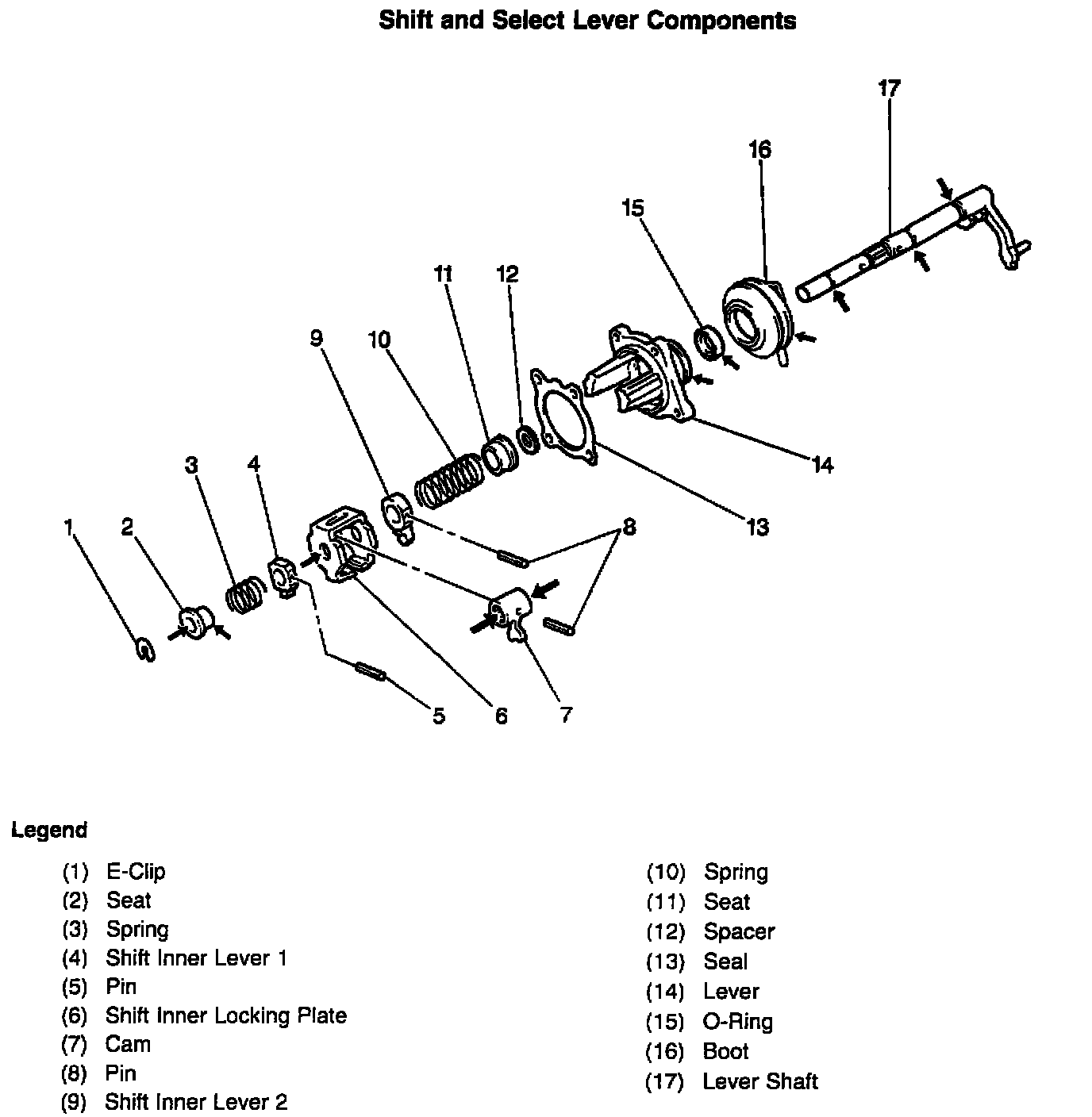

Shift and Select Lever Components

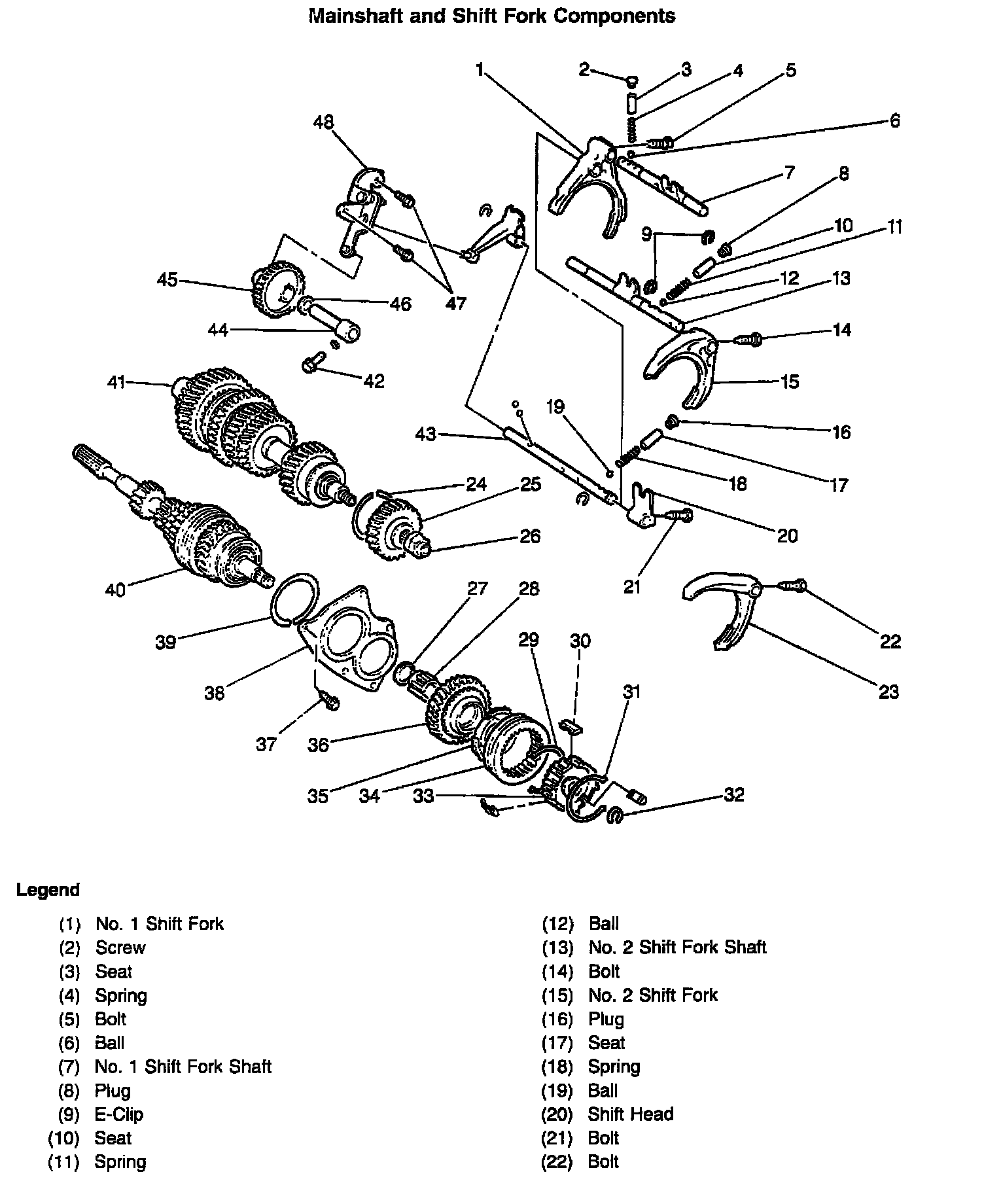

Mainshaft and Shift Fork Components
