Engine Compartment View

Engine Compartment View:

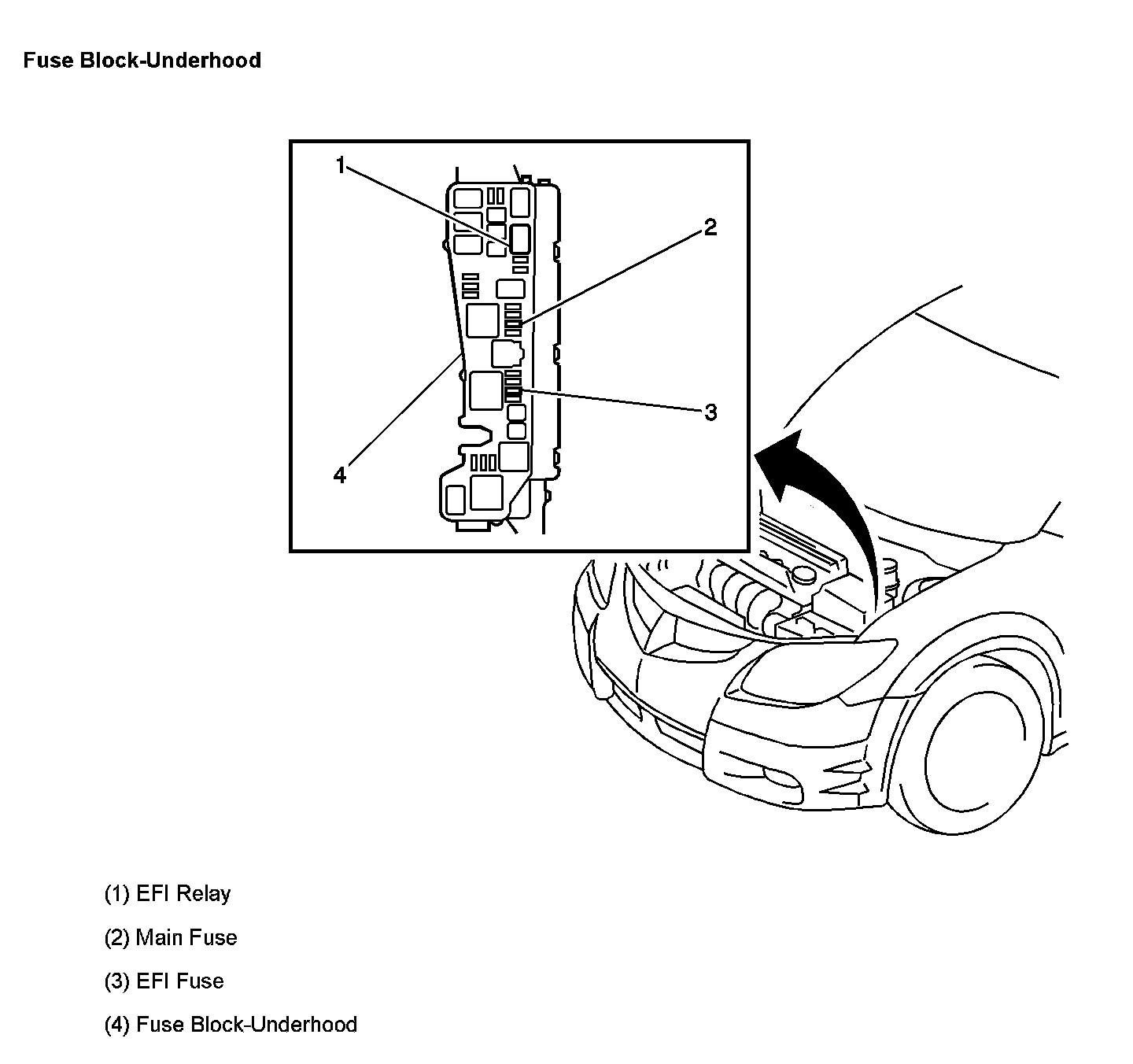

Fuse Block-Underhood:



Top View Of Fuse Block-Instrument Panel (I/P):

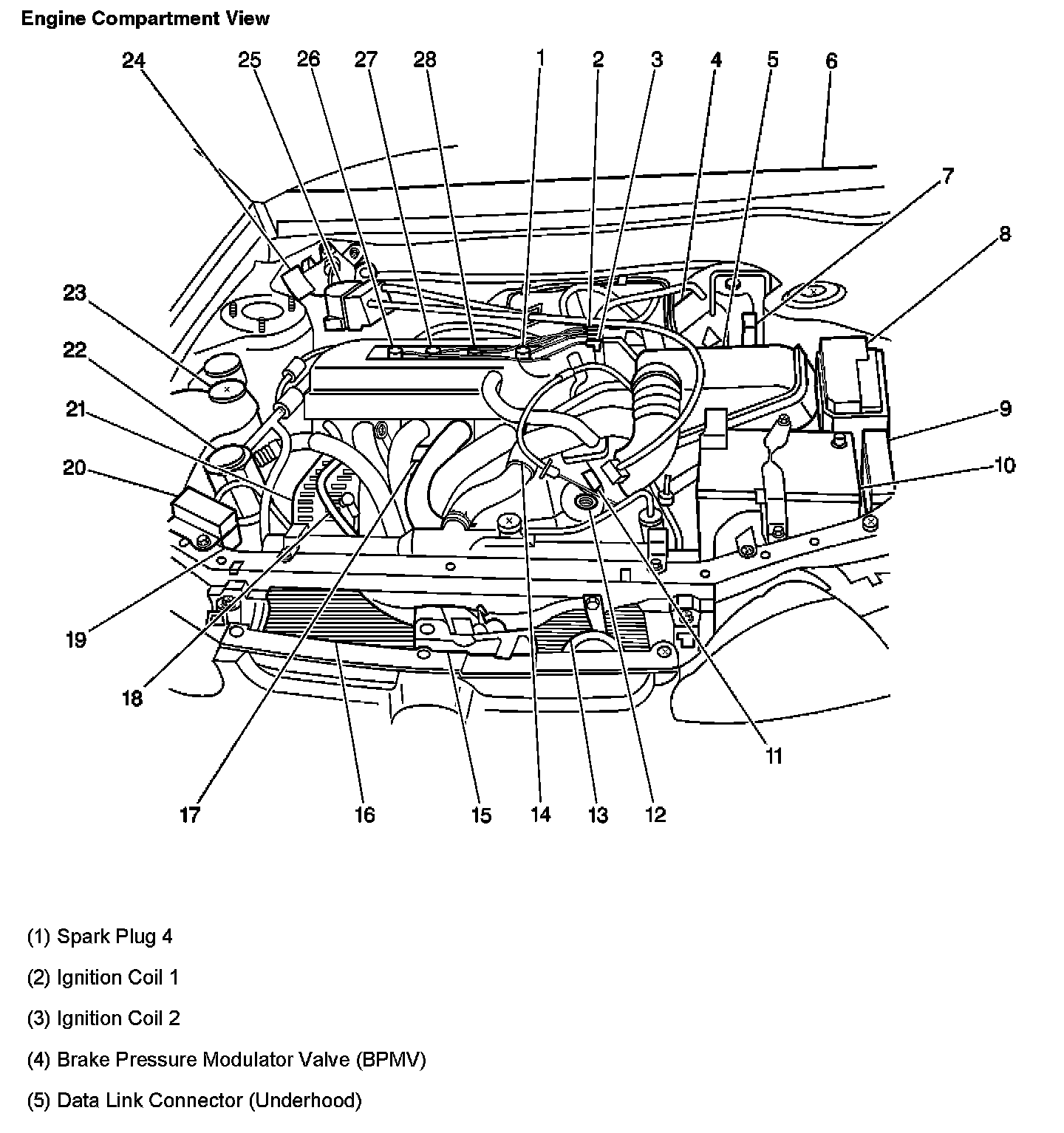

Engine Compartment View Part 1:

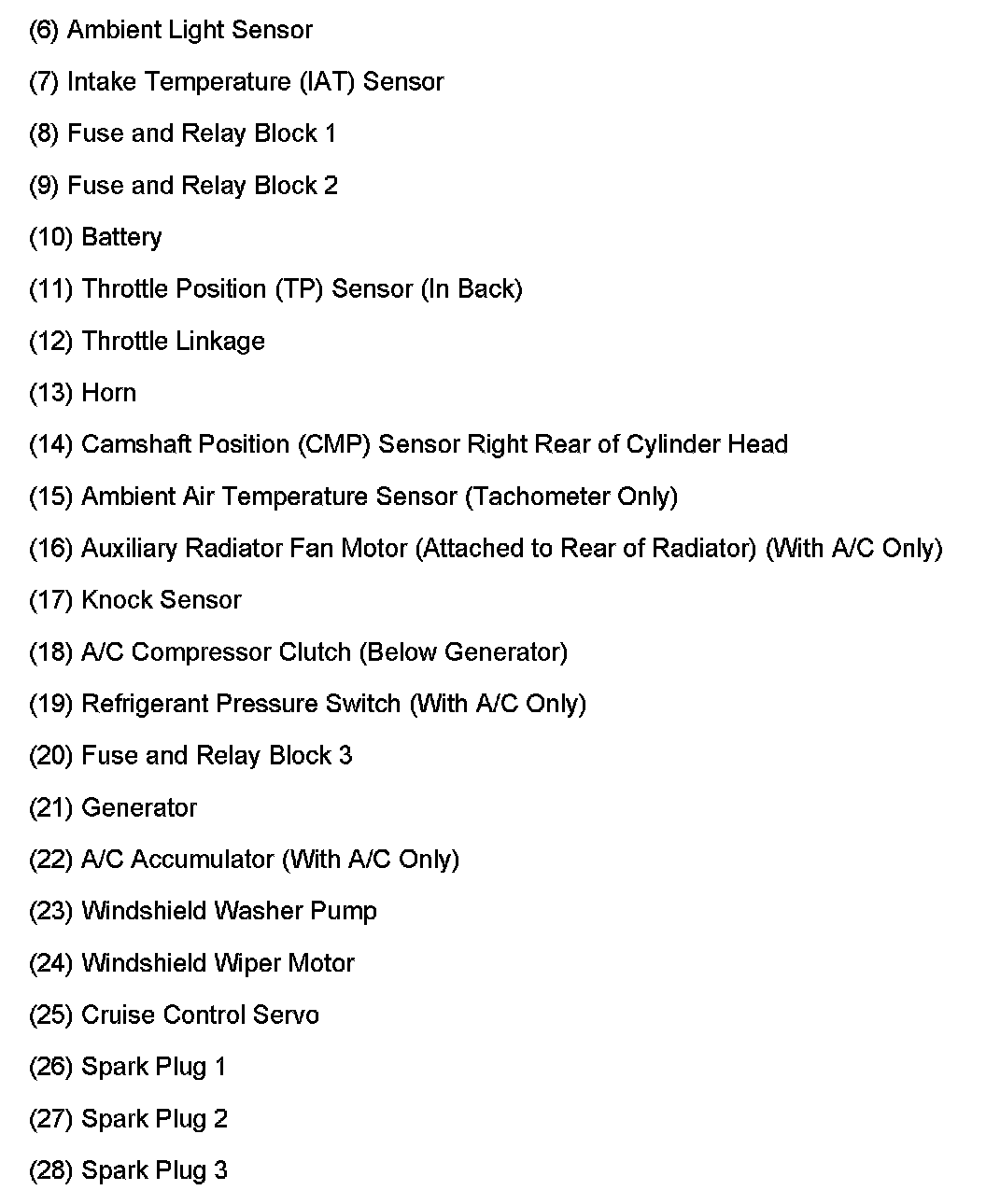

Engine Compartment View Part 2:



Theft Deterrent Component View:



Engine Compartment View:
