Transmission

TRANSMISSION ID AND VIN DERIVATIVE LOCATION

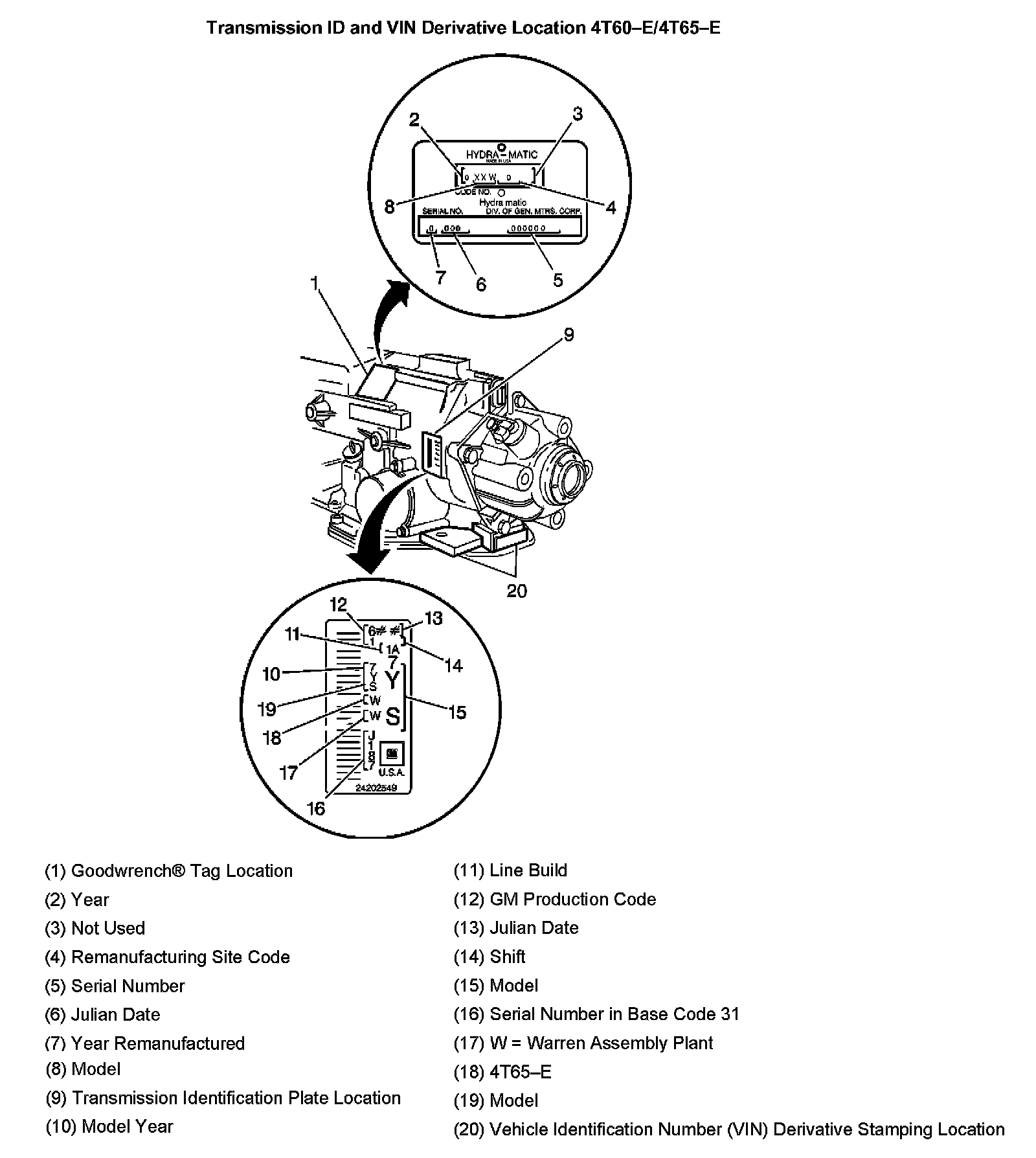

Transmission ID And VIN Derivative Location:

All automatic transmissions have a metal identification (ID) nameplate (9) attached to the case exterior.

Transmission VIN Location:

The primary (1) and secondary (2) Manual Tooling VIN Derivative Locations are on the casting of the transmission housing.

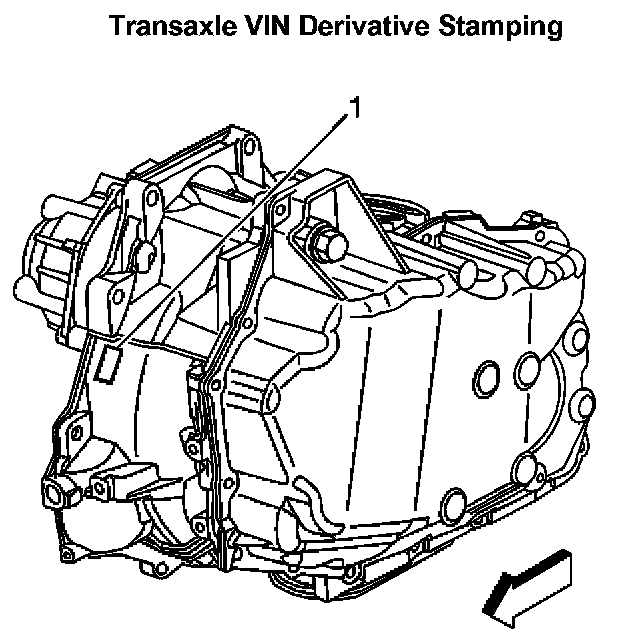

Transaxle VIN Derivative Stamping:

The location for the Semi-Automatic VIN derivative (1) is on the transmission housing.
