System Diagram

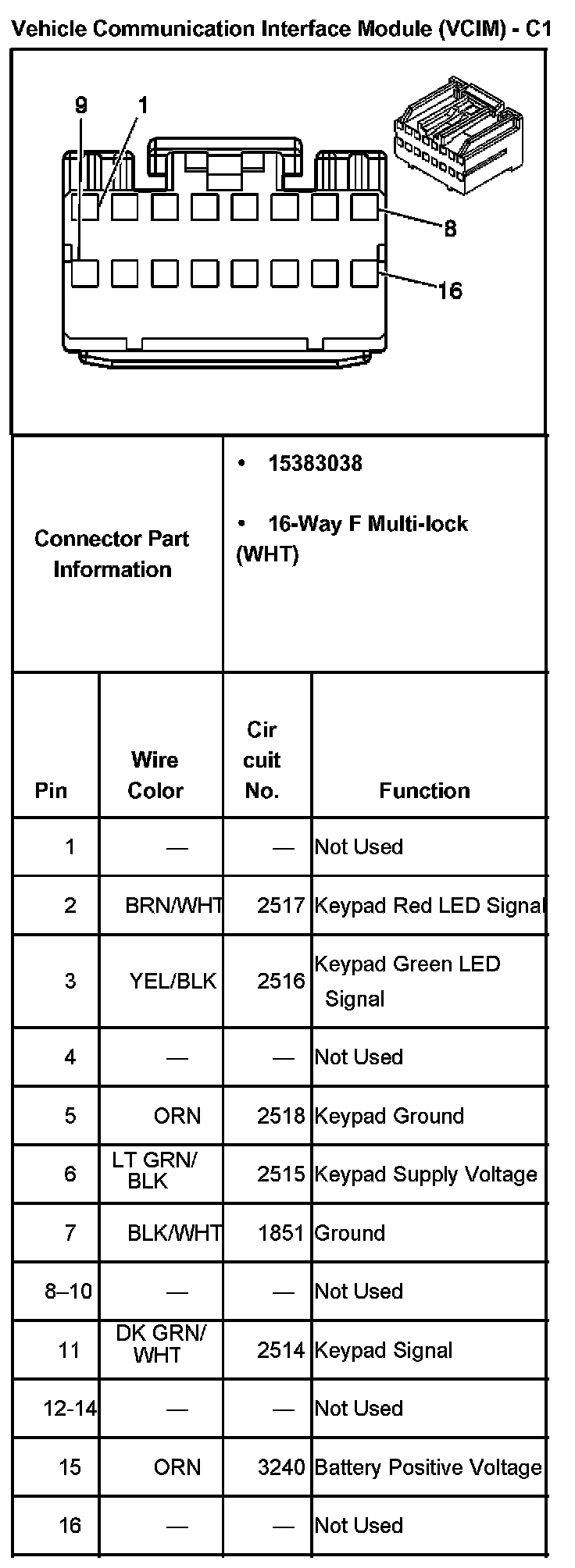

Vehicle Communication Interface Module (VCIM) - C1:



Vehicle Communicaton Interface Module (VCIM)-C2:
