Control Valve Body Assembly
Control Valve Body Assembly

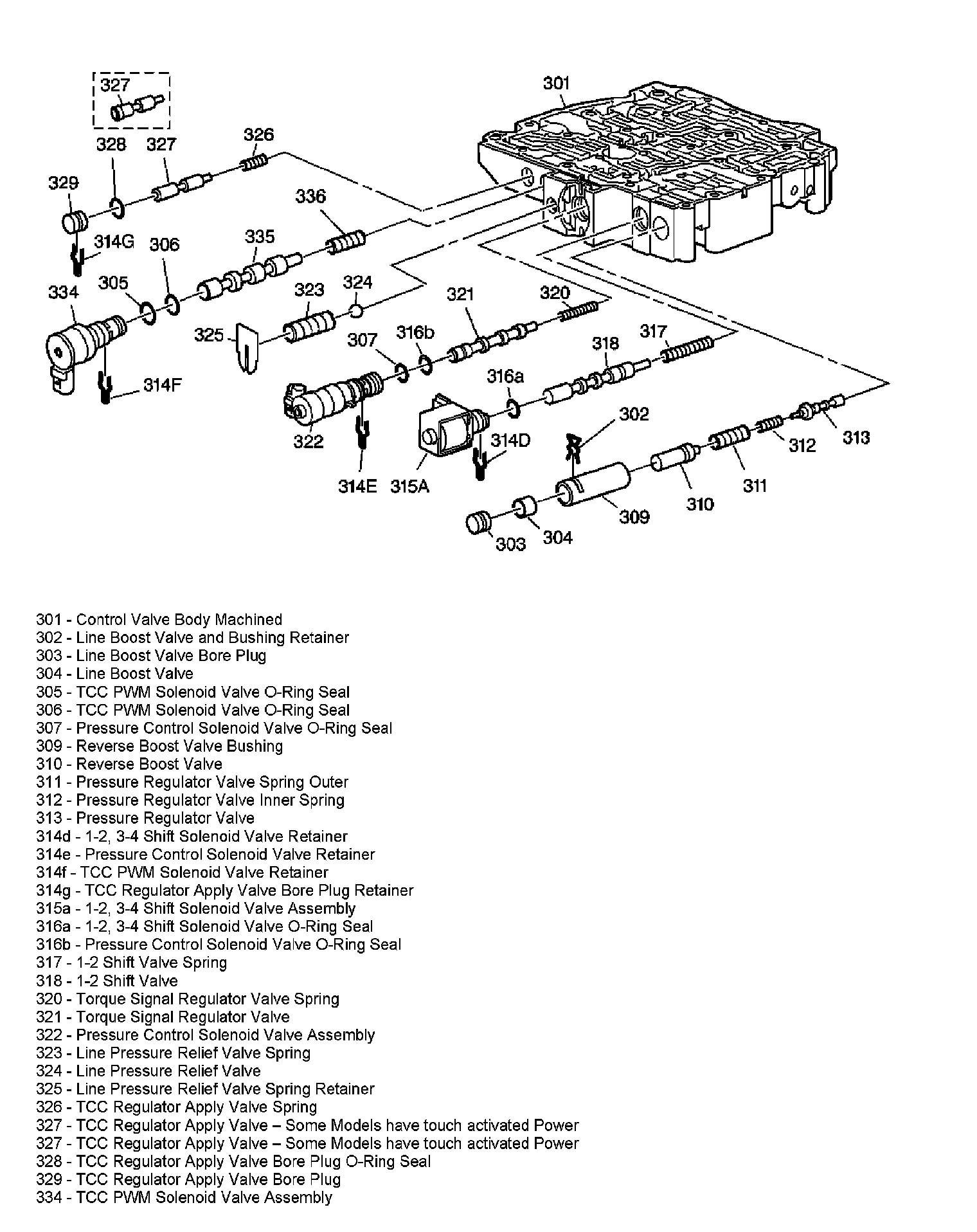

Control Valve Body Assembly (1 of 2)
Control Valve Body Assembly (2 of 2)
