Sunroof / Moonroof

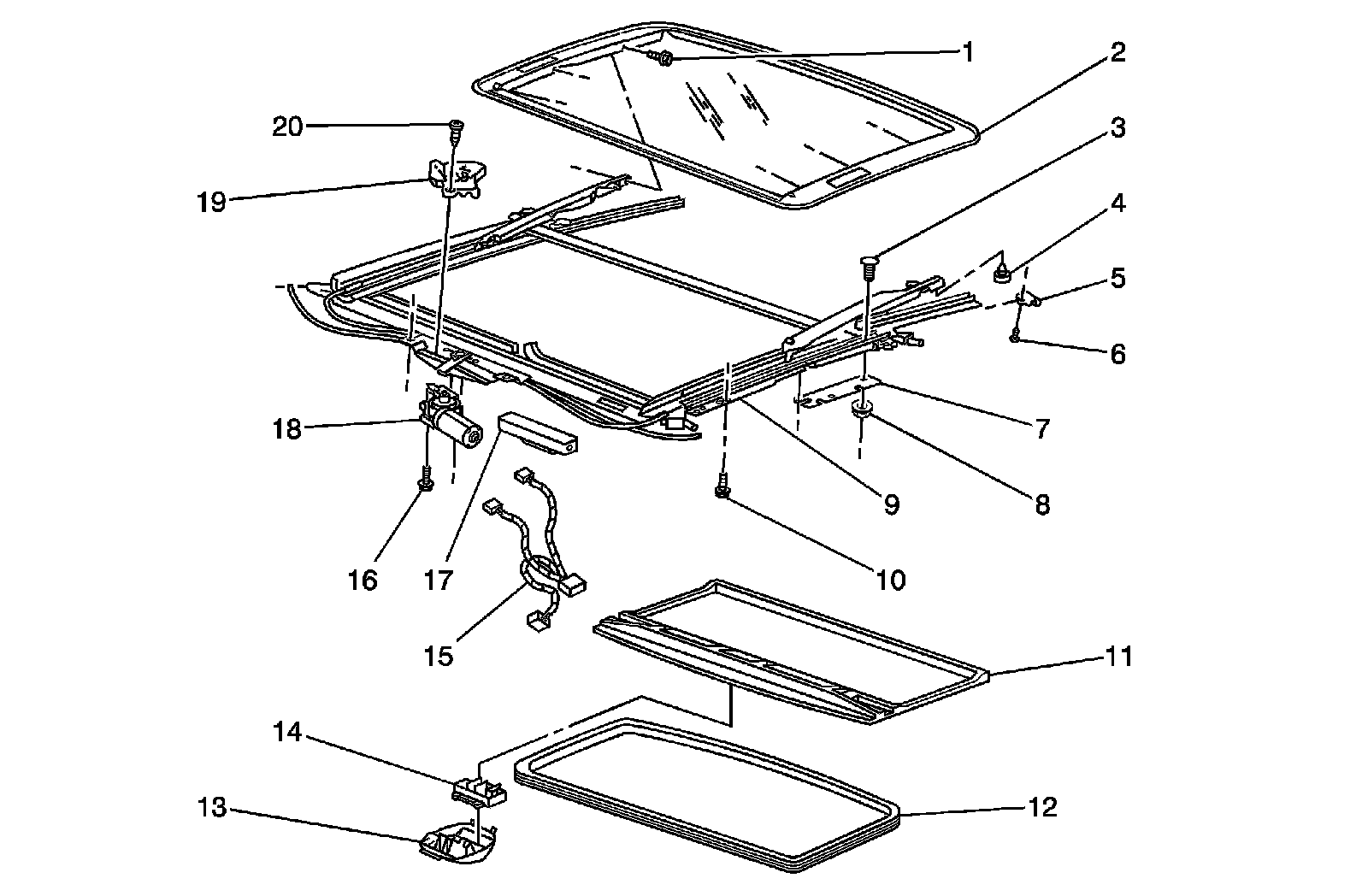

Power Sunroof Disassembled View




1 - Sunroof Window Bolt/Screw
2 - Sunroof Window Panel
3 - Sunroof Module Bracket Bolt
4 - Sunroof Window Guide Bumper
5 - Sunroof Sunshade Stop
6 - Sunroof Sunshade Stop Screw
7 - Sunroof Module Assembly Bracket
8 - Sunroof Module Bracket Nut
9 - Sunroof Module Assembly
10 - Sunroof Module Assembly Bolt/Screw
11 - Sunroof Sunshade
12 - Sunroof Opening Bezel/Lace
13 - Sunroof Switch Bezel
14 - Sunroof Switch
15 - Sunroof Wiring Harness
16 - Sunroof Actuator/Motor Bolt/Screw
17 - Sunroof Control Module
18 - Sunroof Actuator/Motor
19 - Sunroof Opening Position Switch
20 - Sunroof Opening Position Switch Screw
