HVAC System - Manual

HVAC CONTROL MODULE

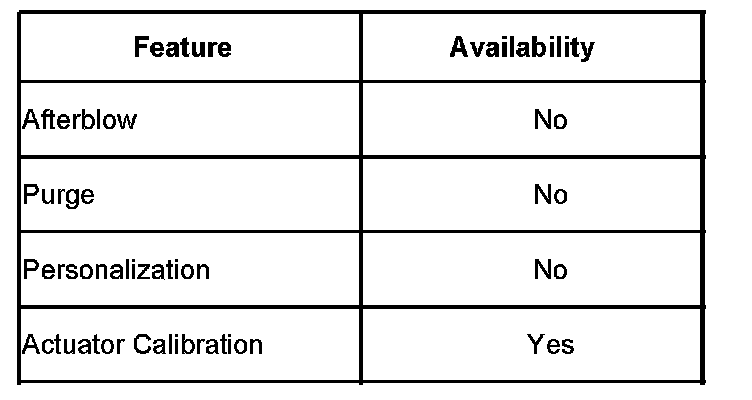

The HVAC control module is a non-class 2 device that interfaces between the operator and the HVAC system to maintain air temperature and distribution settings. The ignition 3 and battery positive voltage circuits provide power to the control module. The control module supports the above features.

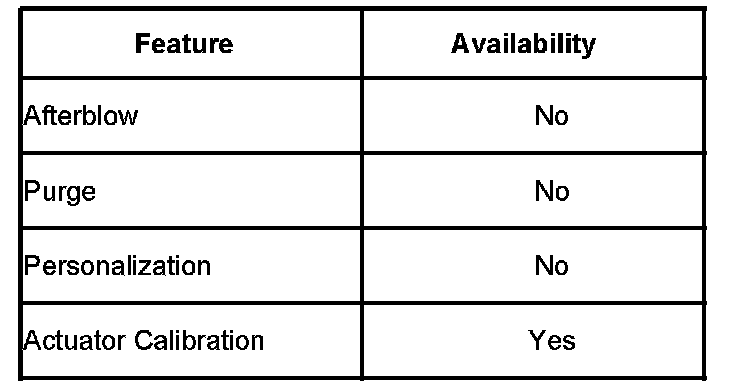

The HVAC control module is a non-class 2 device that interfaces between the operator and the HVAC system to maintain air temperature and distribution settings. The ignition 3 and battery positive voltage circuits provide power to the control module. The control module supports the above features.
