Center Console Fuse/Relay Block

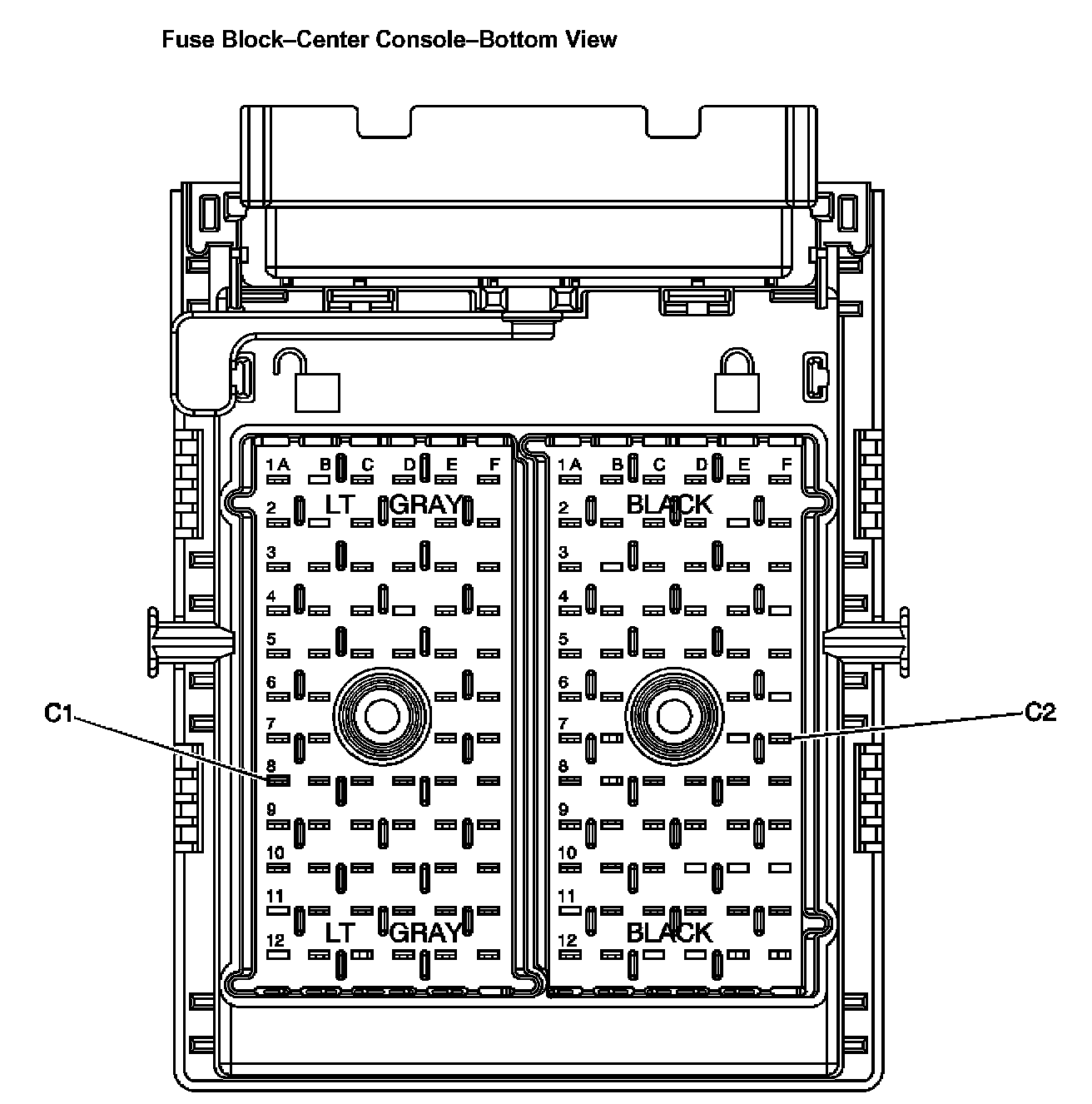

Location View:

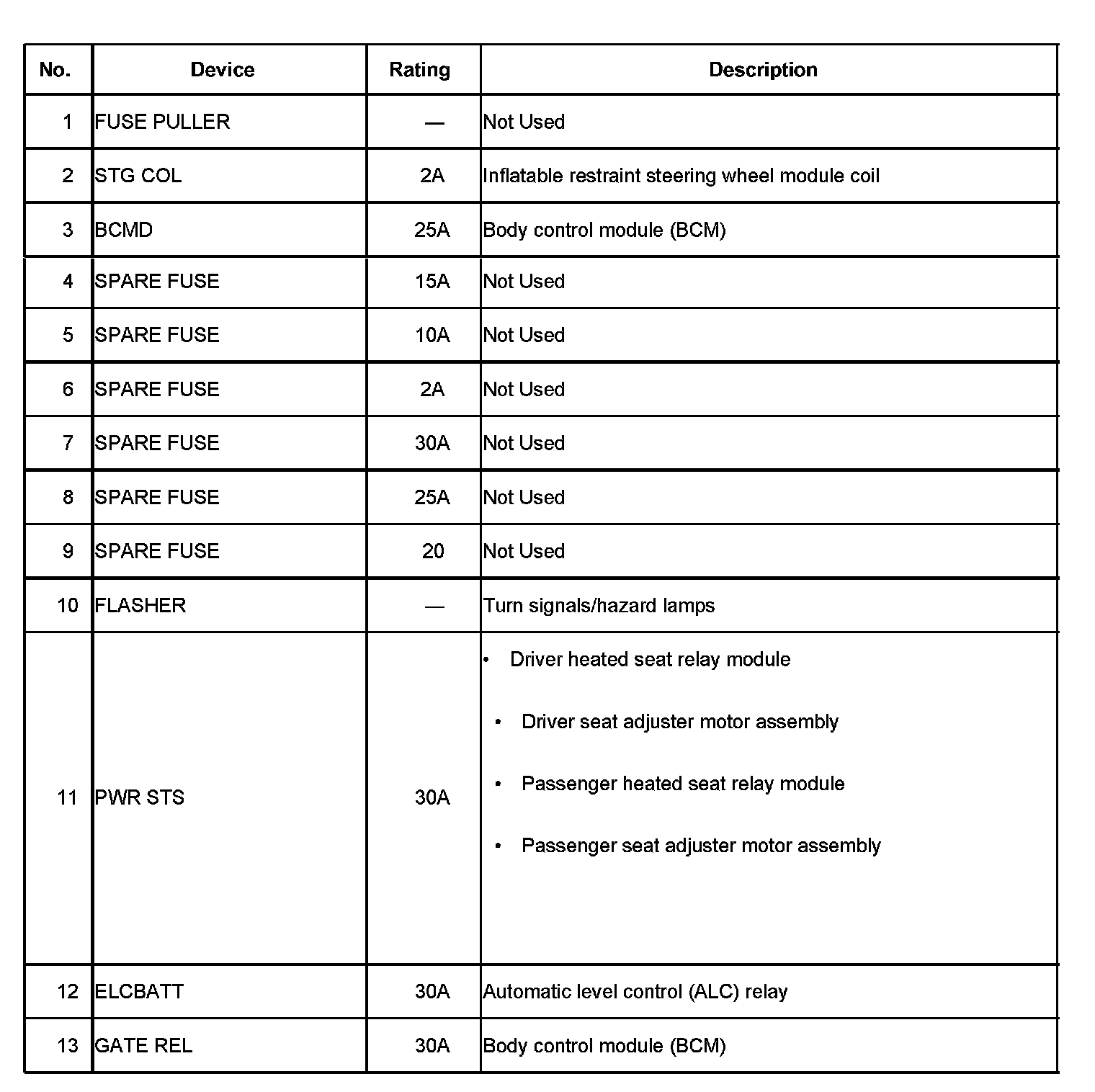

Application Table Part 1:




Application Table Part 2:




Application Table Part 3:




Application Table Part 4:




Application Table Part 5:




Application Table Part 6:

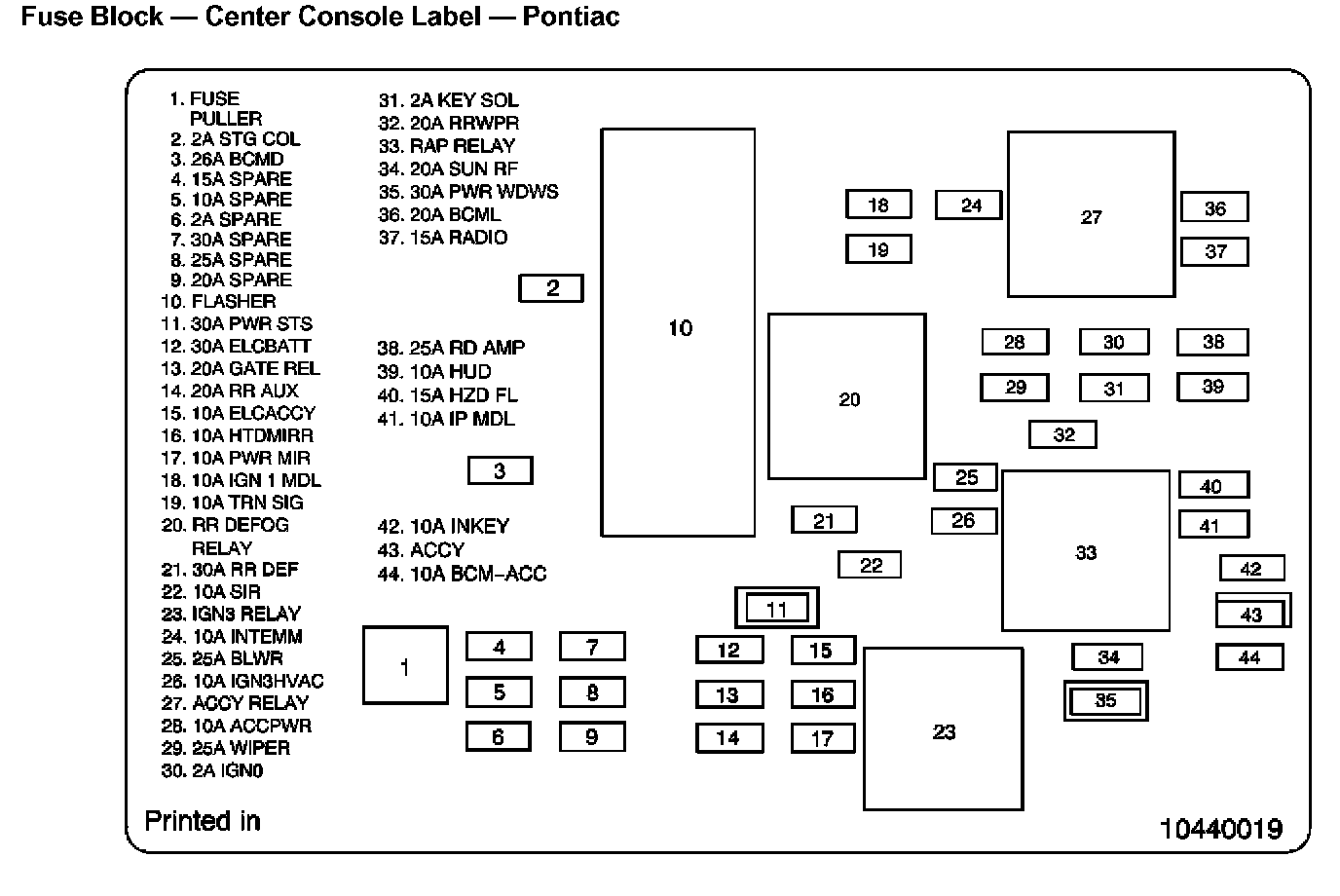

Location View:




Location View:
