Service Procedure

Tools Required

J 43244 Relay Puller Pliers

Removal Procedure

1. Remove the electrical center cover.

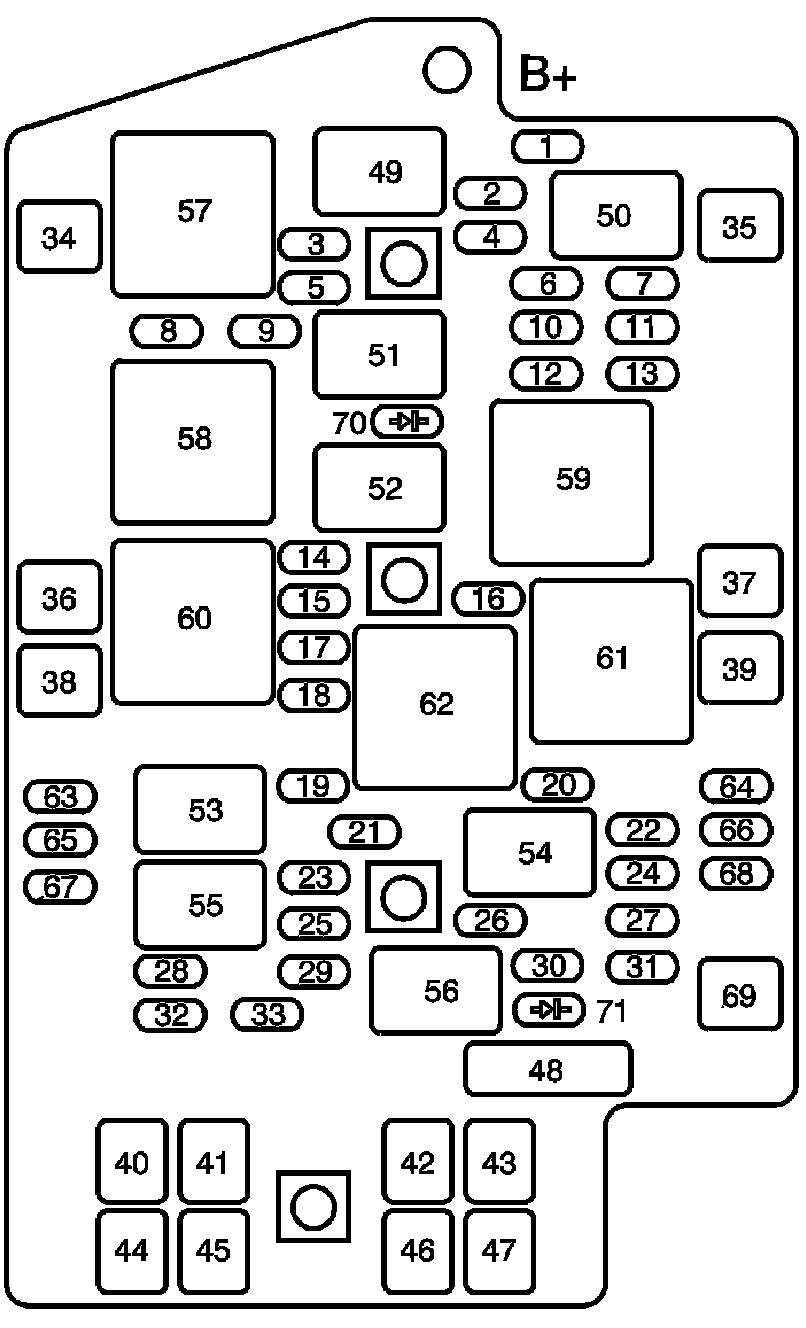

2. Locate the relay for Ignition-I (60).

Important:
^ Always note the orientation of the relay.

^ Ensure that the electrical center is secure, as not to put added stress on the wires or terminals.





3. Using the J 43244 (1), Relay Puller Pliers, position the tool on the opposing corners of the relay (2).

Notice:
Use J 43244 to pull the relay straight out from the electrical center terminals. The use of pliers or a flat-bladed tool could damage the electrical center.

4. Remove the relay (2) in the same position as the removed relay.

Installation Procedure

1. Install the new relay (2) in the same position as the removed relay.

2. Install the electrical center cover.
