Electrical Diagrams

Automatic Transmission Controls Schematics

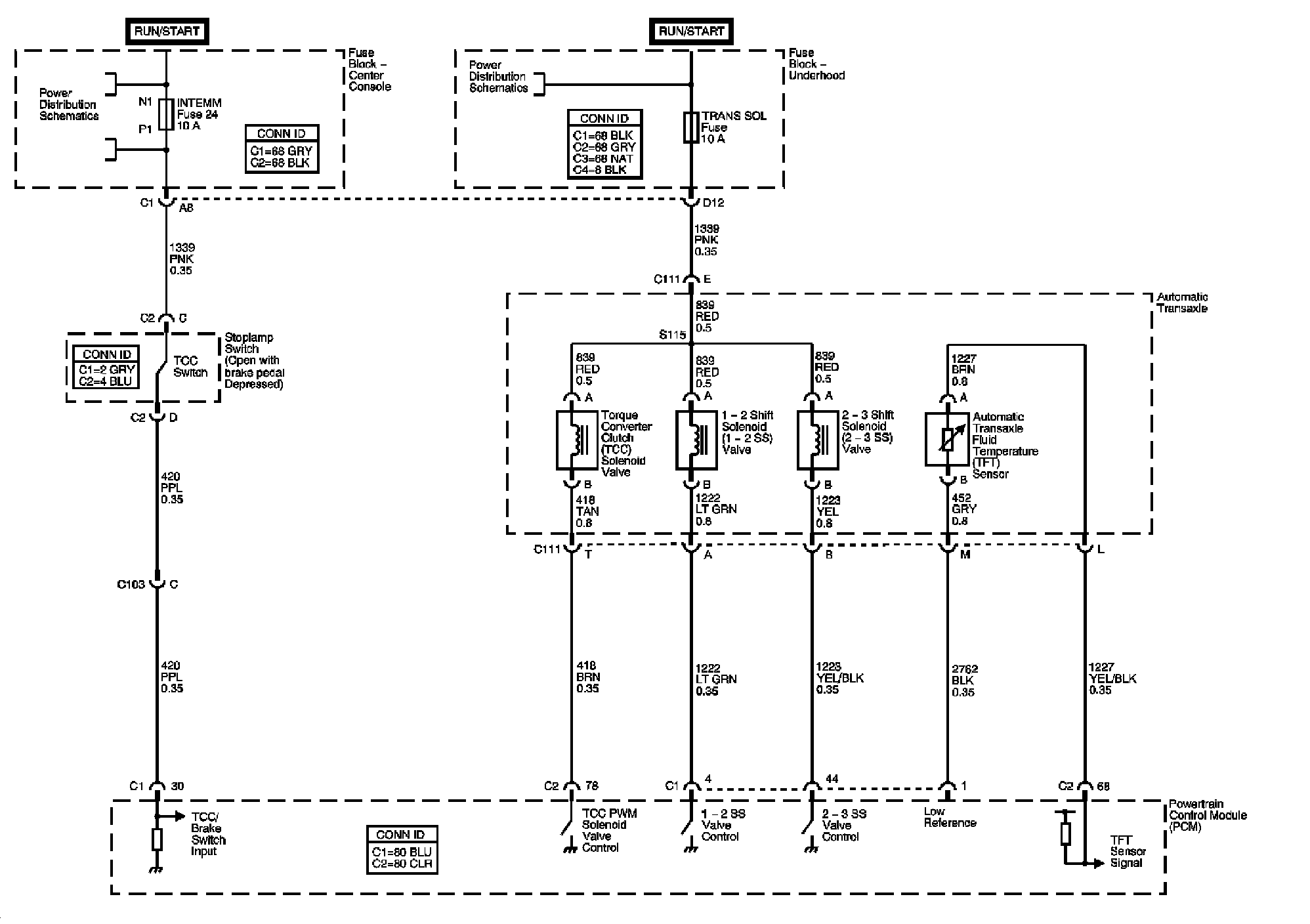

TCC Solenoid Control, SS Valve Control and TFT Sensor





Switches, ISS and Pressure Control

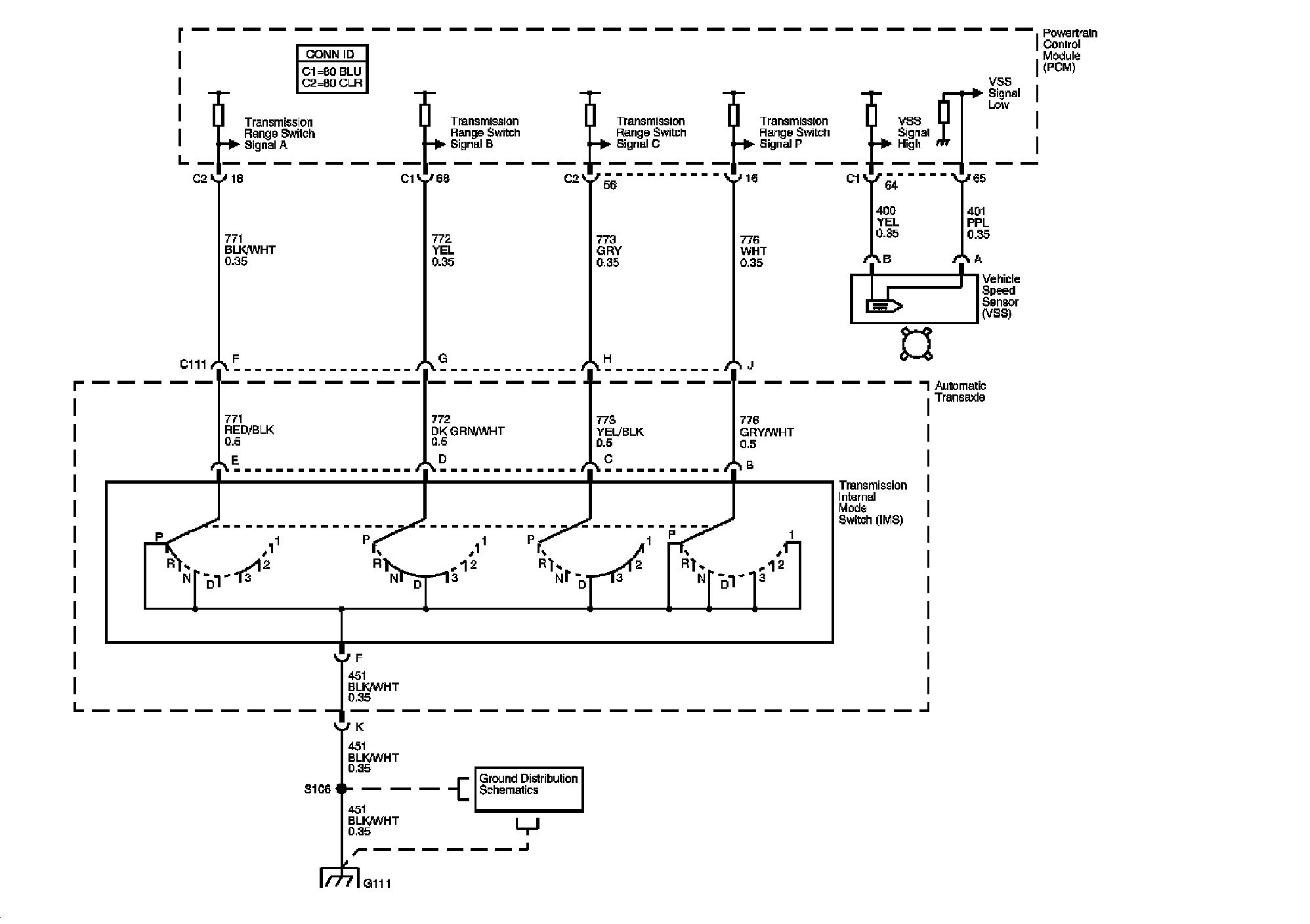

Transaxle Range Switch and VSS

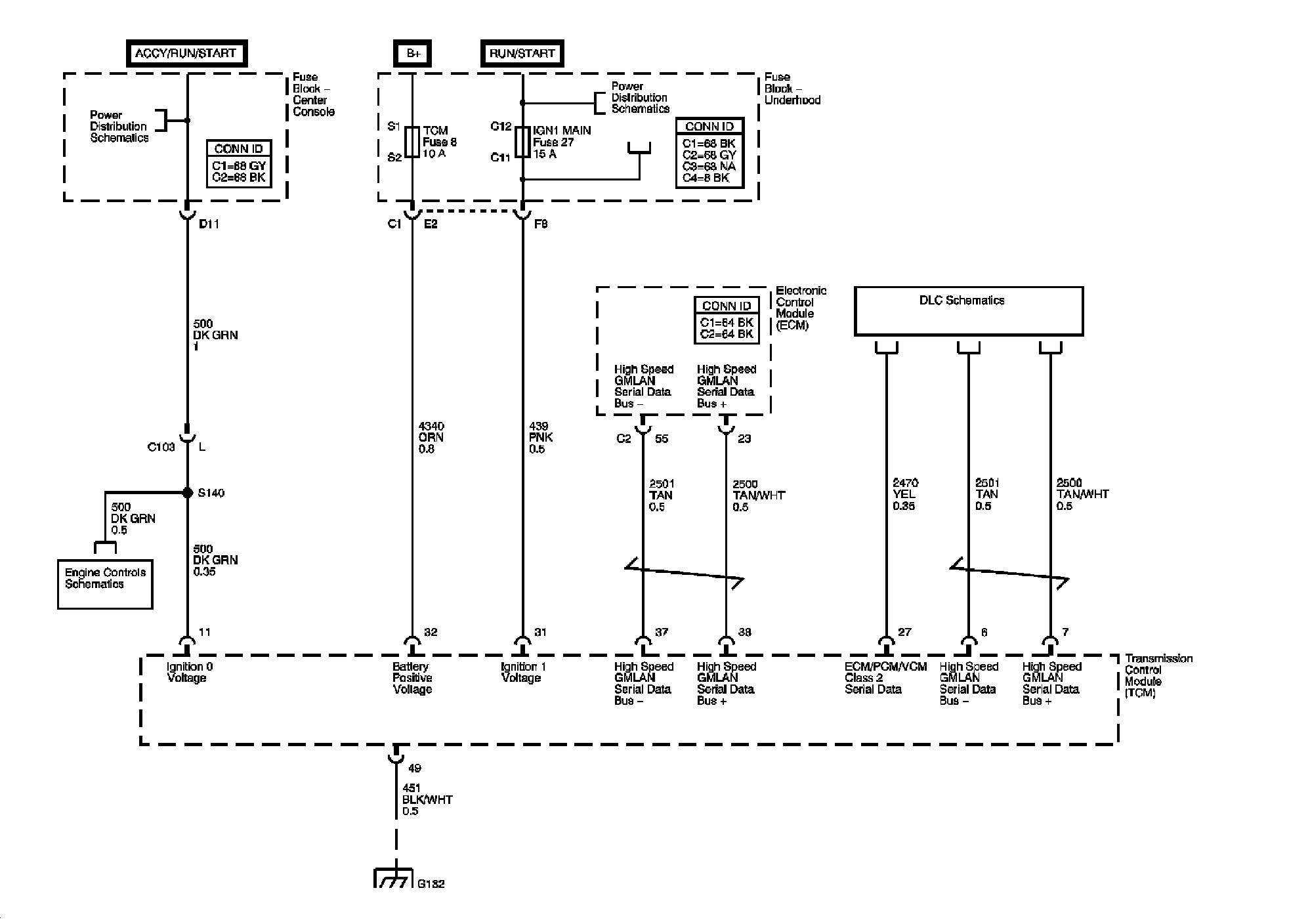

Transmission Control Module Power, Grounds and Serial Data - LY7

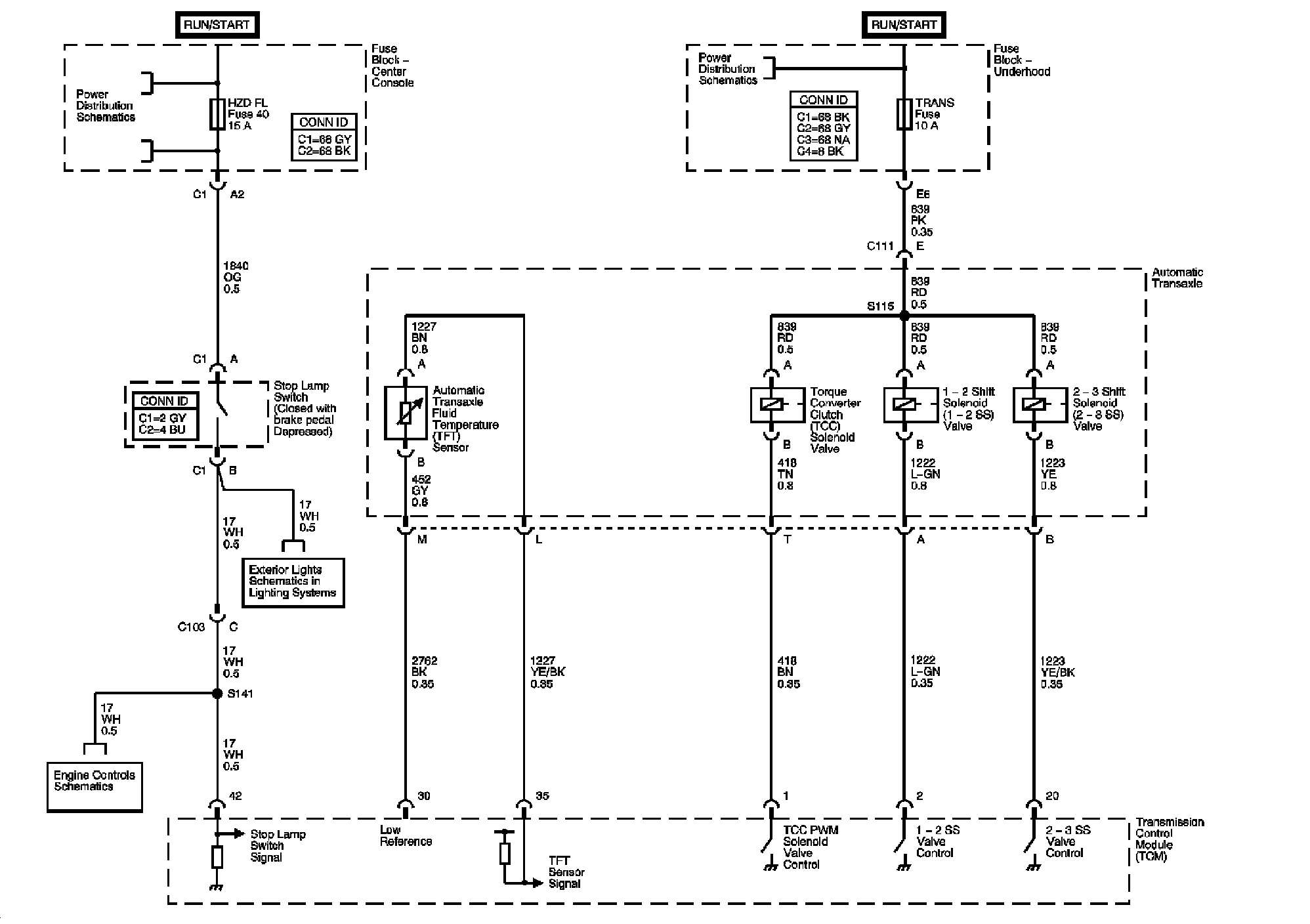

Stop Lamp Switch, Trans Fluid Temperature Sensor, TCC Valve and Shift Solenoids- LY7

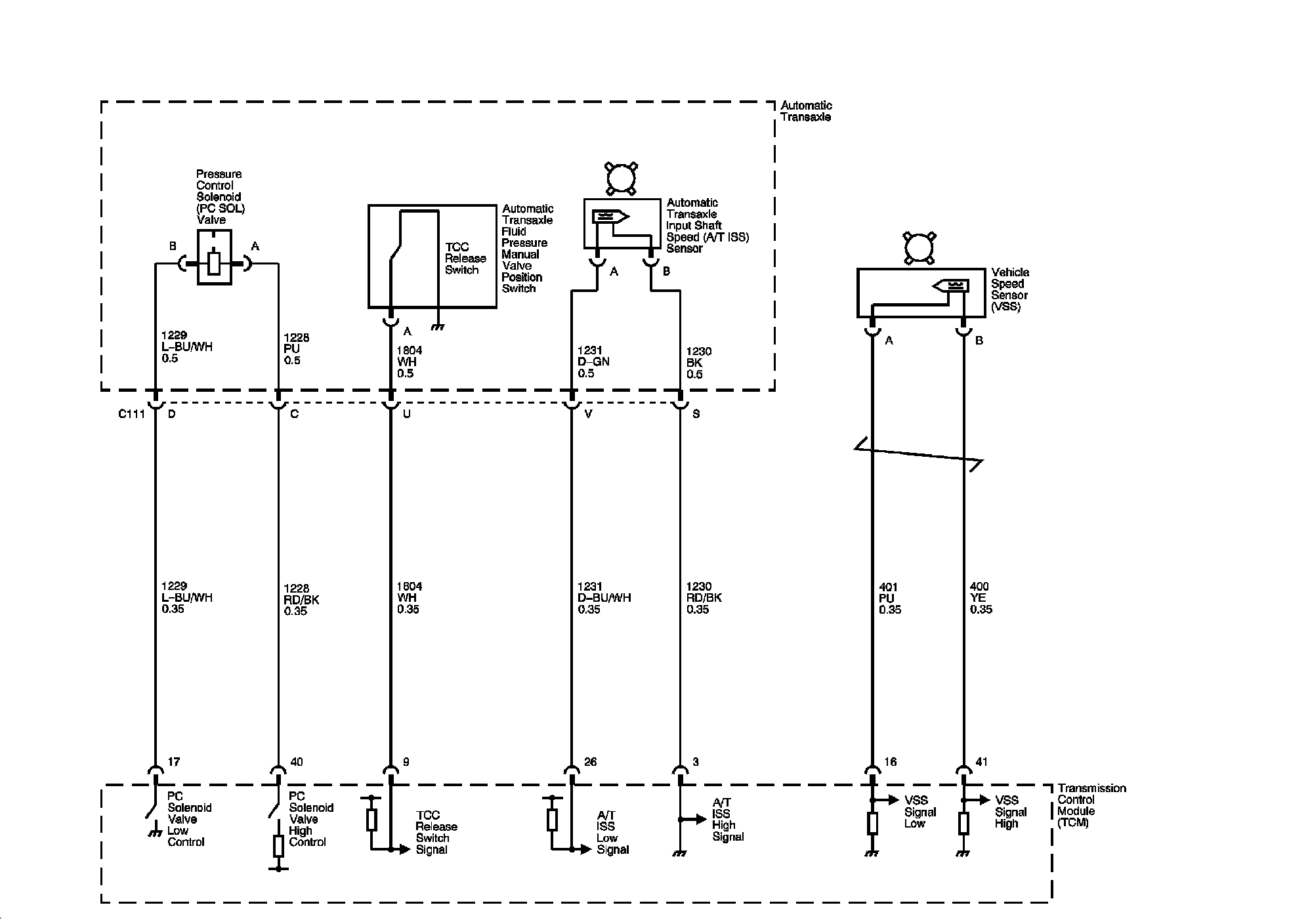

Pressure Control Solenoid, TCC Release Switch, Input Shaft Speed Sensor and Vehicle Speed Sensor- LY7





Transmission Internal Range Switch - LY7
